Hikvision DS-2XS3Q47G1-LDH/4G/C18S40

Artikul: HC-DS-2XS3Q47G1-LDH/4G/C18S40

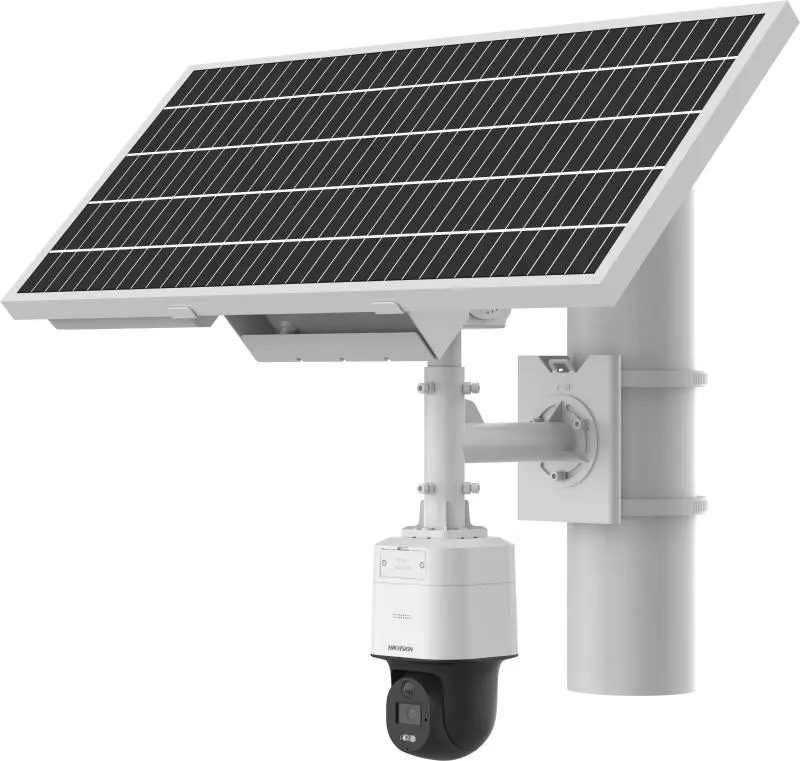

Hikvision DS-2XS3Q47G1-LDH/4G/C18S40 — 4MP ColorVu günəş enerjili-powered Security PT kamera Setup

Image Sensor: 1/3″ Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: 24/7 color imaging
Angle Adjustment: Solar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 340°, tilt: -5° to 105°
Lens Type: Fixed focal lens, 4 and 6 mm optional
Iris Type: Fixed

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor1/3″ Progressive Scan CMOS
Max. Resolution2688 × 1520
Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time1/3 s to 1/100,000 s
Day & Night24/7 color imaging
Angle AdjustmentSolar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 340°, tilt: -5° to 105°

Lens
Lens TypeFixed focal lens, 4 and 6 mm optional
Iris TypeFixed
ApertureF1.0
Depth of Field4 mm: 2.7 m to ∞
6 mm: 5.9 m to ∞
Focal Length & FOV4 mm, Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°
6 mm, Horizontal FOV: 49°, Vertical FOV: 27°, Diagonal FOV: 57°
Lens MountM12

O2DCPVS
DORI4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m
6 mm, D: 120 m, O: 47 m, R: 24 m, I: 12 m

Video
Main Stream50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/ H.264
Sub-stream: H.265/H.264/MJPEG
H.264+ and H.265+: main stream supports under performance mode
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region of Interest (ROI)1 fixed region for main stream
Scalable Video Coding (SVC)H.264 and H.265 encoding

Audio
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network
SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
User/HostUp to 32 users
3 user levels: administrator, operator, and user
Network StorageAuto Network Replenishment (ANR)
ClientiVMS-4200,Hik-Connect,Hik-Central
Web BrowserPlug-in required live view: IE 10, IE11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

SNR≥ 52 dB
Wide Dynamic Range (WDR)120 dB
Privacy Mask4 programmable polygon privacy masks
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in eMMC storage, up to 64 GB,
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 50 GB is available for recording.
Built-in MicrophoneYes
Built-in SpeakerYes
Reset KeyYes

Event
Basic Event Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
LinkageUpload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning

General
PowerPower Consumption and Current:
Typical power scenarios: 1.85 W (4G working)
Standby scenarios: 40 mW
Max. power consumption: 6 W
Power Supply:
12 VDC ± 25%
*For debugging only
40 W (deviation: ± 2 W) Solar panels
Power Interface:
Power supply interface: Ø5.5 mm coaxial power plug
Extened solar panel: four-core aviation connector
MaterialCamera: Plastic; Solar panel: Metal
Storage Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,mirror,flash log
Startup and Operating Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
Dimension686.6 mm × 442.6 mm × 760 mm (27.03″ × 17.42″ × 29.9″)
Package Dimension902 mm × 342 mm × 440 mm (35.5″ × 13.5″ × 17.3″)
Approx. 11.70 kg (25.8 lb.)
With Package Weight
Approx. 15.01 kg (33.1 lb.)

Battery
Battery TypeTernary Lithium
Capacity8.4 Ah × 2 packs
Max. Charging Voltage12.6 V
Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F)
Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Battery Voltage 9 V to 12.6 V
Battery LifeMore than 500 cycles
Cycle LifetimePerformance mode: 3.6 days,
Proactive mode: 6 days,
Standby mode: 30 days
Battery WeightApprox. 1400 g (3.1 lb.)

Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
*IC certification is only for the device sold in the North American region. CE and RCM certifications are only for the device sold in the European region.
RFIC ID (RSS-247(BT or 2.4G)),
CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)
*IC certification is only for the device sold in the North American region. CE certification is only for the device sold in the European region.
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1,
*CE and LOA certifications are only for the device sold in the European region.
EnvironmentCE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006,
*CE certification is only for the device sold in the European region.
Protection
IP65: IEC60529-2013
