- System
- MotorBrushless motor
- MCBF≥ 10 million times
- Network
- Wired network10/100 Mbps self-adaptive Ethernet
- Interface
- Network interface1
- Lock control2
- Exit button2
- Alarm output2
- TAMPERN/A
- RS-4854
- RS-2322
- Wiegand2
- Fire alarm input1
- Case input2
- Hardware
- Access controllerSupplied
- SupercapacitorSupplied
- Network switchNot supplied
- Capacity
- Card capacity500,000
- Event capacity500,000
- Function
- Configuration via PC WebSupport
- Configuration via mobile WebSupport
- Audio promptSupport
- Face recognitionOptional
- Communication protocolTCP/IP,ISAPI
- Keypad configurationSupport
- General
- Throughput30 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method. - Lane width550 mm (21.65″)
- Barrier material1.2 mm stainless pipe
- Pedestal materialSUS304 stainless steel 1.5 mm,SUS304 stainless steel 1.2 mm
- Power consumptionStandby: 35 W
Working: 65 W
Peak: 75 W - Working temperature -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity0% to 95% (No condensing)
- Protective levelIPX4
- DimensionsWithout package: 1500 mm × 130 mm × 1002.5 mm (59.1″ × 5.1″ × 39.5″)
With package: 1660 mm × 510 mm × 1305 mm (65.4″ × 20.1″ × 51.4″) - Net:52.22kg(115.13.lb);Gross:65.59kg(144.6.lb)
- Approval CE/CB/RoHS/REACH/WEEE
- Power supply methodPower supply: 100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz, 1.0-1.5A
- Door open duration5 to 60 sec
- Configuration
- Lane width550
- Pedestal length1500 mm
- Module selectionYES
- Pedestal width130 mm
- Wall distance20 mm
- BaseYES
- Barrier materialStainless steel pipe
- Application environmentIndoor and outdoor
- Authentication modeCard;Face;QR code
- Card typeEM;Desfire
- Recommended width550 mm
- Base modelDS-KSM02/G530
- Side pedestalYES
- Side pedestal typeFence (130 mm)

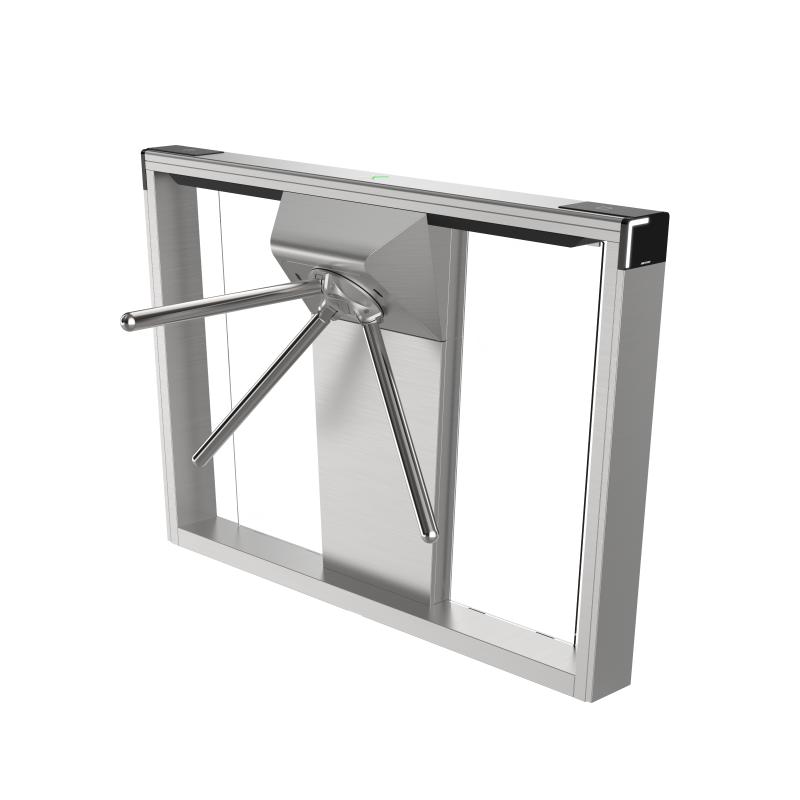

- Product typeTripod Turnstile
- Movement Protrusion Width105 mm
- Convert FaceNO
- Door HeightDefault(0.76m)
- Door wing gap36 mm
