- System
- MotorNA
- MCBF≥ 3 million times
- Network
- Communication protocolISAPI
- Wired network10/100 Mbps self-adaptive Ethernet
- Interface
- Network interface1
- Lock control2
- Exit button2
- Alarm output2
- TAMPERNA
- RS-4854
- RS-2322
- WiegandNA
- Fire alarm input1
- Case input2
- Hardware
- Access controllerSupplied
- Power supply for face recognition moduleSupplied for“Pg”type
- KeyfobNot supplied
Need order separately
- Capacity
- Card capacity500,000
- Event capacity500,000
- Authentication
- Card typeEM/M1/Desfire/Felica
- Function
- Configuration via Web browserSupport
- Configuration via mobile Web browserSupport
- QR code recognitionOptional
- Audio promptSupport
- Keypad configurationSupport
- General
- ThroughputMore than 35 persons per minute
The actual throughput is affected by the person passing rate and passing method. - Lane width550 mm
- Barrier materialSUS304 stainless steel pipe
- Pedestal materialSUS304 stainless steel thickness 1.5 mm(0.06″)
- PowerSwitching power supply: 100 to 240 VAC; 50 to 60 Hz
Power adapter: 100 to 240 VAC; 50 to 60 Hz - Power consumption45W (stand by)
- Working temperatureSwitching power supply: -20 °C to 65 °C (-4 °F to 149 °F)
Power adapter: -10 °C to 45 °C (14 °F to 113 °F) - Working humidity0% to 95% (No condensing)
- Protective levelIPX4
- DimensionsWithout package: 232 mm × 960 mm × 1208 mm (9.1″ × 37.8″ × 47.6″)
With package: 390 mm × 1185 mm × 1320 mm (15.4″ × 46.7″ × 52.0″) - Without package: 45 kg (99.2 lb)
With package: 69 kg (152.1 lb) - ApprovalCE/CE-LVD/CB/RoHS/REACH/WEEE
- Configuration
- Lane width550
- Pedestal length1210 mm
- Module selectionNO
- Pedestal width200 mm
- Wall distance10mm
- BaseYES
- Barrier materialStainless steel pipe
- Application environmentIndoor and outdoor
- Authentication modeCard;Face;QR code
- Card typeEM;M1
- Recommended width550 mm
- Base modelDS-K3G501-BASE
- Side pedestalYES
- Side pedestal typeEmpty (230 mm)/fence (130 mm)

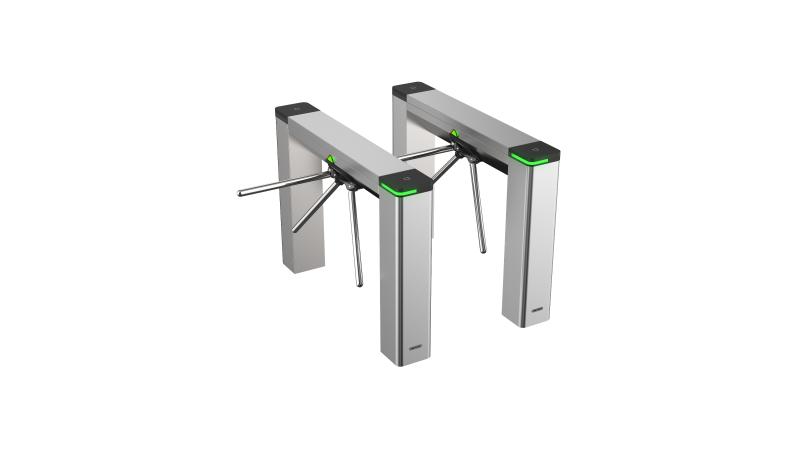

- Product typeTripod Turnstile
- Remote controller type433Mhz;868Mhz
- Movement Protrusion Width29 mm
