- System
- MotorNA
- MCBF≥ 2 million times
- Network
- Wired network10/100 Mbps self-adaptive Ethernet
- Interface
- Network interface1
- Lock control2
- Exit button2
- Alarm output2
- TAMPERNA
- RS-4854
- RS-2322
- Wiegand2
- Fire alarm input1
- Case input2
- Hardware
- Access controllerSupplied
- Capacity
- Card capacity500,000
- Event capacity500,000
- Authentication
- Card TypeEM card or M1 card(actual corresponding card type refer to product model names).
- Function
- Configuration via PC WebSupport
- Configuration via mobile WebSupport
- Audio promptSupport
- Communication protocolTCP/IP
- Keypad configurationSupport
- KeyfobNot support
- General
- Throughput
25 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- Lane width550 mm (21.65″)
- Barrier materialSUS304 stainless pipe
- Pedestal materialSUS304 stainless steel 1.0 mm and SUS304 stainless steel 0.8 mm
- Power consumption
Standby: 35 W
Working: 45 W
Peak: 55 W
- Working temperature -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity0% to 95% (No condensing)
- Protective levelIPX4
- Dimensions
Without package: 1200 mm × 233 mm × 1000 mm (47.2″ × 9.2″ × 39.4″)
With package: 1350 mm × 410 mm × 1120 mm (53.1 × 16.1″ × 44.1″)”
- Net: 30.58 kg (67.41 lb); Gross: 37.8 kg (83.33 lb)
- Approval CE/CB/RoHS/REACH/WEEE
- Power supply methodPower supply: 100 to 240 VAC~, 50/60 Hz, 1A-0.5A
- Configuration
- Lane width550
- Pedestal length1200 mm
- Module selectionYES
- Pedestal width233 mm
- Wall distance40 mm
- BaseYES
- Barrier materialStainless steel pipe
- Application environmentIndoor and outdoor
- Authentication modeCard;Face;QR code
- Card typeEM;M1
- Recommended width550 mm
- Base modelDS-KSM01/G301
- Authentication exclusionaryCard;Face

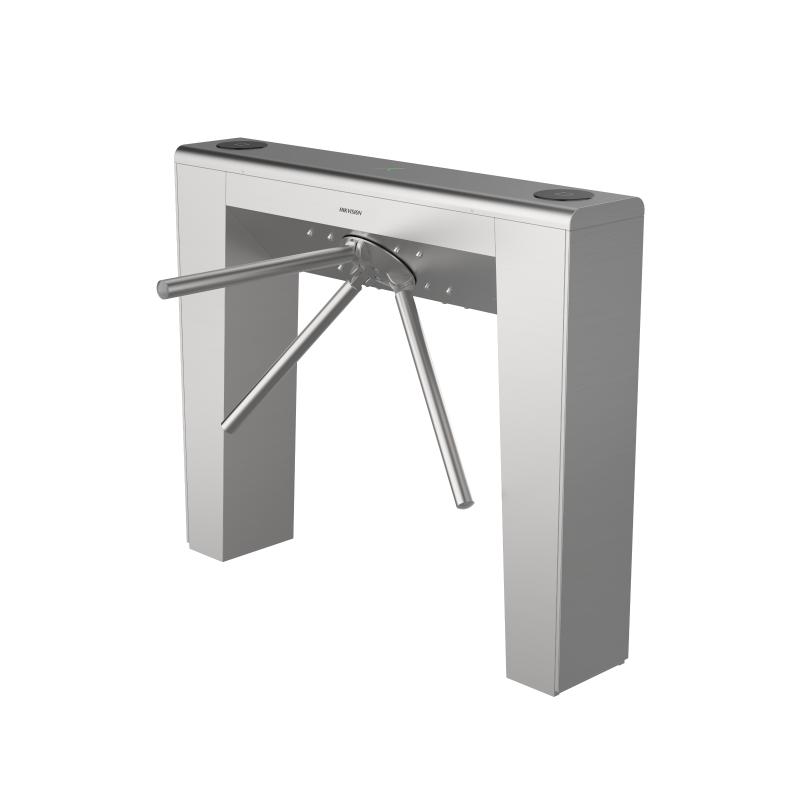

- Product typeTripod Turnstile
