- System
- Motor/
- MCBF≥ 2 million times
- Network
- Wired network10/100 Mbps self-adaptive Ethernet
- Interface
- Network interface1
- Lock control2
- Exit button2
- Alarm output2
- RS-4854
- RS-2322
- Wiegand2
- Fire alarm input1
- Case input2
- Hardware
- Access controllerSupplied
- Capacity
- Card capacity500,000
- Event capacity500,000
- Authentication
- CardEM card or M1 card(actual corresponding card type refer to product model names).
- Function
- Configuration via PC WebSupport
- Configuration via mobile WebSupport
- Audio promptSupport
- Communication protocolISAPI
- Keypad configurationSupport
- KeyfobNot support
- General
- Throughput
30 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- Lane width550 mm (21.65″)
- Barrier material1 mm stainless pipe
- Pedestal materialSUS304 stainless steel 1 mm
- Power consumption
Standby: 20 W
Working: 35 W
Peak: 45 W
- Working temperature -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity0% to 95% (No condensing)
- Protective level/
- Dimensions
Without package: 426 mm × 268 mm × 982.5 mm (16.77″ × 10.55″ × 38.68″)
With package: 700 mm × 430 mm × 1140 mm (27.56 × 16.93″ × 44.88″)”
- Net: 24.26 kg (53.48 lb) Gross: 30.77 kg (67.84 lb)
- Approval CE/CB/RoHS/REACH/WEEE
- Power supply methodPower supply: 100 to 240 VAC~, 50/60 Hz, 1A-0.5A
- LanguageArabic, Indonesian, Japanese, Kazakh, Portuguese (Brazil), Spanish (Mexico), Spanish (Spain), Thai, Russian, English
- Configuration
- Lane width550 mm
- Pedestal length426 mm
- Module selectionYES
- Pedestal width100 mm
- Wall distance20 mm
- BaseNO
- Barrier materialStainless steel pipe
- Application environmentIndoor and outdoor
- Authentication modeCard;Face;QR code
- Card typeEM;M1
- Recommended width550 mm
- Side pedestalYES
- Side pedestal typeFence (130 mm)

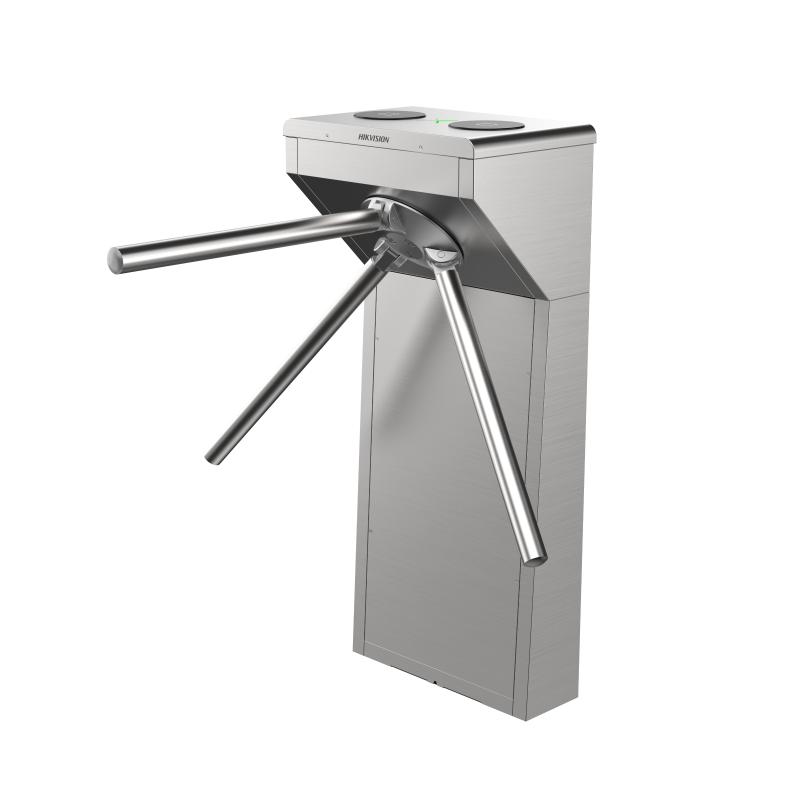

- Product typeTripod Turnstile
- Movement Protrusion Width0 mm
- Convert FaceNO
- Door HeightDefault(0.81m)
- Door wing gap50 mm
