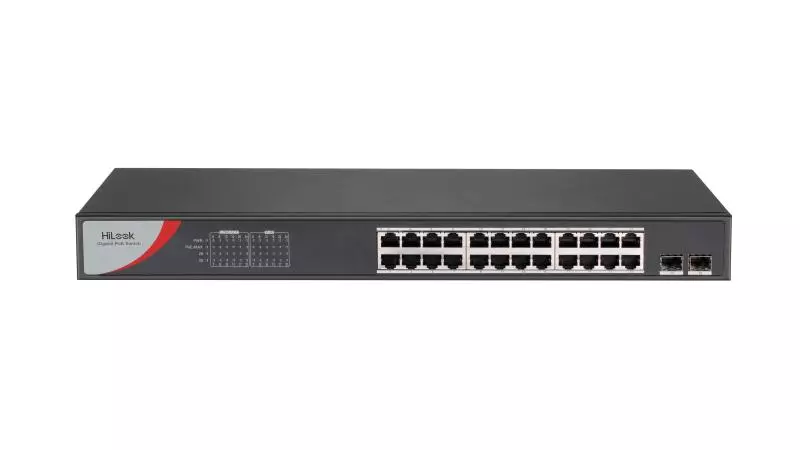

HiLook NS-0526P-225

Shell

Metal material

Net Weight

2.92 kg (6.44 lb)

Gross Weight

4.12 kg (9.08 lb)

Dimensions (W × H × D)

440.00 mm × 44.00 mm × 220.80 mm (17.30» × 1.70» × 8.70»)

Operating Temperature

0 °C to 45 °C (32 °F to 113 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

100-240 VAC, 50/60 Hz, Max. 4 A;

Max. Power Consumption

250 W

Power Consumption in Idle

25 W

Installation Mode

Rack (equipped with mounting ears)

Surge Protection

6 KV

Ports

24 × Gigabit PoE port,2 × Gigabit fiber optical port

MAC Address Table

8 K

Switching Capacity

52 Gbps

Packet Forwarding Rate

38.69 Mpps

Internal Cache

4.1 Mbits

PoE Standard

IEEE 802.3af;IEEE 802.3at;

PoE Power Pin

End-span: 1/2(+), 3/6(-)

PoE Port

PoE: Ports 1 to 24

Max. Port Power

30 W

PoE Power Budget

225 W

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Safety

UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (201165EU); ;WEEE (201219EU); ;Reach (Regulation (EC) No.19072006)
