4-портовый неуправляемый коммутатор Fast Ethernet POE
4-портовый неуправляемый коммутатор Fast Ethernet POE
По запросу
Запрос цены- General
- ShellMetal material
- Net Weight0.25 kg (0.55 lb)
- Gross Weight0.74 kg (1.63 lb)
- Dimensions (W × H × D)121.10 mm × 27.60 mm × 83.10 mm (4.76» × 1.08» × 3.27»)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply54VDC, 0.92A
- Max. Power Consumption50 W
- Power Consumption in Idle5 W
- Installation ModeDesk-Mounted,Wall-Mounted
- Surge Protection6 kV
- Network Parameters

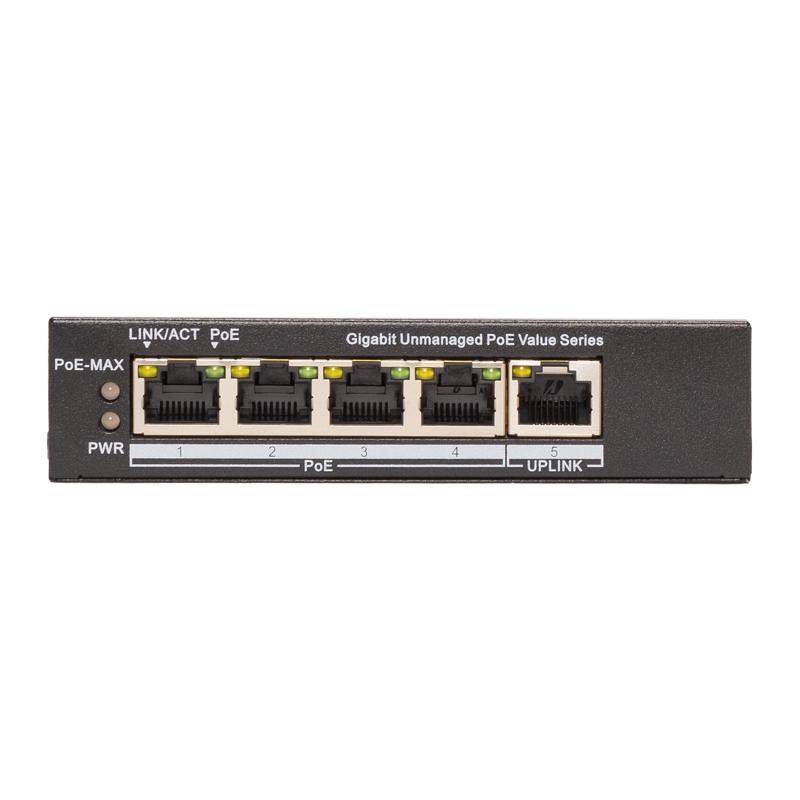

- Ports4 × Gigabit PoE port,1 × Gigabit RJ45 port
- MAC Address Table2 K
- Switching Capacity10 Gbps
- Packet Forwarding Rate7.44 Mpps
- Internal Cache1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af;IEEE 802.3at
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE PortPoE: Ports 1 to 4
- Max. Port Power30 W
- PoE Power Budget45 W
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry
CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
