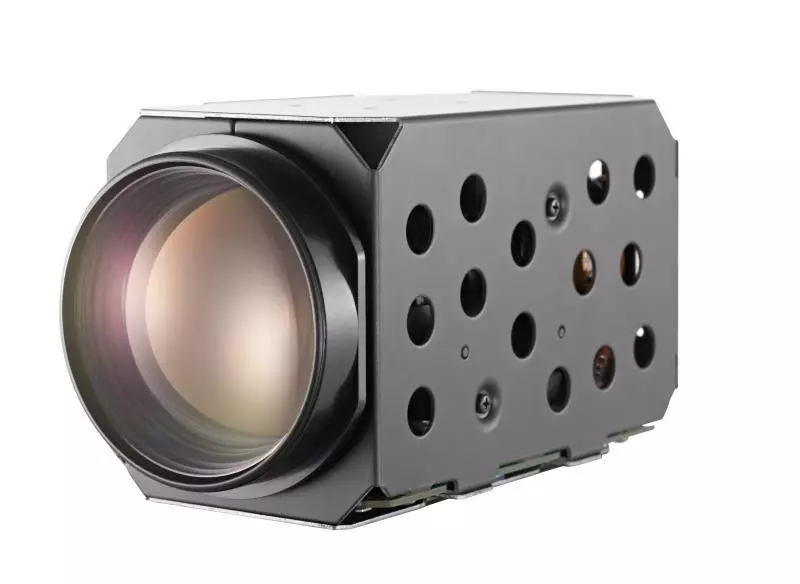

Hikvision iDS-2ZMN2309S(B)

Артикул: HC-iDS-2ZMN2309S(B)

Hikvision iDS-2ZMN2309S(B) — iDS-2ZMN2309S(B)

Heartbeat: yes
Image Sensor: 1/1.8″ progressive scan CMOS
Min. Illumination: Color: 0.005 Lux @ (F1.5, AGC ON); B/W: 0.0005 Lux @(F1.5, AGC ON)
Resolution and Frame Rate: Main Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression: H.264/H.265
Audio Compression: G.722.1, G.711alaw, G.711ulaw, MP2L2, G.726, PCM
White Balance: auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Gain Control: Auto/Manual

После подтверждения наличия
По Азербайджану 1-2 дня

до 36 месяцев
от производителя

Официальный дистрибьютор Hikvision

Помощь в подборе и настройке оборудование

Уточняйте наличие

По запросу

Цена для партнеров

Запросить скидку

Помощь специалиста

Затрудняетесь в выборе оборудования?

Camera Module
Heartbeatyes
Image Sensor1/1.8″ progressive scan CMOS
Min. IlluminationColor: 0.005 Lux @ (F1.5, AGC ON); B/W: 0.0005 Lux @(F1.5, AGC ON)
Resolution and Frame RateMain Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.264/H.265
Audio CompressionG.722.1, G.711alaw, G.711ulaw, MP2L2, G.726, PCM
White Balanceauto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Gain ControlAuto/Manual
SNR>52 dB
3D DNRyes
BLCyes
Regional Focusyes
Shutter1/1 s to 1/30,000 s
Day & NightAuto/Color/BW/Triggered by Alarm Input/Scheduled-Switch
Digital Zoom12 ×
Focusauto, semi-auto, manual
Privacy Maskup to 8 masks
Regional Exposureyes
Video Bit Rate32 kbps to 16384 kbps
Day/Night SwitchICR
Exposure Mode auto, iris priority, shutter priority, manual

Function
Image Enhancement120 dB WDR, HLC, BLC, electronic defog, EIS with built-in gyroscope
Smart Encodinglow bit rate, ROI
Exception Detectionillegal login
Power-off Memoryyes
Smart Detectionintrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Face Captureyes

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, Bonjour
APIOpen-ended API, ONVIF, PSIA, CGI, Hikvision SDK, Third-party management platform, ISUP, Hik-Connect
Web BrowserIE 10-11, Chrome 57+, Firefox 52+, Safari 12+
Simultaneous Live ViewUp to 20 channels
UserUp to 32 users. 3 levels: Administrator, Operator and User
Security MeasuresAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access

Interface
Power Interface12 VDC ± 10%
CommunicationRS232 interface, HIKVISION protocol, RS485 interface, Pelco protocol
Communication Interface10 M/100 M Ethernet interface
Audio I/O1 audio input, 1 audio output
Alarm I/O1 alarm input, 1 alarm output
Video Outputno
SDI Outputno
RS-485yes
On-board StorageMicro SD/Micro SDHC/Micro SDXC card, up to 256 GB
Interface36pin FFC (including network interface, RS485, RS232, SDHC, alarm in/out, line in/out, power supply)

Lens
Focal Length5.9 mm to 135.7 mm, 23 × optical
FOVHorizontal field of view: 59.8° to 3.3°, vertical field of view: 35.2° to 1.8°, diagonal field of view: 67.4° to 3.6°
Zoom SpeedApprox. 4.8 s (Optical, Wide-Tele)
ApertureF1.5 to F3.4
