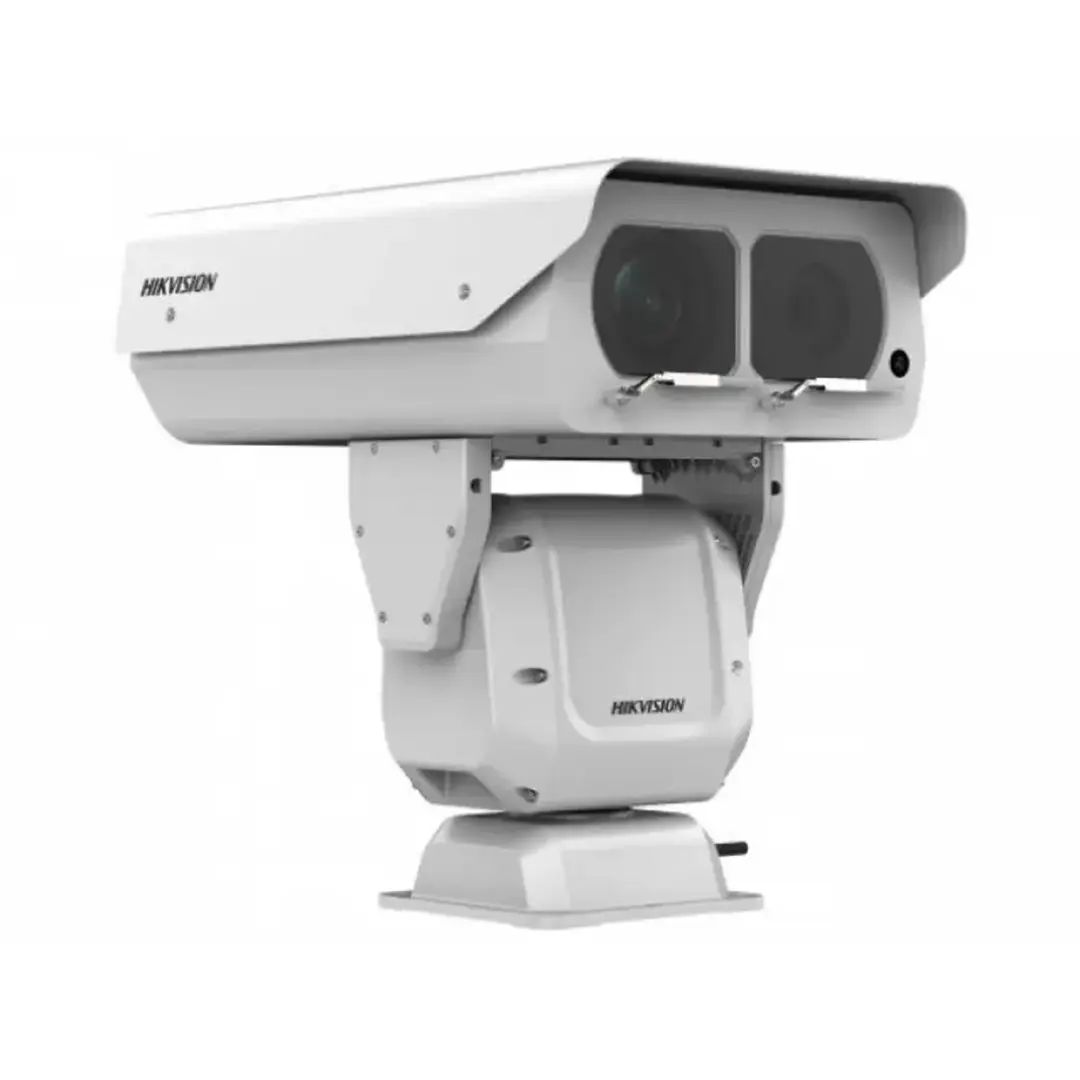

5-дюймовая 2-мегапиксельная ИК-система позиционирования DarkFighter 25X
5-дюймовая 2-мегапиксельная ИК-система позиционирования DarkFighter 25X
По запросу
Запрос цены| Image Sensor | 1/1.8″ progressive scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F3.0，AGC ON); ;B/W: 0.0005 Lux @ (F3.0，AGC ON), 0 Lux with laser |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Focus | semi-auto,manual,auto |
| Day & Night | ICR |
| 3D DNR | yes |
| Defog | yes |
| EIS | yes |
| OIS | yes |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Digital Zoom | 16x |
| Optical Zoom | 10 mm to 1000 mm, 100 × optical |
| Privacy Mask | up to 24 masks;polygon region ;mosaic mask ;mask color configurable |
| Optical Defog | yes |
| Focal Length | 10 mm to 1000 mm, 100 × optical |
| FOV | Horizontal field of view: 31.2° to 0.4° (wide-tele) ;Vertical field of view: 17.8° to 0.2° (wide-tele) ;Diagonal field of view: 35.5° to 0.5° (wide-tele) |
| Aperture | F3.0 to F11.5 |
| Laser Distance | up to 3000 m Laser distance |
| Wavelength | 808 nm |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -45° to 45° (auto flip) |
| Pan Speed | pan speed: configurable from 0.1°～40°/s |
| Tilt Speed | tilt speed: configurable from 0.1°～20°/s |
| Proportional Zoom | yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | yes |
| Park Action | preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Preset Freezing | yes |
| Scheduled Task | preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output |
| Max. Resolution | 1920 × 1080 |
| Stream Type | main stream;sub-stream;third stream |
| Main Stream | 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | H.265;H.264;MJPEG |
| H.264 Type | baseline profile;main profile;high profile |
| Audio Compression | G722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Face Capture | yes |
| Basic Event | motion detection, video tampering alarm, alarm input, alarm output, exception |
| Smart Event | Line Crossing Detection、Region Entrance Detection、Region Exiting Detection、unattended baggage detection、object removal detection、Intrusion Detection |
| Smart Encoding | low bit rate;ROI;SVC |
| Protocols | IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour |
| API | CGI;ISUP;Open Network Video Interface |
| Simultaneous Live View | 20 |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Communication Interface | 1 RJ45 10 M/100 M Ethernet Interface |
| On-board Storage | Built-in microSD slot;support microSD/microSDHC/microSDXC cards, up to 256 GB |
| Alarm Input | 7 alarm inputs |
| Alarm Output | 2 alarm output |
| Audio Input | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% |
| Audio Output | 1 audio output, line level, impedance: 600 Ω |
| RS-485 | Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Power | DC48V,6.67 A, 320 W max |
| Operating Conditions | Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95% |
| Wiper | Yes. Rain-sensing auto control |
| Dimensions | 662 mm × 449 mm × 620 mm (26.06″ × 17.68″ × 24.41″) |
| Weight | 50 kg (110.25 lb.) |
| Web Client Language | English |
| Protection | IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
