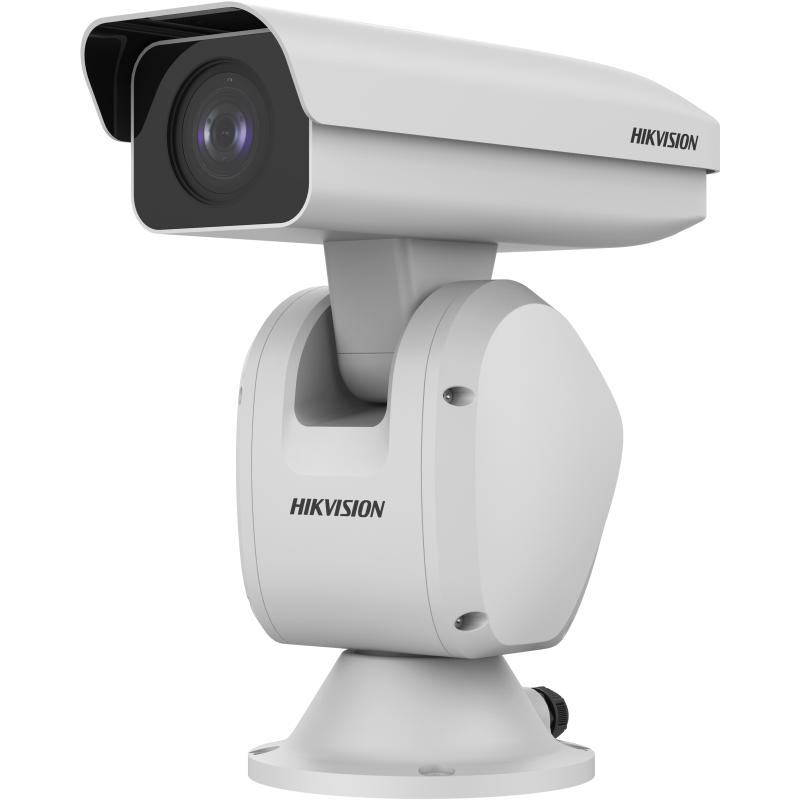

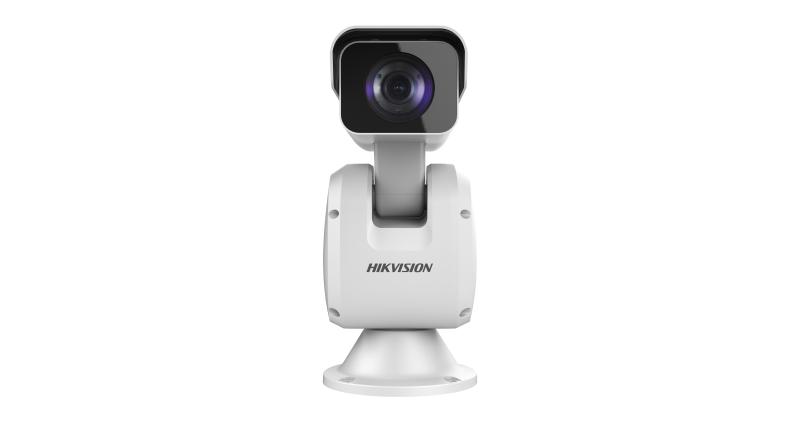

5-дюймовая 2-мегапиксельная ИК-система позиционирования DarkFighter 25X
5-дюймовая 2-мегапиксельная ИК-система позиционирования DarkFighter 25X
По запросу
Запрос ценыImage Sensor | 1/1.8″ progressive scan CMOS |
Max. Resolution | 1920 × 1080 |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON)，0 Lux with IR |
Shutter Speed | 1/1s~1/30000 s |
Day & Night | Day, Night, Auto, Schedule |
Zoom | 36 × optical, 16 × digital |
Slow Shutter | yes |
Focal Length | 4.6~165.6 mm，36 × optical |
FOV | Horizontal field of view: 55° to 2.0° (Wide-Tele) |
Focus | Auto/Semi-automatic/Manual |
Aperture | F1.6 |
Zoom Speed | approx. 4.8 s |
Supplement Light Type | IR |
Supplement Light Range | 150 m |
Smart Supplement Light | yes |
Movement Range (Pan) | 360° endless |
Movement Range (Tilt) | From +40° to -90° (auto flip) |
Pan Speed | Configurable, from 0.1°/s to 100°/s, ;Preset speed: 100°/s |
Tilt Speed | Configurable, from 0.1°/s to 50°/s;Preset Speed: 100°/s |
Proportional Pan | yes |
Presets | 300 |
Preset Freezing | yes |
Patrol Scan | 8 patrols, up to 32 presets for each patrol |
Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
3D Positioning | yes |
PTZ Status Display | yes |
Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
Power-off Memory | yes |
Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG;Third Stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 16384 Kbps |
H.264 Type | Baseline Profile/Main Profile/High Profile |
H.265 Type | Main Profile |
Scalable Video Coding (SVC) | Support |
Region of Interest (ROI) | 8 fixed regions for each stream |
Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2,PCM |
Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2) |
Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
Environment Noise Filtering | yes |
Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
Simultaneous Live View | Up to 20 channels |
API | Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
User/Host | Up to 32 users, 3 user levels: administrator, operator, and user |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
Client | iVMS-4200, HikCentral Pro, Hik-Connect |
Web Browser | IE11, Chrome 57+, Firefox 52+, Safari 11+ |
Image Parameters Switch | yes |
Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
Day/Night Switch | auto |
Wide Dynamic Range (WDR) | 120 dB WDR |
SNR | ≥52dB |
Defog | Digital Defog |
Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
Ethernet Interface | 1 RJ45 10 M/100 M Ethernet |
On-board Storage | support microSD/microSDHC/microSDXC cards, up to 256 GB |
Audio | 1-ch audio input and 1-ch audio output |
Alarm | 7-ch alarm input and 2-ch alarm output |
RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
Basic Event | Motion detection, video tampering alarm, exception, alarm input and output |
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
Linkage | Manual tracking, Event tracking |
Smart Tracking | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
Face Capture | Support detecting up to 10 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face. |
Power | 24 VAC (Max. 55 W) |
Dimension | Φ181 mm × 396 mm × 377.5 mm (Φ 7.13″ × 15.59″ × 14.86″) |
Weight | 7.6 kg (16.76 lb.) |
Operating Condition | Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F),Humidity: ≤ 90% |
General Function | Anti-flicker, heartbeat, mirror, flash log, password reset via e-mail, pixel counter, password protection, one-key reset, three streams |
Protection | IP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
