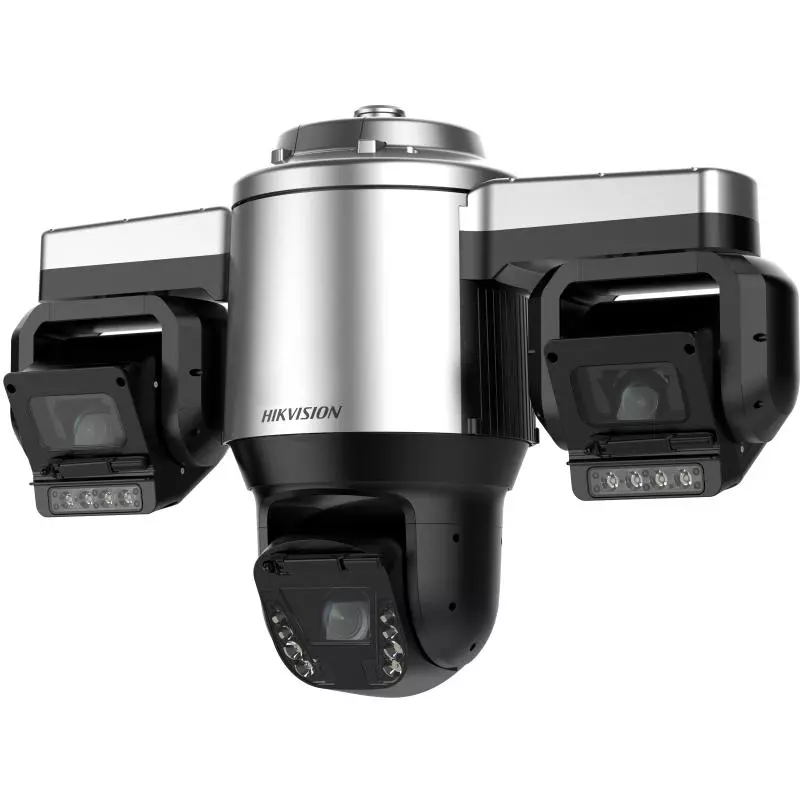

5-дюймовая 2-мегапиксельная ИК-система позиционирования DarkFighter 25X
5-дюймовая 2-мегапиксельная ИК-система позиционирования DarkFighter 25X
По запросу
Запрос цены- Camera
- Image Sensor[PTZ channel 2/3]1/1.8″ Progressive Scan CMOS, [PTZ channel 1] 1/1.8″ Progressive Scan CMOS
- Min. Illumination[PTZ channel 2/3]Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 Lux with light,
[PTZ channel 1] Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR - Shutter Speed1/25 s to 1/30000 s
- Slow ShutterYes
- Day & Night[PTZ channel 2/3]Auto,Night,Schedule,Day, [PTZ channel 1] Auto,Night,Schedule,Day
- Zoom[PTZ channel 2/3]25 × optical, 16 × digital, [PTZ channel 1] 40 × optical, 16 × digital
- Lens
- FOV[PTZ channel 2/3]
horizontal field of view: 58.8° to 3.1°, vertical field of view: 34.4° to 1.7°, diagonal field of view: 66° to 3.5°,
[PTZ channel 1]
horizontal field of view: 59.1° to 2°, vertical field of view: 34.1° to 1.1°, diagonal field of view: 67.1° to 2.3° - FocusAuto,semi-auto,manual,rapid focus
- Focal Length[PTZ channel 2/3]6 to 150 mm, [PTZ channel 1] 6 to 240 mm
- Aperture[PTZ channel 2/3]F1.5, [PTZ channel 1] F1.2
- Illuminator
- Supplement Light Range[PTZ channel 2/3]IR up to 150 m
[PTZ channel 1] white light: up to 80 m; IR up to 350 m - Smart Supplement LightYes
- PTZ
- Movement Range (Pan)[Base] 0° to 280° ,（Max.5000cycles）,[PTZ channel 2/3]0° to 360°, [PTZ channel 1] 0° to 360°
- Movement Range (Tilt)[PTZ channel 2/3]-33° to 90°, [PTZ channel 1] -20° to 90°
- Pan Speed[PTZ channel 2/3]pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s,[PTZ channel 1] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
- Tilt Speed[PTZ channel 2/3]tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[PTZ channel 1] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Proportional PanYes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off MemoryYes
- Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Preset FreezingYes
- Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
- Video
- Main Stream[PTZ channel 2/3]50Hz:25fps (2688×1520,2560×1440,1920×1080,1280×960,1280×720) 60Hz:30fps （2688×1520，2560×1440,1920×1080,1280×960,1280×720)
[PTZ channel 1] 50Hz:25fps (2688×1520,2560×1440,1920×1080,1280×960,1280×720) 60Hz:30fps （2688×1520，2560×1440,1920×1080,1280×960,1280×720) - Sub-Stream[PTZ channel 1] 50 Hz: 25 fps (704×576,640×480,352×288), 60 Hz: 30 fps (704×480,640×480,352×240),[PTZ channel 2/3]50 Hz: 25 fps (1200 × 536、960×432), 60 Hz: 30 fps (1200 × 536、960×432)
- Third Stream[PTZ channel 1] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),[PTZ channel 2/3]No
- Video CompressionMain stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG - Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline profile,Main profile,High profile
- H.265 TypeMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
- Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
- Network
- APIISAPI,SDK,ISUP
- Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
- ProtocolsRTP,IGMP,IPv4,UDP,SFTP,RTCP,WebSocket,SSL/TLS,ICMP,HTTPS,QoS,HTTP,SMTP,SNMP,RTSP,NTP,FTP,DDNS,TCP/IP,DNS,802.1X,IPv6,DHCP,PPPoE,UPnP,WebSockets
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 user levels: administrator, operator, and user
- SecurityPassword protection,complicated password,HTTPS encryption,IP address filter,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
- ClientiVMS-4200,HikCentral Pro,Hik-Connect
- Web BrowserPlug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+
- Image
- Wide Dynamic Range (WDR)120 dB
- Day/Night SwitchDay,night,auto,schedule
- Image EnhancementHLC,3D DNR
- Privacy Mask[PTZ channel 2/3]8 programmable polygon privacy masks, [PTZ channel 1] 24 programmable polygon privacy masks; mask color or mosaic configurable
- DefogOptical defog
- Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
- Regional ExposureYes
- Regional Focus[PTZ channel 2/3]No, [PTZ channel 1] Yes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Image Parameters SwitchYes
- SNR≥ 52 dB
- Supplement Detection
- Satellite PositioningNo
- GyroscopeYes
- CompassNo
- Interface
- Fiber Optical1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance
- Ethernet Interface1 RJ45 1000M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Alarm7 input(s), 2 output(s)
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω - RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- ResetYes
- Large Models
- Intelligent Transportation SystemRoad incident detection: Support road incident detection for highways and elevated roads: fallen object detection, pedestrian detection
- Event
- Basic Event[PTZ channel 1 & PTZ channel 2/3] alarm input and output, exception,[PTZ channel 1] motion detection, video tampering alarm
- LinkageUpload to FTP/NAS/memory card,send email,trigger alarm output,trigger recording,audible warning,notify surveillance center,and PTZ actions (such as preset)
- Deep Learning Function
- Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection, loitering detection, people gathering detection, fast moving detection, parking detectionSupport alarm triggering by specified target types (human and vehicle)
- MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection
- Intelligent Transportation SystemTraffic Violation Evidence Collection: illegal parking, reverse driving, over lane line detection, continuous lane change, motor vehicle on non-motor vehicle lane, U-turn, slalom driving, illegal lane change, and queue jumping.
Traffic Data Collection: Traffic Flow.
Road incident detection: (1) Road incident detection for highways and elevated roads: fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection, fog detection, smoke detection, and fire detection; (2) Road incident detection for urban roads: congestion detection, roadblock detection, construction detection, traffic accident detection, fog detection, smoke detection, and fire detection
Supports general highway incident detection：supports pothole detection, crack detection, and alligator cracking detection - AcuSeekSupport search for humans, vehicles, non-motorized vehicles, and animals (large animals (cattles, horses, sheep, pigs), small animals (cats, dogs), poultry (chicken, ducks, geese)). This function requires use with AcuSeek NVR/Servers.
- Multi-Target-Type Detection[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle,Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle,Supports dynamic mosaic mask
- Linkage and Tracking
- Smart TrackingManual tracking, auto-tracking
- Smart Linkagemanual tracking, tracking takeover, linked tracking capture, track in turn, panorama linkage
- Object TrackingSupport person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
- General
- General Functionmirror,password protection
- Power36 VDC± 25%, Max. 120 W, including max. 22.6 W for IR and max. 13W for heater
- Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
- WiperYes
- DemistYes
- MaterialADC12
- Dimension779 mm × 277 mm × 523 mm (31″ × 11″ × 21″)
- Approx. 20.8 kg (45.76 lb.)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)
- SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
- EnvironmentCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002, excluding glass window)
