Hikvision DS-2SK6C425MWG1/LM-L/28(C4C4)

Артикул: HC-DS-2SK6C425MWG1/LM-L/28(C4C4)

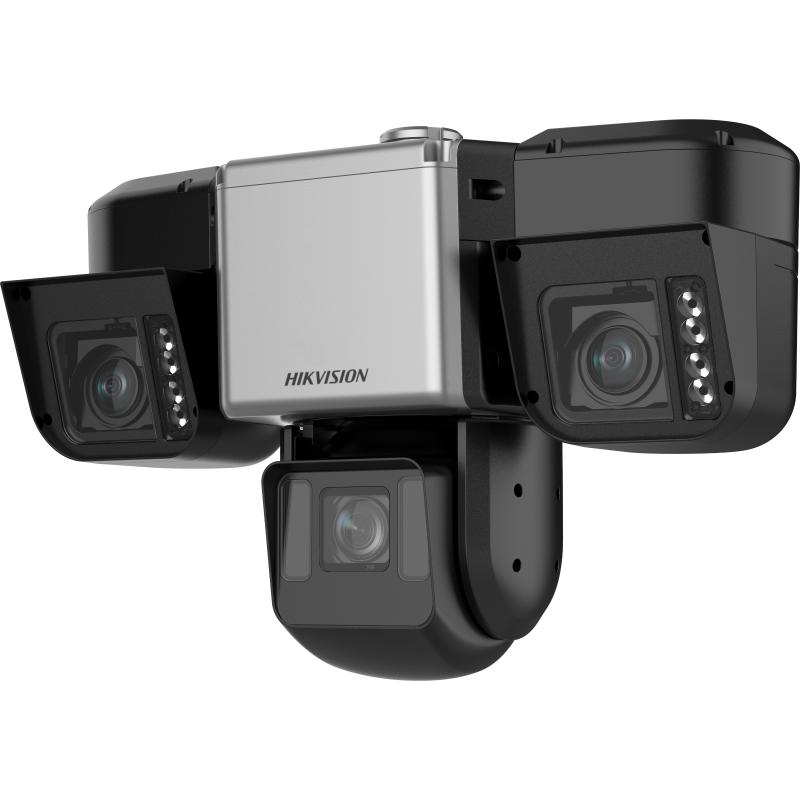

Hikvision DS-2SK6C425MWG1/LM-L/28(C4C4) — DeepinViewX Omni PTZ 6C серия 4 MP 25X Powered by DarkFighter IP скоростная поворотная камера

Image Sensor: [Panoramic channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/2.8″ Progressive Scan CMOS
Min. Illumination: [Panoramic channel] Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 Lux with light, [PTZ channel] Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 lux with IR
Shutter Speed: 1 s to 1/30000 s
Slow Shutter: Yes
Day & Night: [Panoramic channel] No, [PTZ channel] Auto,Night,Schedule,Day
Zoom: [Panoramic channel] 4 × optical, 16 × digital, [PTZ channel] 25 × optical, 16 × digital
FOV: [Panoramic channel] horizontal field of view: 40.3° to 14.5°, vertical field of view: 22.1° to 8.2°, diagonal field of view: 46.9° to 16.5°, [PTZ channel] horizontal field of view: 57.7° to 2.9°, vertical field of view: 33.2° to 1.6°, diagonal field of view: 65.2° to 3.3°
Focus: Auto,semi-auto,manual

Быстрая доставка

После подтверждения наличия
По Азербайджану 1-2 дня

Официальная гарантия

до 36 месяцев
от производителя

100% оригинал

Официальный дистрибьютор Hikvision

Тех. поддержка

Помощь в подборе и настройке оборудование

Уточняйте наличие

По запросу

Купить в рассрочку

Цена для партнеров

Запросить скидку

Помощь специалиста

Сравнить

Затрудняетесь в выборе оборудования?

Camera
Image Sensor[Panoramic channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/2.8″ Progressive Scan CMOS
Min. Illumination[Panoramic channel] Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 Lux with light,
[PTZ channel] Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 lux with IR
Shutter Speed1 s to 1/30000 s
Slow ShutterYes
Day & Night[Panoramic channel] No, [PTZ channel] Auto,Night,Schedule,Day
Zoom[Panoramic channel] 4 × optical, 16 × digital, [PTZ channel] 25 × optical, 16 × digital

Lens
FOV[Panoramic channel]
horizontal field of view: 40.3° to 14.5°, vertical field of view: 22.1° to 8.2°, diagonal field of view: 46.9° to 16.5°,
[PTZ channel]
horizontal field of view: 57.7° to 2.9°, vertical field of view: 33.2° to 1.6°, diagonal field of view: 65.2° to 3.3°
FocusAuto,semi-auto,manual
Focal Length[Panoramic channel] 8 to 32 mm, [PTZ channel] 5.3 to 110 mm
Aperture[Panoramic channel] F1.6, [PTZ channel] F1.6

Illuminator
Supplement Light Range[Panoramic channel] white light: up to 15 m; IR up to 80 m
[PTZ channel] white light: up to 20 m; IR up to 200 m
Smart Supplement LightYes

PTZ
Movement Range (Pan)[Panoramic channel] 0° to 190°，（Max.500cycles）[PTZ channel] 0° to 360°
Movement Range (Tilt)[Panoramic channel] -5° to 30° ，（Max.500cycles）[PTZ channel] -10° to 180°
Pan Speed[Panoramic channel] pan speed: configurable from 0.1° to 20°/s, preset speed: 20°/s,[PTZ channel] pan speed: configurable from 0.1° to 210°/s, preset speed: 280°/s
Tilt Speed[Panoramic channel] tilt speed: configurable from 0.1° to 20°/s, preset speed 20°/s,[PTZ channel] tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Proportional Pan[Panoramic channel] No, [PTZ channel] Yes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off MemoryYes
Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes
Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

Video
Main Stream[Panoramic channel] 50Hz:25fps (2688×1520,2560×1440,1920×1080,1280×960,1280×720) 60Hz:30fps （2688×1520，2560×1440,1920×1080,1280×960,1280×720)
[PTZ channel] 50Hz:25fps (2688×1520,2560×1440,1920×1080,1280×960,1280×720) 60Hz:30fps （2688×1520，2560×1440,1920×1080,1280×960,1280×720)
Sub-Stream[PTZ channel] 50 Hz: 25 fps (704×576,640×480,352×288), 60 Hz: 30 fps (704×480,640×480,352×240),[Panoramic channel] 50 Hz: 25 fps (1200 × 536、960×432), 60 Hz: 30 fps (1200 × 536、960×432)
Third Stream[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),[Panoramic channel] No
Video CompressionMain stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile,Main profile,High profile
H.265 TypeMain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding

Audio
Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz

Network
APIISAPI,SDK,ISUP
Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 user levels: administrator, operator, and user
SecurityPassword protection,complicated password,HTTPS encryption,IP address filter,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
ClientiVMS-4200,HikCentral Pro,Hik-Connect
Web BrowserPlug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+

Wide Dynamic Range (WDR)120 dB
Day/Night SwitchDay,night,auto,schedule
Image EnhancementHLC,3D DNR
Privacy Mask[Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
DefogOptical defog
Image StabilizationEIS
Regional ExposureYes
Regional Focus[Panoramic channel] No, [PTZ channel] Yes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters SwitchYes
SNR≥ 52 dB

Supplement Detection
Satellite PositioningNo
GyroscopeYes
CompassNo

Interface
Ethernet Interface1 RJ45 100M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB .
Alarm7 input(s), 2 output(s)
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ResetYes

Large Models
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting
Supports alarm triggering by specified target types (human and vehicle)
Supports combined event alarm triggering
Perimeter Protection
Dedicated Large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras

Event
Basic Event[PTZ channel & panoramic channel] alarm input and output, exception,[PTZ channel] motion detection, video tampering alarm
Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,loitering detection,people gathering detection,fast moving detection,parking detection
LinkageUpload to FTP/NAS/memory card,white light flashing,send email,notify surveillance center,audible warning,trigger alarm output

Deep Learning Function
Intelligent Transportation SystemTraffic Violation Evidence Collection: illegal parking, reverse driving, over lane line detection, continuous lane change, motor vehicle on non-motor vehicle lane, U-turn, slalom driving, illegal lane change, and queue jumping.
Traffic Data Collection: Traffic Flow.
Road incident detection: (1) Road incident detection for highways and elevated roads: fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection, fog detection, smoke detection, and fire detection; (2) Road incident detection for urban roads: congestion detection, roadblock detection, construction detection, traffic accident detection, fog detection, smoke detection, and fire detection
Supports general highway incident detection：supports pothole detection, crack detection, and alligator cracking detection
AcuSeekThis function requires use with AcuSeek NVR/Servers
Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle

Linkage and Tracking
Smart TrackingManual tracking, auto-tracking
Smart LinkageManual tracking, tracking takeover, linked tracking capture, track in turn, panorama linkage

General
General Functionmirror,password protection
Power36 VDC± 25%, max. 90 W (Max. 75 W, including max. 18 W for IR and max. 6W for heater)
Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
WiperNo
DemistYes
MaterialADC12
DimensionØ429 mm × 300 mm (Ø16.89″ × 11.81″)
Approx. 7.9 kg (17.38 lb.)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)
SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
EnvironmentCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002, excluding glass window)
