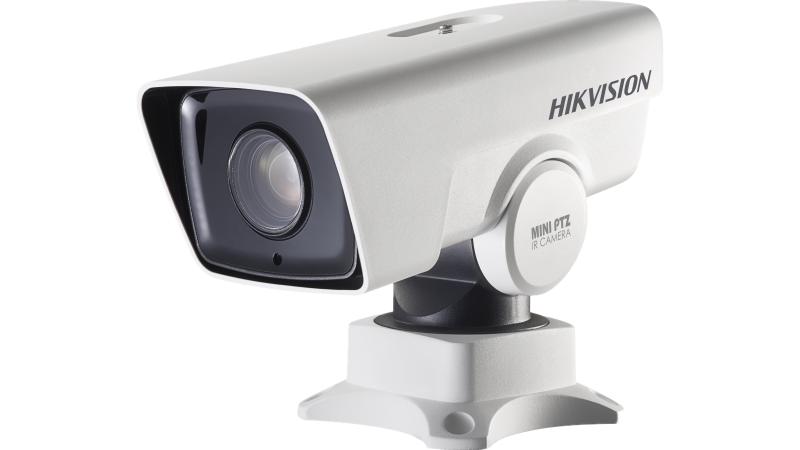

Hikvision DS-2DY3420IW-DE4(S6)

Артикул: HC-DS-2DY3420IW-DE4(S6)

Hikvision DS-2DY3420IW-DE4(S6) — 3-inch 4 MP 20X Powered by DarkFighter IR Network Positioning System

Image Sensor: 1/2.8″ progressive scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed: 1/1 s to 1/30,000 s
Day & Night: IR cut filter
Zoom: 20x optical, 16x digital
Focal Length: 4.7 mm to 94 mm
FOV: Horizontal FOV 53.3° to 2.6°, vertical FOV 30.6° to 1.5°, diagonal FOV 60.5° to 3°

После подтверждения наличия
По Азербайджану 1-2 дня

до 36 месяцев
от производителя

Официальный дистрибьютор Hikvision

Помощь в подборе и настройке оборудование

Уточняйте наличие

По запросу

Цена для партнеров

Запросить скидку

Помощь специалиста

Затрудняетесь в выборе оборудования?

Camera
Image Sensor1/2.8″ progressive scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/1 s to 1/30,000 s
Day & NightIR cut filter
Zoom20x optical, 16x digital

Lens
Focal Length4.7 mm to 94 mm
FOVHorizontal FOV 53.3° to 2.6°, vertical FOV 30.6° to 1.5°, diagonal FOV 60.5° to 3°
FocusAuto, semi-auto, manual
ApertureMax. F1.6
Zoom SpeedApprox. 3.2 s (Optical Lens, Wide-Tele)

PTZ
Movement Range (Pan)360° endless
Movement Range (Tilt)From -40° to 30°
Pan SpeedConfigurable, from 0.5°/s to 60°/s. Preset speed: 60°/s
Tilt SpeedConfigurable, from 0.5°/s to 50°/s. Preset speed: 50°/s
Proportional PanYes
Presets300
Preset FreezingYes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Park ActionPreset/Pattern Scan/Patrol Scan
PTZ Status DisplayYes
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Dome Reboot/Dome Adjust/Aux Output
Power-off MemoryYes

Video
Main Stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720, 1280 × 960);
60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720, 1280 × 960)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/HostUp to 32 users; 3 levels: Administrator, Operator and User
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network StorageNAS (NFS, SMB/CIFS), ANR
ClientiVMS-4200, HikCentral Pro, Hik-Connect
Web BrowserIE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+

Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Wide Dynamic Range (WDR)120 dB
DefogDigital defog
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask24 programmable polygon privacy masks, mask color configurable
Regional FocusYes
Regional ExposureYes

Interface
Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3at, class4)
On-board StorageBuilt-in memory card slot, support MicroSD/SDHC/SDXC, up to 256 GB
Audio1 input, 1 output
Alarm1 input, 1 output

Event
Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output
Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording,audible warning, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

General
Power12 VDC, 2 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4
Max. 19 W, including max. 9.2 W for IR
Dimension255 mm × 129 mm × 195 mm (10.04″ × 5.08″ × 7.68″)
Approx. 3 kg (6.61 lb)
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Language33 languages.
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
