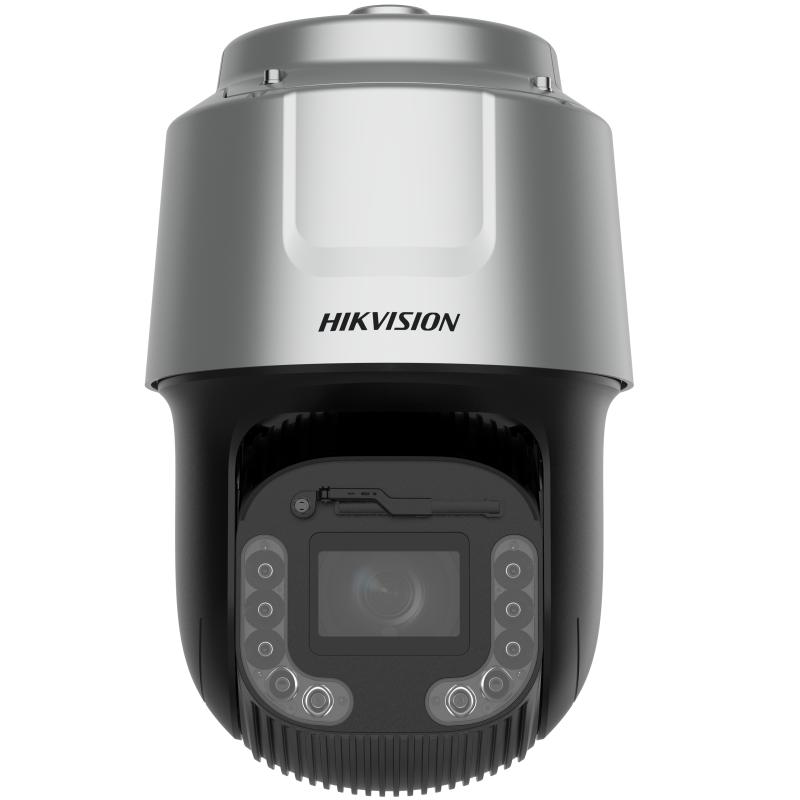

5-дюймовая 2-мегапиксельная ИК-система позиционирования DarkFighter 25X
5-дюймовая 2-мегапиксельная ИК-система позиционирования DarkFighter 25X
По запросу
Запрос цены- Camera
- Image SensorTwo sensors, 1/1.8″ progressive scan CMOS
- Min. IlluminationColor: 0.0004 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed1/30s~1/30000 s
- Slow ShutterYes
- Day & NightIR cut filter
- Zoom35x optical, 16x digital
- Max. Resolution2688 × 1520
- Lens
- FocusAuto/manual/semi — auto
- Focal Length5.9mm to 206.5 mm, 35× Optical
- Zoom SpeedApprox. 4.3 s
- FOV
Horizontal field of view: 60.2° to 2.24°(wide-tele),
vertical field of view: 36° to 1.26°(wide-tele),
diagonal field of view: 68° to 2.56°(wide-tele)
- ApertureMax. F1.6
- Illuminator
- Supplement Light TypeHybrid
- Supplement Light Rangeup to 300 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360°，Smart Pan-Tilt Correction
- Movement Range (Tilt)-20° to 90° (auto flip)，Smart Pan-Tilt Correction
- Pan SpeedPan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
- Proportional PanYes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off MemoryYes
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Preset FreezingYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Video
- Main Stream
50 Hz：50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz：60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
*High frame rate is supported under monitoring mode only.
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps~16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Target CroppingNo
- Audio
- Audio CompressionG.711/MP3/MP2L2/G.722.1/G.726/AAC-LC/PCM
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/8~320 Kbps(MP3)/32~192 Kbps(MP2L2)/16 Kbps(G.722.1)/16 Kbps(G.726)/16~64 Kbps(AAC-LC)
- Audio Sampling RateMP2L2: 16kHz, 32kHz, 48kHzAAC-LC: 16kHz, 32kHz, 48kHzPCM: 8kHz, 16kHz, 32kHz, 48kHzMP3: 8kHz, 16KHz, 32KHz, 48KHz
- Environment Noise FilteringYes
- Network
- Smooth StreamingYes
- SecurityPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
- Network StorageNAS (NFS, SMB/ CIFS), ANR
- ProtocolsUDP,IPv6,IPv4,ICMP,TCP/IP,DNS,DHCP,IGMP,RTP,RTSP,NTP,QoS,HTTP,802.1X,SSL/TLS,HTTPS,DDNS,FTP,SNMP,WebSockets,RTCP,WebSocket,SFTP,PPPoE,SMTP,UPnP
- APIISAPI,EZVIZ,Open Network Video Interface,ISUP,OTAP,SDK
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 levels: Administrator, Operator and User
- ClientHikCentral, iVMS-4200, Hik-Connect
- Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night SwitchSchedule,Night,Day,Auto
- Image EnhancementBLC, HLC, 3D DNR
- Wide Dynamic Range (WDR)150 dB WDR
- DefogDigital Defog
- Image StabilizationYes. Built-in gyroscope to improve EIS performance.
- Regional ExposureYes
- Regional FocusYes
- Privacy MaskUp to 24 masks, polygon region, mosaic mask, mask color configurable
- SNR≥ 52 dB
- Supplement Detection
- GyroscopeYes
- Satellite PositioningNo
- CompassNo
- Interface
- ResetYes
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 1 TB
- Alarm7 inputs, 2 outputs
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Video Output1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
- RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Event
- Basic Eventalarm input and output,Motion detection,exception(HDD full,HDD error,network disconnected,IP address conflict,illegal login,abnormal restart), video tampering alarm
- Linkageaudible warning,trigger alarm output,trigger recording,notify surveillance center,send email,Upload to FTP/NAS/memory card
- Deep Learning Function
- Intelligent Transportation System
Traffic Violation Evidence Collection: illegal parking, reverse driving, over lane line detection, continuous lane change, motor vehicle on non-motor vehicle lane, U-turn, slalom driving, illegal lane change, and queue jumping.
Traffic Data Collection: Traffic Flow.
Road incident detection: (1) Road incident detection for highways and elevated roads: fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection, fog detection, smoke detection, and fire detection; (2) Road incident detection for urban roads: congestion detection, roadblock detection, construction detection, traffic accident detection, fog detection, smoke detection, and fire detection
Supports general highway incident detection：supports pothole detection, crack detection, and alligator cracking detection
- General
- Vandal-proof AlarmNo
- HeaterYes
- WiperYes
- De-icingNo
- DemistYes
- General FunctionIP address filter,mirror,password reset via email,third stream
- Power
36 VDC± 25%, max. 90 W (Max. 50 W, including max. 15 W for IR and max. 6 W for heater)
PoE 802.3bt, type4, class7, max. 75W (Max. 50 W, including max. 15 W for IR and max. 6 W for heater)
- Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
- DimensionØ267 mm × 431 mm (Ø10.5″ × 16.9″)
- Approx. 10 kg (22.05 lb.)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
- Safety
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017),
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- Anti-Corrosion ProtectionNEMA 4X
- ProtectionIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
