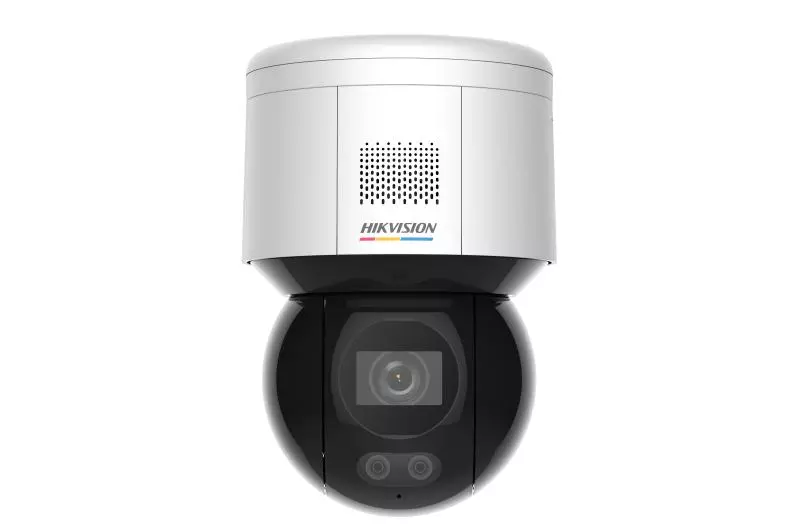

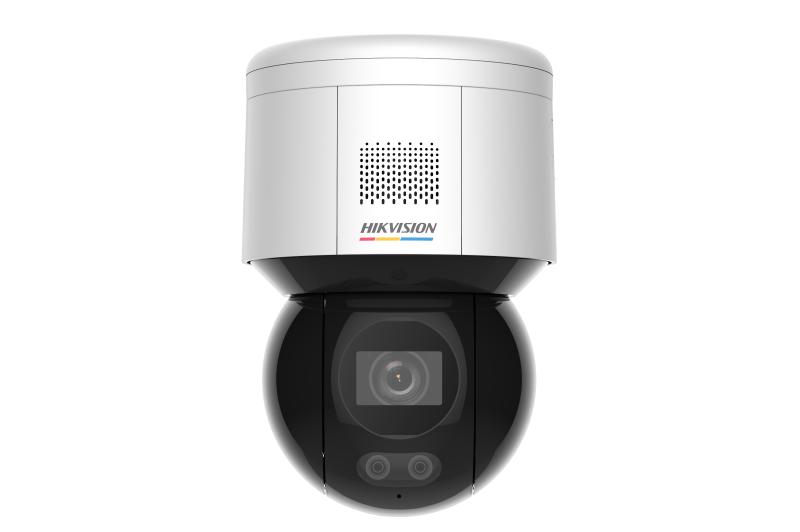

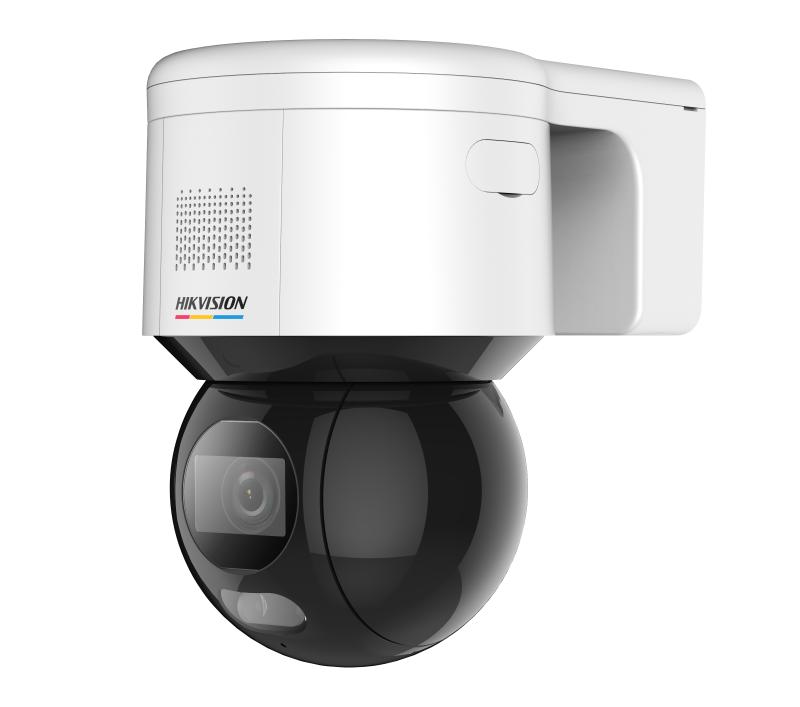

4-мегапиксельная купольная сетевая камера Mini PT с 4-кратным зумом и ИК-подсветкой
4-мегапиксельная купольная сетевая камера Mini PT с 4-кратным зумом и ИК-подсветкой
По запросу
Запрос ценыImage Sensor | 1/1.8″ progressive scan CMOS |
Max. Resolution | 2560 × 1440 |
Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light |
Shutter Speed | 1/1 to 1/30,000 s |
Day & Night | 24/7 colorful imaging |
Zoom | 16x digital |
Focal Length | 4 mm |
FOV | Horizontal field of view: 88.7° ;Vertical field of view: 46.5°;Diagonal field of view: 105.0° |
Aperture | F1.0 |
Supplement Light Type | White Light |
Supplement Light Range | White Light Distance: up to 30 m |
Movement Range (Pan) | 350° |
Movement Range (Tilt) | 0° to 90° |
Pan Speed | Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s |
Tilt Speed | Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s |
Proportional Pan | Yes |
Presets | 300 |
Preset Freezing | Yes |
Park Action | Preset, patrol scan |
3D Positioning | Yes |
Scheduled Task | Preset, patrol scan, dome reboot, dome adjust, aux output |
Power-off Memory | Yes |
Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);;60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);;60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
Third Stream | 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);;60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
Video Compression | Main stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264/MJPEG |
Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Region of Interest (ROI) | 8 fixed regions for each stream |
Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
Environment Noise Filtering | Yes |
Protocols | IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
Simultaneous Live View | Up to 20 channels |
API | ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP |
User/Host | Up to 32 users. 3 user levels, administrator, operator and user |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
Network Storage | NAS (NFS, SMB/ CIFS) |
Client | iVMS-4200,Hik-Connect,*Wi-Fi connection with Hik-Connect directly is not possible |
Web Browser | IE 10+, Chrome 57+, Firefox 52+, Safari 12+ |
Encryption Mode | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
Wi-Fi Protocols | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz -2.4835 GHz |
Channel Bandwidth | 20/40 MHz |
Modulation | 802.11b: CCK, DQPSK, DBPSK;802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK;802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK |
Transfer Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps |
Wireless Range | Up to 50 m |
Image Parameters Switch | Yes |
Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
Day/Night Switch | Day, night, auto, scheduled-switch |
Wide Dynamic Range (WDR) | 120 dB WDR |
SNR | ＞ 52 dB |
Defog | Digital defog |
Image Enhancement | BLC, HLC, 3D DNR |
Privacy Mask | Up to 24 masks (8 masks for each scene) |
Regional Exposure | Yes |
Ethernet Interface | 1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at) |
On-board Storage | Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB |
Built-in Speaker | 1 built-in speaker |
Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
Alarm | 1 input, 1 output |
RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
Reset | Yes |
Power Output | 12 VDC; < 60 mA |
Basic Event | Video tampering alarm, motion detection, alarm input, alarm output, exception |
Smart Event | Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection |
Linkage | Preset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing |
Perimeter Protection | Line crossing, intrusion, region entrance, region exiting;Support alarm triggering by specified target types (human and vehicle) |
Face Capture | Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture |
Power | 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A ;Max. 16 W (including max. 4 W for white light) |
Dimension | 179.3 mm × 120 mm × 182 mm (7.06″ × 4.72″ × 7.71″) |
Weight | Approx. 1.125 kg (2.48 lb.) |
Operating Condition | Humidity: ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F) |
General Function | Mirror, password protection, watermark, IP address filter |
Demist | Yes |
Protection | IP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection |
