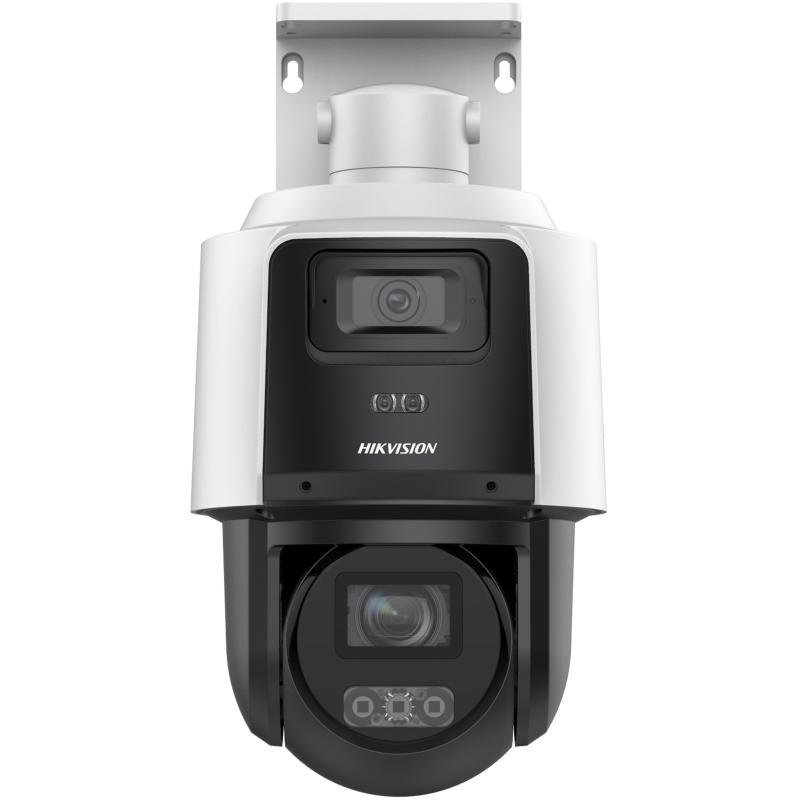

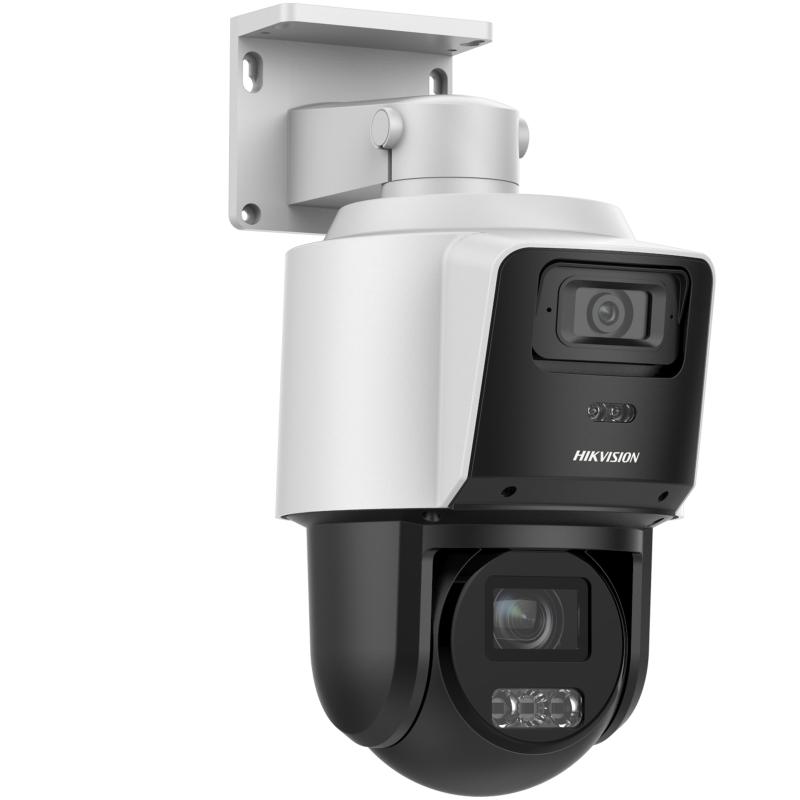

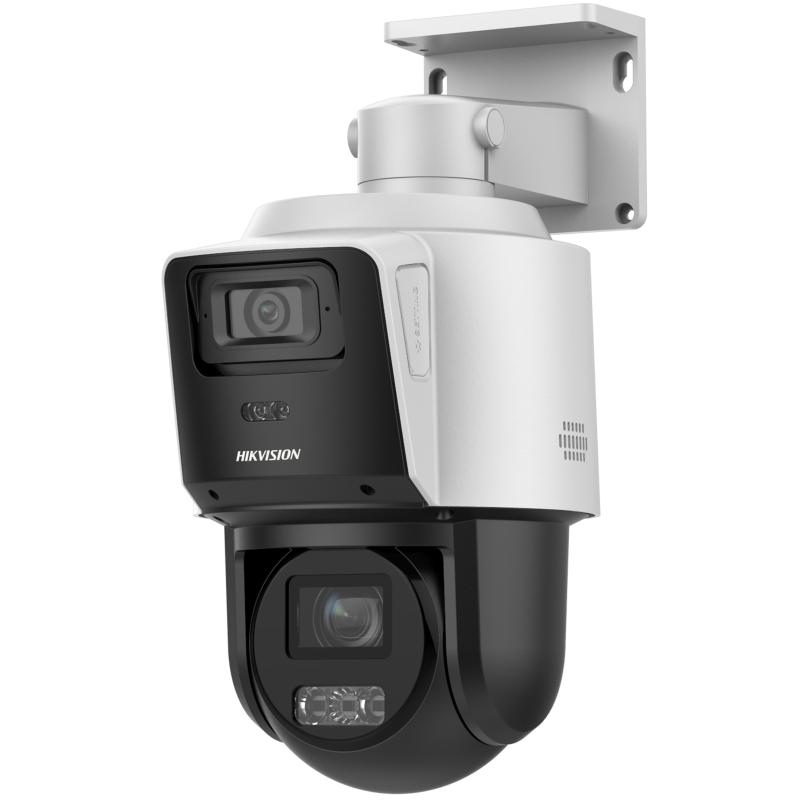

Hikvision DS-2SE3C404MWG-E/14

Image Sensor

[Bullet channel]: 1/2.8″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS

Min. Illumination

[Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON)，B/W: 0.005 Lux @ (F1.6，AGC ON), 0 Lux with IR;;[PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON), 0 Lux with IR

Shutter Speed

1 s to 1/30,000 s

Slow Shutter

yes

Day & Night

ICR

Zoom

[PTZ channel] 4 × optical, 16 × digital

Max. Resolution

[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

Focus

auto,manual,semi-auto

Focal Length

[Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical

Zoom Speed

[PTZ channel]: approx. 3.3 s

FOV

[Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 130.7°, [PTZ channel] horizontal field of view: 98° to 34.2°, vertical field of view: 52° to 19.2°, diagonal field of view: 111° to 39°

Aperture

[Bullet channel]: F1.6; [PTZ channel]: F1.5 to F2.9

Supplement Light Type

[Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR

Smart Supplement Light

Yes

Supplement Light Range

[PTZ channel]: IR Distance: up to 40 m;;[Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m

Movement Range (Pan)

0° to 350°

Movement Range (Tilt)

[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90°

Pan Speed

pan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s

Tilt Speed

tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s

Proportional Pan

yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Power-off Memory

yes

Park Action

preset,patrol scan

3D Positioning

yes

PTZ Status Display

yes

Preset Freezing

yes

Scheduled Task

dome reboot,preset,patrol scan,dome adjust,aux output

Region of Interest (ROI)

1 fixed regions for main stream

Main Stream

[Bullet channel]: ;50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720);[PTZ channel]: ;50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

[Bullet channel]: ;50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360);[PTZ channel]:;50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

[Bullet channel]: ;50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360);60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360);[PTZ channel]: ;50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360);60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360)

Video Compression

H.265,H.264,MJPEG

Video Bit Rate

32 kbps to 16384 kbps

H.264 Type

main profile,baseline profile,high profile

H.265 Type

main profile

Scalable Video Coding (SVC)

yes

Audio Compression

G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC

Audio Bit Rate

MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps

Audio Sampling Rate

MP2L2: 16 kHz,AAC-LC: 16 kHz,PCM: 8 kHz, 16 kHz,MP3: 8 kHz, 16 kHz

Environment Noise Filtering

yes

API

ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

Network Storage

NAS (NFS, SMB/ CIFS),ANR, ANR

Protocols

TCP/IP,SMTP,RTSP,FTP,WebSockets,IGMP,WebSocket,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP

Simultaneous Live View

20

User/Host

32

Security

802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption

Client

iVMS-4200,Hik-Connect

Web Browser

IE8+, Chrome31 to 44, Firefox 30 to 51, Safari8.0+

Image Settings

sharpness, saturation, brightness, contrast

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Defog

Digital defog

Day/Night Switch

day, night, auto, scheduled-switch

Image Enhancement

BLC,HLC,3D DNR

Privacy Mask

[Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks

Regional Focus

[Bullet channel] No, [PTZ channel] Yes

Regional Exposure

[Bullet channel] No, [PTZ channel] Yes

Image Parameters Switch

Yes

Ethernet Interface

RJ45, self-adaptive 10M/100M Ethernet port

On-board Storage

Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB

Reset

yes

Basic Event

Motion detection,video tampering alarm,exception,alarm input and output

Smart Event

Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection

Linkage

[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

General Function

mirror,watermark,IP address filter,password protection

Power

12 VDC, PoE+

Operating Condition

-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)

Demist

Demist by heating the glass

Material

PC

Dimension

311.5 mm × 223.5 mm × 156 mm (12.26″ × 8.80″ × 6.14″)

Weight

Approx. 1.37 kg (3.02 lb.)

Protection

IP66 Standard, Surge Protection and Voltage Transient Protection
