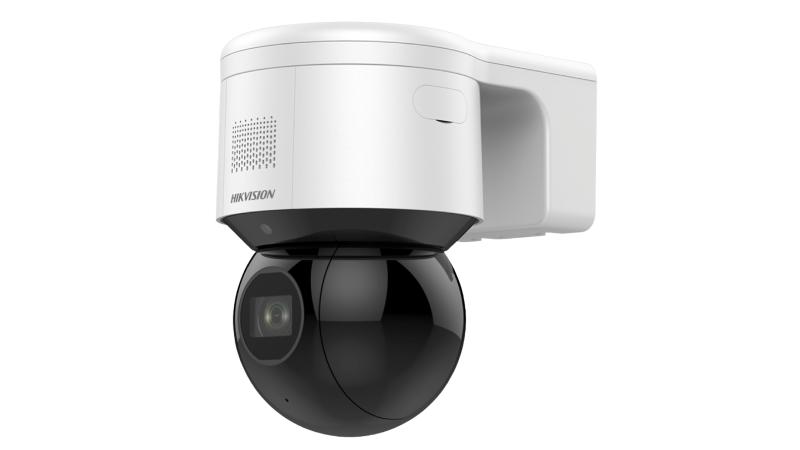

Hikvision DS-2DE3A404IWG-E

Image Sensor

1/2.8″ progressive scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR

Shutter Speed

1 to 1/30,000 s

Day & Night

IR cut filter

Zoom

4 × optical, 16 × digital

Focal Length

2.8 to 12 mm

FOV

Horizontal field of view: 96.7° to 31.6° (wide-tele) ;Vertical field of view: 51.1° to 17.7° (wide-tele);Diagonal field of view: 115.1° to 36.3° (wide-tele)

Focus

Auto, semi-auto, manual

Aperture

Max. F1.5

Zoom Speed

Approx. 2 s (optical lens, wide-tele)

Supplement Light Range

IR distance: up to 50 m, white light distance: up to 6m

Smart Supplement Light

Yes

Movement Range (Pan)

0° to 350°

Movement Range (Tilt)

0° to 90°

Pan Speed

Configurable, from 0.1°/s to 60°/s. Preset speed: 60°/s

Tilt Speed

Configurable, from 0.1°/s to 50°/s. Preset speed: 60°/s

Proportional Pan

Yes

Presets

300

Preset Freezing

Yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Park Action

Preset,Patrol Scan

3D Positioning

Yes

PTZ Status Display

Yes

Scheduled Task

Preset,Patrol Scan,dome reboot, dome adjust, aux output

Power-off Memory

Yes

Main Stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) ;60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264 ;Sub-stream: H.265/H.264/MJPEG ;Third Stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline profile/main profile/high profile

H.265 Type

Main profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)

Protocols

IPv4/IPv6, HTTP, HTTPS, QoS,802.1x, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface, ISAPI, SDK, ISUP

User/Host

Up to 32 users. 3 user levels, administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

iVMS-4200, HikCentral, Hik-Connect;*Wi-Fi connection with Hik-Connect directly is not possible.

Web Browser

IE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Wide Dynamic Range (WDR)

120 dB

Defog

Digital defog

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

24 programmable polygon privacy masks, mask color configurable

Regional Focus

Yes

Regional Exposure

Yes

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Built-in Microphone

1 built-in microphone

Built-in Speaker

1 built-in speaker, 8 Ω, 2 W. Max sound pressure level: 100 dB (10 cm)

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

Alarm

1 input, 1 output

Power Output

12 VDC, max. 60 mA

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output

Smart Event

Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection

Linkage

Preset, Patrol Scan, Upload to FTP/memory card/NAS, notify surveillance center, send email, audible warning，Flashing Alarm

Multi-Target-Type Detection

Supports simultaneous detection and capture of human body, face and vehicle

Power

12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A ;Max. 14 W (including max. 2.4 W for IR, 1.2 W for white light flashing)

Dimension

179.3 mm × 120.5 mm × 182 mm (7.06″ × 4.74″ × 7.17″)

Weight

Approx. 1.125 kg (2.48 lb.)

Material

ADC12 + PC

Operating Condition

-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

Protection

IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
