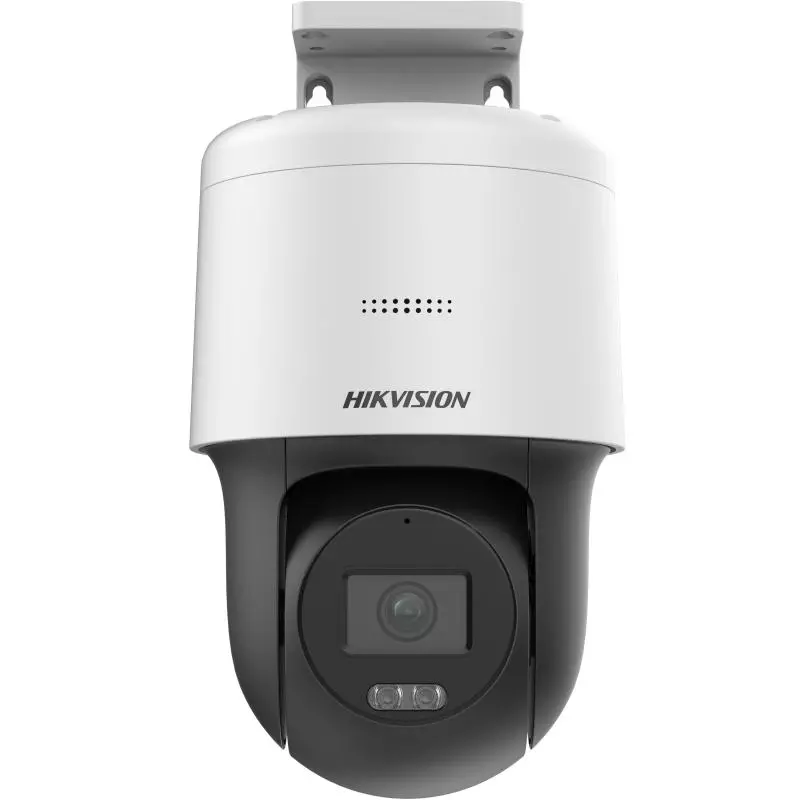

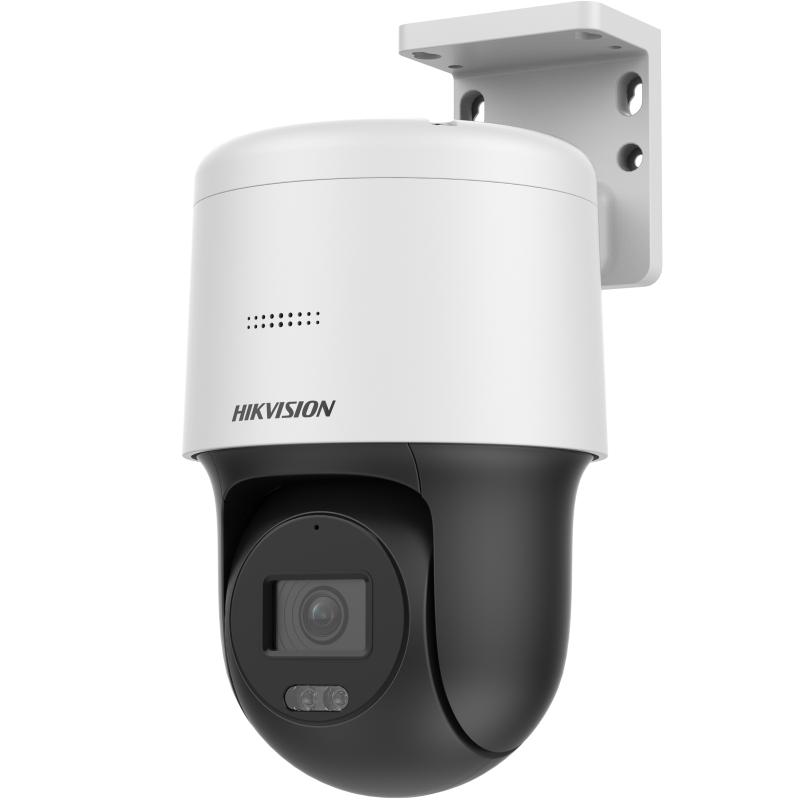

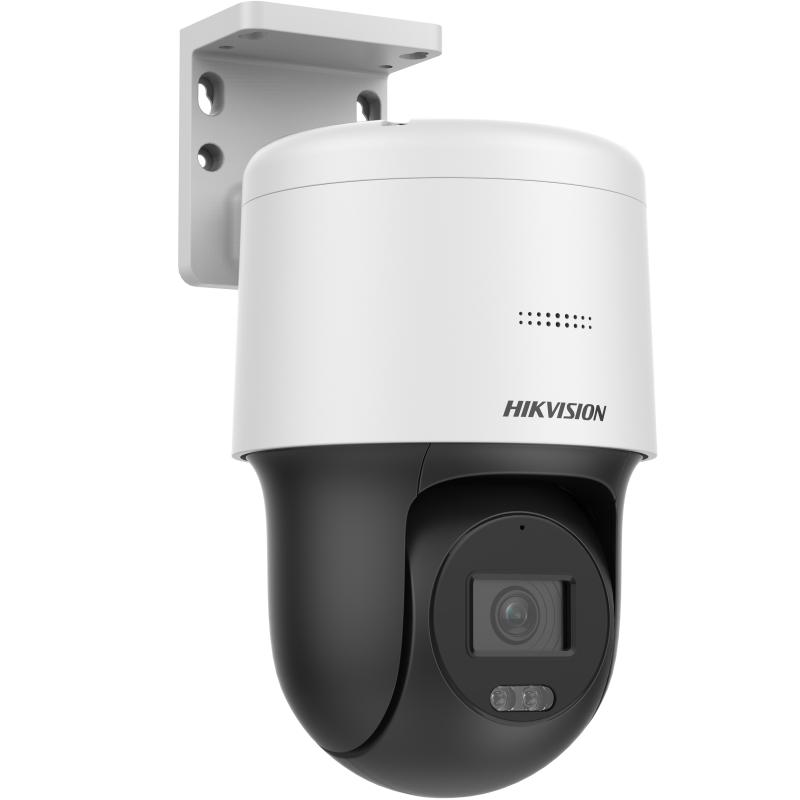

Hikvision DS-2DE2C200MW-DE(S7)

Image Sensor

1/2.7″ Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.01 Lux @(F1.2，AGC ON), B/W: 0 Lux with IR

Focal Length

2.8 mm/4 mm

FOV

2.8 mm, horizontal FOV 111.4°, vertical FOV 59.1°, diagonal FOV 133.6°;4 mm, horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°

Aperture

F1.6

Supplement Light Type

IR & White Light

Supplement Light Range

White Light Distance: up to 30 m;IR Distance: up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Movement Range (Pan)

0° to 340°

Movement Range (Tilt)

-5° to 105°

Pan Speed

Pan speed: configurable from 4° to 21°/s

Tilt Speed

Tilt speed: configurable from 4° to 19°/s

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

Video Compression

H.265, H.264, MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM

Audio Bit Rate

64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)/16-64Kbps(AAC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Protocols

IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour

API

Open Network Video Interface, ISAPI, SDK

Image Settings

Saturation, brightness, contrast, sharpness

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC, HLC, 3D DNR

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

Built-in Microphone

Yes

Built-in Speaker

Yes

Reset

Yes

Basic Event

Motion detection

Linkage

Upload to FTP, notify surveillance center, send email, upload to memory card

Power

12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection;PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, max. 10.8 W

Dimension

Camera dimension: 162 mm × 120 mm × 234.2 mm (6.4″ × 4.7″ × 9.2″»);Package dimension: 205 mm × 167 mm × 289 mm (8.1 × 6.6″» × 11.4″»)»»

Weight

Camera weight: 700 g (1.5 lb.);With package weight: 1250 g (2.8 lb.)

Operating Condition

With supplement light on: -30 ℃ to 40 ℃. Humidity 95% or less (non-condensing);With supplement light off: -30 ℃ to 50 ℃. Humidity 95% or less (non-condensing)

General Function

Mirror
