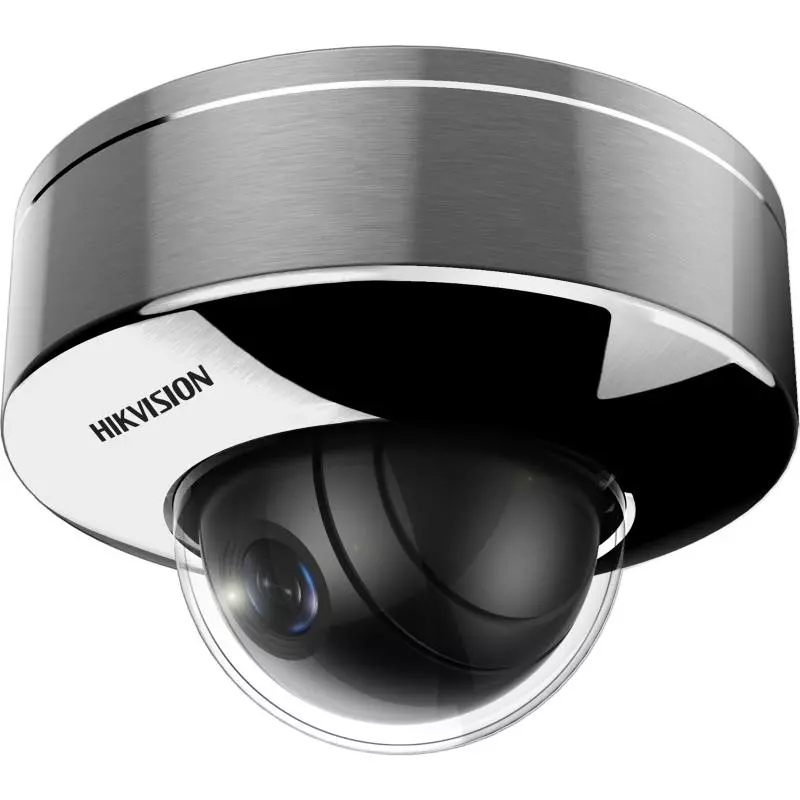

Hikvision DS-2XE6145G0-HS/304

Image Sensor

1/3″ Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.003 Lux @ (F1.0, AGC ON)

Shutter Time

1/3 s to 1/100,000 s

Angle Adjustment

Pan: 0° to 340°, tilt: 0° to 75°

Lens Type

Fixed focal length, 2.8 mm, 4 mm, and 6 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 102.5°, vertical FOV 53.4°, diagonal FOV 118.9°;4 mm, horizontal FOV 80.2°, vertical FOV 40.8°, diagonal FOV 93.4°;6 mm, horizontal FOV 52.5°, vertical FOV 27.4°, diagonal FOV 60.2°

Lens Mount

M12

Aperture

F1.0

DORI

2.8 mm, D: 54.6 m, O: 21.7 m, R: 10.9 m, I: 5.5 m;4 mm, D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m;6 mm, D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

5 fixed regions for each stream

Target Cropping

Yes

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3

Audio Bit Rate

64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 320 Kbps (MP3)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface, ISAPI, ISUP 5.0

User/Host

Up to 32 users;3 levels: administrator, operator and user

Network Storage

NAS (NFS, SMB/CIFS), ANR

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE10, IE11;Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

Image Enhancement

BLC, HLC, 3D DNR, defog

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB;*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

Audio

1 input (line in), 1 output (line out)

Alarm

1 alarm input, 1 alarm output (supports max. 24 VDC, 1 A or 110 VAC, 500 mA)

RS-485

1 RS-485 interface

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection;Scene change detection, unattended baggage detection, object removal detection

Power

12 VDC ± 20%, 0.8 A, max. 10 W, two-core terminal block;PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 12.5 W

Material

SUS 304

Dimension

Ø138 mm × 123.4 mm (Ø5.43″ × 4.86″)

Package Dimension

251 mm × 215 mm × 189 mm (9.88″ × 8.46″ × 7.44″)

Weight

Approx. 2810 g (6.2 lb.)

With Package Weight

Approx. 4040 g (8.9 lb.)

Startup and Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-banding, heartbeat, mirror, privacy mask, password protection, watermark, IP address filter

Heater

Yes

Cable Length

1.3 m (4.27 ft.)

EMC

FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B);CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013);RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015;IC: IC-VoC (ICES-003 Issue 7:2020);KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)

Safety

UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014 ;CB: IEC 62368-1:2014 ;BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015;LOA: SANS IEC60950-1

Environment

CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)

Protection

IP68 (IEC 60529-2013)

Explosion-Proof Protection

ATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68;IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68;For explosive gas atmospheres, the maximum surface temperature is 85°C;;For flammable dust atmospheres, the maximum surface temperature is 80°C;;IIC: for explosive gas atmospheres other than mines susceptible to firedamp;;For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
