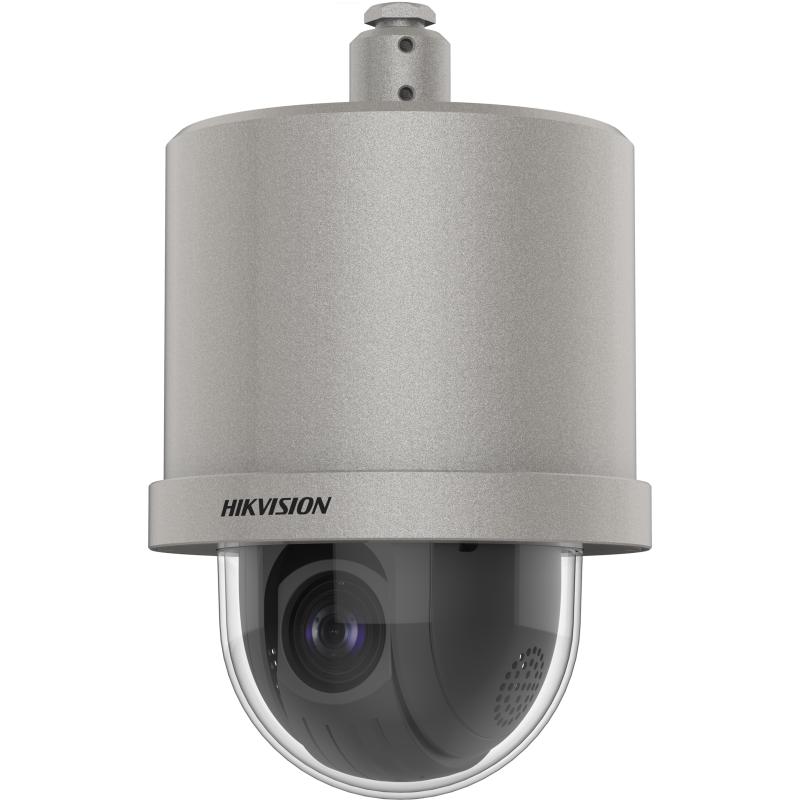

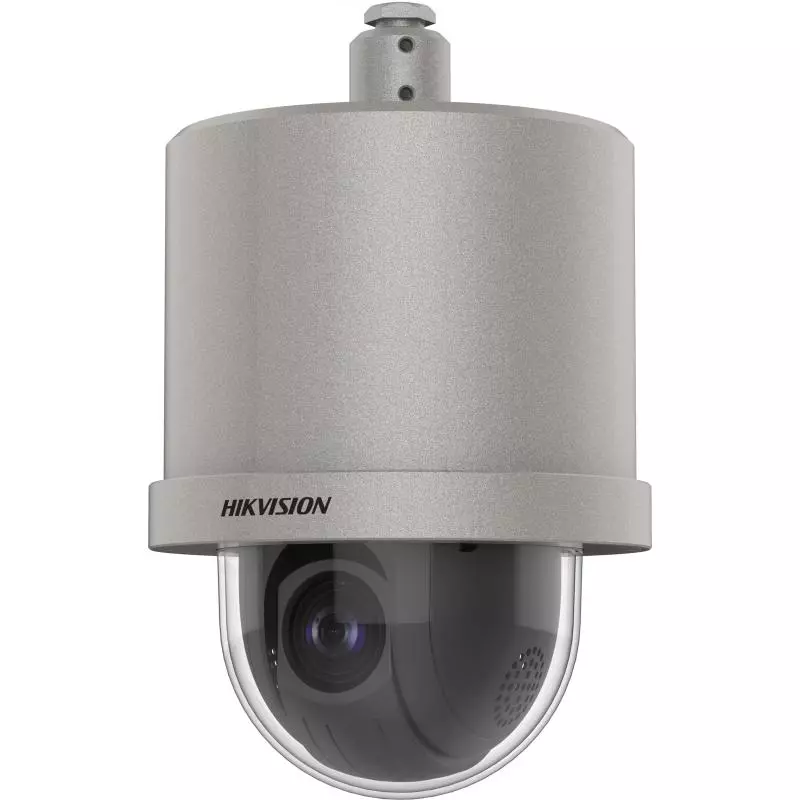

Hikvision DS-2DF6C431-CX(T5/316L)

Image Sensor

1/1.8″ progressive scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.005 Lux @ (F1.5, AGC ON);B/W: 0.001 Lux @ (F1.5, AGC ON)

Shutter Speed

1/1 s to 1/30,000 s

Day & Night

IR Cut Filter

Zoom

31 × optical, 16 × digital

Slow Shutter

yes

Focal Length

5.9 mm to 182.9 mm, 31 × optical zoom

FOV

Horizontal field of view: 60.2° to 2.5° (wide-tele);Vertical field of view: 35.2° to 1.3° (wide-tele);Diagonal field of view: 67.4° to 2.7° (wide-tele)

Focus

semi-auto,manual,auto

Aperture

F1.5

Zoom Speed

Approx. 7 s (Optical Lens, Wide-Tele)

Movement Range (Pan)

360° endless

Movement Range (Tilt)

From 0° to 90° (Auto Flip)

Pan Speed

Pan speed: configurable from 0.1° to 100°/s, preset speed: 100°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s

Proportional Pan

yes

Presets

300

Preset Freezing

yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Park Action

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

3D Positioning

yes

PTZ Status Display

yes

Scheduled Task

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

Power-off Memory

yes

Main Stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Bit Rate

32 kbps to 16384 kbps

H.264 Type

Baseline profile,Main profile,High profile

H.265 Type

main profile

Scalable Video Coding (SVC)

yes

Region of Interest (ROI)

yes

Target Cropping

no

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

G.722.1: 16Kbps,G.711ulaw: 64 kbps, G.711alaw: 64 kbps, MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps

Audio Sampling Rate

MP2L2: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz,32kHz, 48kHz

Environment Noise Filtering

yes

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK

User/Host

Up to 32 users. 3 levels: Administrator, Operator and User

Security

User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Network Storage

NAS (NFS, SMB/CIFS),auto network replenishment (ANR)

Client

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser

IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Image Parameters Switch

yes

Image Settings

saturation, brightness, sharpness, contrast

Day/Night Switch

auto

Wide Dynamic Range (WDR)

120 dB

SNR

＞52dB

Defog

yes

Image Enhancement

HLC/BLC/3D DNR/EIS/Regional Exposure/Regional Focus

Privacy Mask

up to 24 masks

Ethernet Interface

RJ45, self-adaptive 10M/100M Ethernet port

On-board Storage

support microSD/microSDHC/microSDXC cards, up to 256 GB

Audio

1-ch audio input and 1-ch audio output

Alarm

7-ch alarm input and 2-ch alarm output

RS-485

HIKVISION, Pelco-P, Pelco-D, self-adaptive

Basic Event

Motion detection,video tampering alarm,alarm input and output,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)

Smart Event

intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection

Linkage

Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Smart Linkage

manual tracking,event tracking

Face Capture

1. Detects up to 10 faces simultaneously;2. Uploads face with background and closed-up face pictures;3. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

Face Comparison

Recognizes face identity via face modeling, grading and comparing to those in face library

Power

100 VAC to 240 VAC, Max.: 60 W

Dimension

Φ 255 mm × 405 mm（Φ 10″ × 15.9″)

Weight

13.2 kg (29.11 lb.)

Material

SUS316L with anti-corrosion surface spray treatment

Operating Condition

Temperature: -40°C to 60°C (-40°F to 140°F)，Humidity: ≤ 95%

Cable Length

1.95 m (6.40 ft.)

General Function

mirror,password protection,watermark,IP address filter

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Protection

IP68, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Explosion-Proof Protection

ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db,IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db,For explosive gas atmospheres, the maximum surface temperature is 85°C;;For flammable dust atmospheres, the maximum surface temperature is 80°C;;IIC: for explosive gas atmospheres other than mines susceptible to firedamp;;For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.

Anti-Corrosion Protection

NEMA 4X (NEMA 250-2018)
