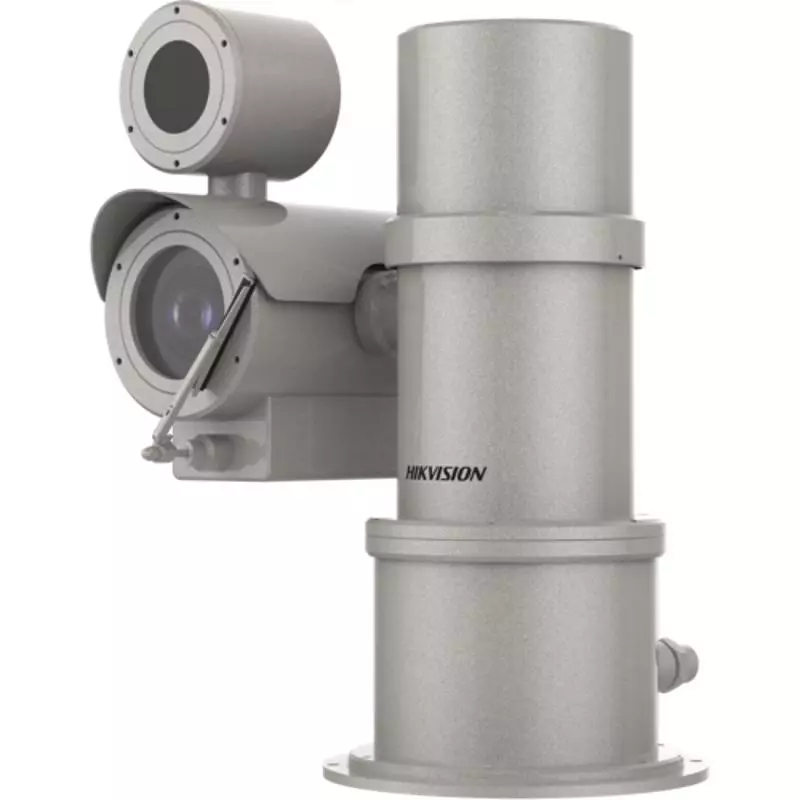

Hikvision DS-2DY9236I-CWX(T5/316L)

Image Sensor

1/1.8″ progressive scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Speed

1/1s~1/30000 s

Day & Night

ICR

Zoom

36 × optical, 16 × digital

Slow Shutter

yes

Focal Length

6.0~216 mm，36 × optical

FOV

Horizontal field of view: 59° to 1.98° (wide-tele);Vertical field of view: 34.16° to1.12° (wide-tele);Diagonal field of view: 67.1° to 2.3° (wide-tele)

Focus

Auto/Semi-automatic/Manual

Aperture

F1.2

Zoom Speed

approx. 4.6 s

Supplement Light Type

IR

Supplement Light Range

150 m

Smart Supplement Light

yes

IR Wavelength

850 nm

Movement Range (Pan)

360° endless

Movement Range (Tilt)

From -90° to 90° (auto-flip)

Pan Speed

Configurable, from 0.1°/s to 50°/s, ;Preset speed: 50°/s

Tilt Speed

Configurable, from 0.1°/s to 40°/s, Preset Speed: 40°/s

Proportional Pan

yes

Presets

300

Preset Freezing

yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Park Action

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

3D Positioning

yes

PTZ Status Display

yes

Scheduled Task

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

Power-off Memory

yes

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG;Third Stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16384 Kbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

yes

Region of Interest (ROI)

8 fixed regions for each stream

Audio Compression

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2,PCM

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

yes

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Smooth Streaming

yes

User/Host

Up to 32 users, 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

iVMS-4200, HikCentral Pro, Hik-Connect

Web Browser

IE11, Chrome 57+, Firefox 52+, Safari 11+

Image Parameters Switch

yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Day/Night Switch

auto

Wide Dynamic Range (WDR)

120 dB WDR

SNR

≥52dB

Defog

Optical defog

Image Enhancement

HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus

Privacy Mask

24 programmable polygon privacy masks, mask color or mosaic configurable

Ethernet Interface

1 RJ45 10 M/100 M Ethernet

On-board Storage

support microSD/microSDHC/microSDXC cards, up to 256 GB

Audio

1-ch audio input and 1-ch audio output

Alarm

7-ch alarm input and 2-ch alarm output

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Basic Event

Motion detection, video tampering alarm, exception, alarm input and output

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Smart Tracking

Manual tracking, Event tracking

Face Capture

1. Detects up to 10 faces simultaneously;2. Uploads face with background and closed-up face pictures;3. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

Power

100 VAC to 240 VAC;Max.100 W (Max. 15 W for IR)

Dimension

451 mm × 258 mm × 507.5 mm (17.76″ × 10.16″ × 19.98″)

Weight

37.6 kg (82.91 lb.)

Material

SUS316L with anti-corrosion surface spray treatment

Operating Condition

-40°C to 60°C (-40°F to 140°F)，Working Humidity≤ 95%

Cable Length

1.248 m (4.09 ft.)

General Function

Anti-flicker, heartbeat, mirror, flash log, password reset via e-mail, pixel counter, password protection, one-key reset, three streams

Heater

Yes

Wiper

Yes

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP68, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Explosion-Proof Protection

ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db,IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db,For explosive gas atmospheres, the maximum surface temperature is 85°C;;For flammable dust atmospheres, the maximum surface temperature is 80°C;;IIC: for explosive gas atmospheres other than mines susceptible to firedamp;;For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.

Anti-Corrosion Protection

NEMA 4X (NEMA 250-2018)
