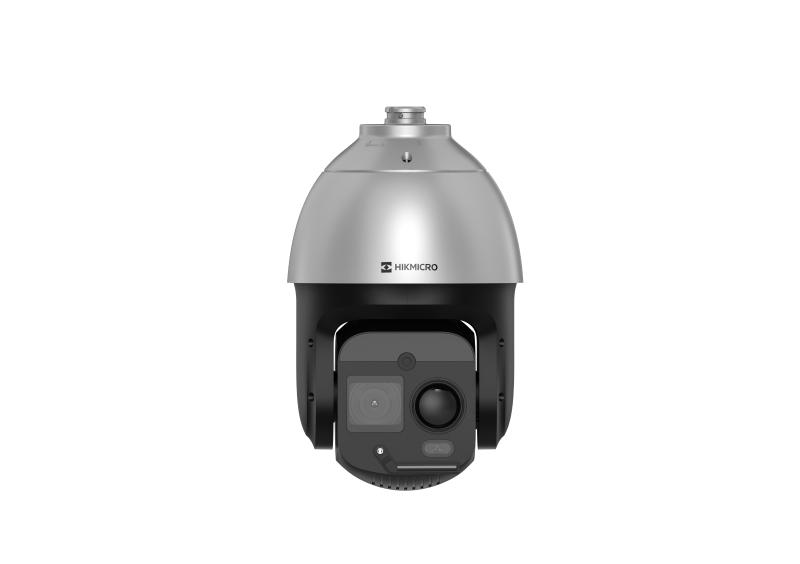

Hikvision HM-TD4168T-25/G0/T2Y

Artikul: HC-HM-TD4168T-25/G0/T2Y

Hikvision HM-TD4168T-25/G0/T2Y — Thermographic Thermal & Optical Bi-spectrum IP Speed Dome kamera kamera

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Optical Module
Image Sensor1/1.8″ Progressive Scan CMOS
Resolution2688 × 1520, 4 MP
Min. IlluminationColor: 0.005 Lux @(F1.3，AGC ON), B/W: 0.001 Lux @(F1.3，AGC ON)
Field of ViewFixed lens:89.5°(H)x47.9°(V)
PTZ:55.2°(H)*31.84°(V)~1.84°(H)*1.04°V)
Focal LengthFixed lens:4mm
PTZ : 6-336mm
Aperture (Range)Fixed lens：F1.3-F4.6
PTZ : F1.0
Focus ModeSemi-auto/Manual
Digital Zoom×2, ×4, ×8, ×16
Shutter Speed1s to 1/30,000s
WDR120 dB
Optical DefogYes

Image Effect
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationSupported in white hot and black hot mode
Image StabilizationThermal channel supports EIS.
Optical channel supports OIS

PTZ
Movement RangePan: 360° Continuous Rotate; Tilt: From -5° to + 90° (auto flip)
Pan SpeedConfigurable, From 0.1°/s to 160°/s, Preset Speed: 240°/s
Tilt SpeedConfigurable, From 0.1°/s to 125°/s, Preset Speed: 200°/s
Proportional ZoomYes
Presets300 in total, 273 are configurable.
Patrol Scan8; Up to 32 Presets Per Patrol
Pattern Scan4; More Than 10 Minutes Per Pattern
Power Off MemoryYes
ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT StatusTurn On/Turn Off
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

Smart Function
VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Temperature Range-20 °C to 650 °C (-4 °F to 1202 °F)
Temperature AccuracyMax (±2 °C, ±2 %)
Fire DetectionDynamic fire detection, up to 10 fire points detectable.
Smoke DetectionUp to 6km detection ability with 5m*5m smoke

Video and Audio
Main StreamThermal channel
25fps(1920 × 1080, 1280 × 960, 1280 × 720，704×576，640×512，384×288)
Optical channel
50Hz:25fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)
60Hz:30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)
Sub-streamThermal channel
25fps(704×576，640×512，384×288)
Optical channel
50Hz:25fps(704 × 576, 352 × 288)
60Hz:30fps(704 × 576, 352 × 288)
Video CompressionMain stream: H.265+/H.265/H.264+/ H.264
Sub-stream: H.265/H.264/MJPEG
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Video and Image
Color Palettes15 palettes (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Icefire, Rain, Red hot,Green hot, Dark blue)

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network StorageMicroSD/SDHC/SDXC card (1T) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
APIISAPI, ISUP, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T, Profile M)
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering, TPM2.0 (FIPS-140-2 level), TLS1.1,TLS1.2, TLS1.3
ClientiVMS-4200, Hik-Connect
Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

Interface
Alarm Input7-ch inputs (0-5 VDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear Level; Impedance: 600 Ω
Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface
Analog Video Output1.0 V [p-p]/75 Ω, BNC for thermal channel

General
Web Client Language32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply24V AC ± 20%, 36V DC ± 20%, 48V DC ± 20%, Hi-PoE
Power Consumption70W Max
Work Temperature/Humidity From -40°C to 70°C (-40°F to 158°F); Humidity: 95% or Less
WiperYes
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension266.6*266.6*433.3mm (10.5 ” × 10.5 ” × 17.06 “)
Approx. 9.3 kg (20.5 lb)

Approval
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
SafetyCB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
EnvironmentCE-RoHS：2011/65/EU,
WEEE: 2012/19/EU,
Reach：Regulation(EC) No 1907/2006
ProtectionIP66: IEC 60529-2013
Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
