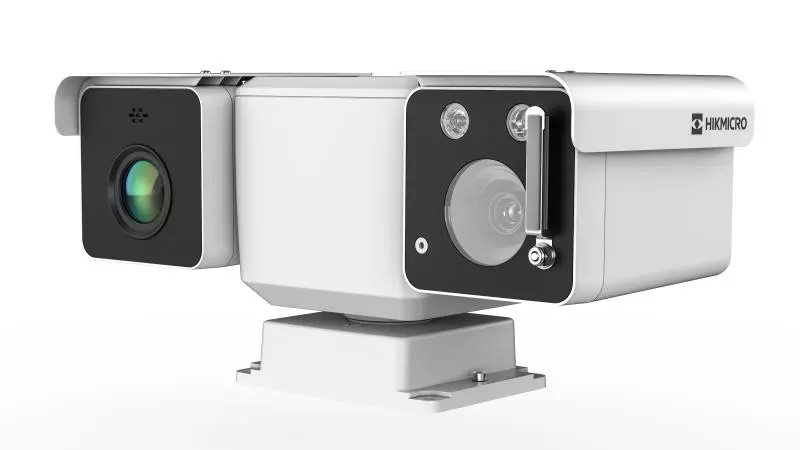

Bi-spektrli termoqrafik mini mövqeləndirmə sistemi
Bi-spektrli termoqrafik mini mövqeləndirmə sistemi
Sorğu əsasında
Qiymət sorğusu- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution384 × 288
- Pixel Pitch17 μm
- Spectral Range8 μm to 14 μm
- NETD≤ 35 mK (25°C, F# = 1.0)
- Focal Length25 mm
- IFOV0.68 mrad
- ApertureF1.0
- Field of View14.9°(H)*11.2°(V)
- Min. Focusing Distance1.5 m
- Digital Zoom×2, ×4, ×8
- Optical Module
- Image Sensor1/2.8″ Progressive Scan CMOS
- Resolution2688 × 1520, 4MP
- Min. IlluminationColor: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON)
- Field of View58.4° × 33.8° (H × V) to 2.14° × 1.2° (H × V)
- Focal Length4.8 to 153 mm, 32x
- Aperture (Range)F1.2 to F4.4
- Focus ModeSemi-auto, manual
- Digital Zoom×2, ×4, ×8, ×16
- Shutter Speed1 s to 1/100,000 s
- WDR120 dB
- Optical DefogYes
- Image Effect
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
- Target ColorationYes. Supported in white hot and black hot mode.
- PTZ
- Movement RangePan: 360° Continuous Rotate; Tilt: From -90° to + 90° (auto flip)
- Pan SpeedConfigurable, From 0.5°/s to 90°/s
- Tilt SpeedConfigurable, From 0.5°/s to 40°/s
- Proportional ZoomYes
- Presets300
- Patrol Scan8 patrols; Up to 32 presets per patrol
- Power Off MemoryYes
- ParkPreset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PT StatusTurn On/Turn Off
- Scheduled TaskPreset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
- Illuminator
- IR DistanceUp to 30 m
- IR Intensity and AngleAutomatically adjusted
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), 10 scenes and 8 VCA rules for each scene.
- Temperature Measurement3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
- Temperature Range-20°C to 550°C (-4°F to 1022°F)
- Temperature AccuracyMax (± 2°C, ±2%)
- Fire DetectionDynamic fire and smoke detection, up to 10 fire points and 10 smoke points detectable.
- Video and Audio
- Main Stream
Optical channel
50 Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)
Thermal channel
50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288)
- Sub-stream
Optical channel
50 Hz: 25fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 576, 352 × 288)
Thermal channel
50 fps (704 × 576, 640 × 512, 384 × 288)
- Video Compression
Main stream: H.265+/H.265/H.264+/ H.264
Sub-stream: H.265/H.264/MJPEG
- Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Network StorageMicroSD/SDHC/SDXC card (up to 128 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users. 3 levels: administrator, operator, user
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0 +, Firefox 52.0 +
- Interface
- Alarm Input2-ch inputs (0 to 5 VDC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Alarm ActionPreset/patrol scan/SD card record/relay output/smart capture/FTP upload/email linkage
- Audio Input1
- Audio Output1
- Communication Interface
1, RJ45 10M/100M self-adaptive Ethernet interface.
1, RS-485 interface
- General
- Menu Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply24 VDC
- Power Consumption20 W
- Working Temperature/Humidity
-40°C to 70°C (-40°F to 158°F)
90% or less
- WiperYes
- Protection Level
IP67 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
- Dimensions321 mm × 194 mm × 153 mm(12.64″ × 7.64″ × 6.02″)
- Approx. 4.8 kg (10.582 lb)
- Detection Range Table/Wide Range Coverage
- Detection Range for Humans (1.8×0.5m)735 m
- Detection Range for Vehicles (4.0×1.4m)2255 m
- Recognition Range for Humans (1.8×0.5m)184 m
- Recognition Range for Vehicles (4.0×1.4m)564 m
- Identification Range for Humans (1.8×0.5m)92 m
- Identification Range for Vehicles (4.0×1.4m)282 m
- Detection Range Table/Smart Function Range
- VCA Range for Humans175 m
- VCA Range for Vehicles525 m
- Temperature Measurement Range for Object (2m×2m)588 m
- Temperature Measurement Range for Object (1m×1m)294 m
- Fire Detection Range for Object (2m×2m)1471 m
- Fire Detection Range for Object (1m×1m)735 m
