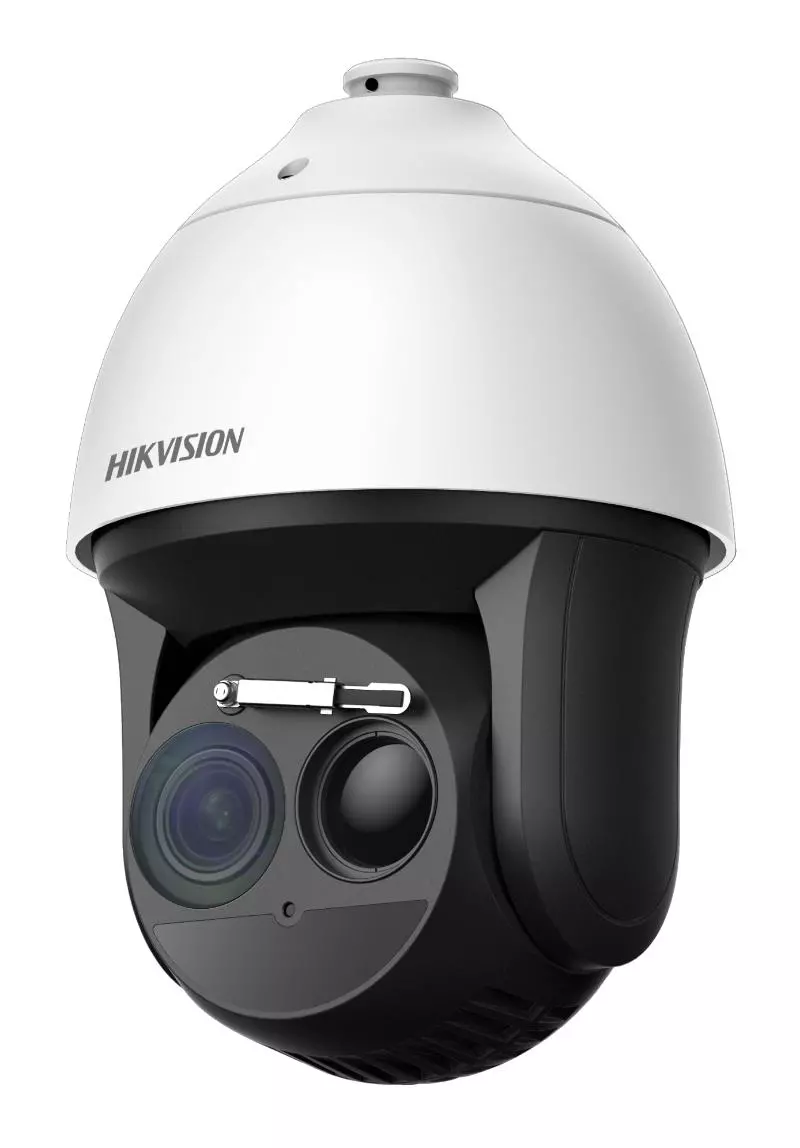

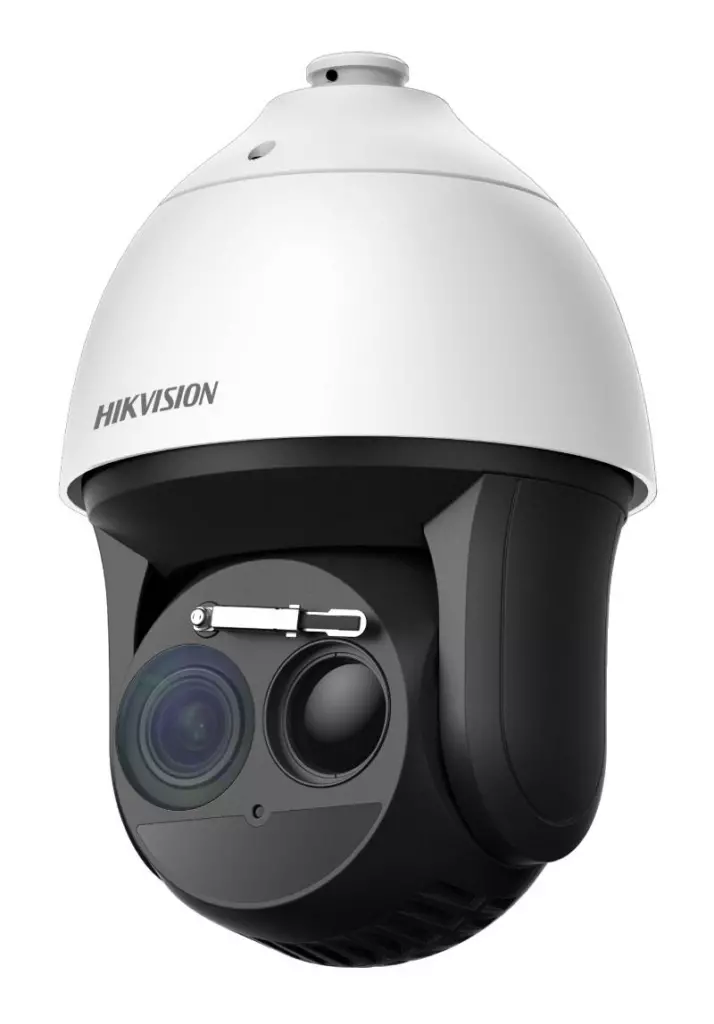

Bi-spektrli termoqrafik mini mövqeləndirmə sistemi
Bi-spektrli termoqrafik mini mövqeləndirmə sistemi
Sorğu əsasında
Qiymət sorğusu- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution384 × 288 (the resolution of output image is 1920 × 1080)
- Pixel Interval17 μm
- Response Waveband8 μm to 14 μm
- NETD≤ 35 mK (@25° C, F# = 1.0)
- Focal Length25 mm
- Focus ModeSemi-auto & Manual
- IFOV0.68 mrad
- ApertureF1.0
- Field of View14.9° × 11.2° (H × V)
- Min. Focusing Distance1.5 m
- Digital Zoom×2, ×4, ×8
- Optical Module
- Image Sensor1/1.8″ Progressive Scan CMOS
- Resolution2688 × 1520, 4 MP
- Min. IlluminationColor: 0.005 Lux @ (F1.3，AGC ON), B/W: 0.001 Lux @ (F1.3，AGC ON)
- Field of View56.6 ° × 33.7 ° (H × V) to 1.8 ° × 1.0 ° (H × V)
- Focal Length6-240 mm, 40x
- Aperture (Range)F1.3-F4.6
- Focus ModeAuto/Semi-auto/Manual
- Digital Zoom×2, ×4, ×8, ×16
- Shutter Speed1 s to 1/30,000 s
- WDR120 dB
- Optical DefogYes
- Image Effect
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
- Target ColorationSupported in white hot and black hot mode
- PTZ
- Movement RangePan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)
- Pan SpeedConfigurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
- Tilt SpeedConfigurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
- Proportional ZoomYes
- Presets300 in total, 273 are configurable.
- Patrol Scan8; Up to 32 Presets Per Patrol
- Pattern Scan4; More Than 10 Minutes Per Pattern
- Power Off MemoryYes
- ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PT StatusTurn On/Turn Off
- Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
- Illuminator
- IR DistanceUp to 200 m
- IR Intensity and AngleAutomatically adjusted
- Smart Function
- VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
- Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
- Temperature Range– 20° C to 550° C (- 4° F to 1022° F)
- Temperature AccuracyMax (± 2° C, ± 2%)
- Fire DetectionDynamic fire detection, up to 10 fire points detectable.
- Video and Audio
- Main Stream
Optical channel
50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz:30 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720)
Thermal channel
50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 512, 384 × 288)
- Sub-stream
Optical channel
50 Hz:25 fps (704 × 576, 352 × 288)
60 Hz:30 fps (704 × 576, 352 × 288)
Thermal channel
50 fps (704 × 576, 640 × 512, 384 × 288)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
- Audio CompressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- APIISAPI, HIKVISION SDK, third-party management platform, ONVIF profile S,T,G)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0 +, Firefox 52.0 +
- Interface
- Alarm Input7-ch inputs (0-5 VDC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
- Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear Level; Impedance: 600 Ω
- Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface
- Analog Video Output1.0 V [p-p]/75 Ω
- General
- Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply24V AC ± 20%, 36V DC ± 20%, 48V DC ± 20%, Hi-PoE
- Power Consumption65W Max
- Working Temperature/Humidity
– 40° C to 65° C (- 40° F to 149° F)
95% or less
- WiperYes
- Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Dimension266.6 mm × 410 mm × 198.6 mm (10.5 ” × 16.15 ” × 7.82 “)
- Approx. 9 kg (19.84 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans175 m
- VCA Range for Vehicles525 m
- Approval
- EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
- Safety
CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
- Environment
CE-RoHS：2011/65/EU,
WEEE: 2012/19/EU,
Reach：Regulation(EC) No 1907/2006
- ProtectionIP66: IEC 60529-2013
