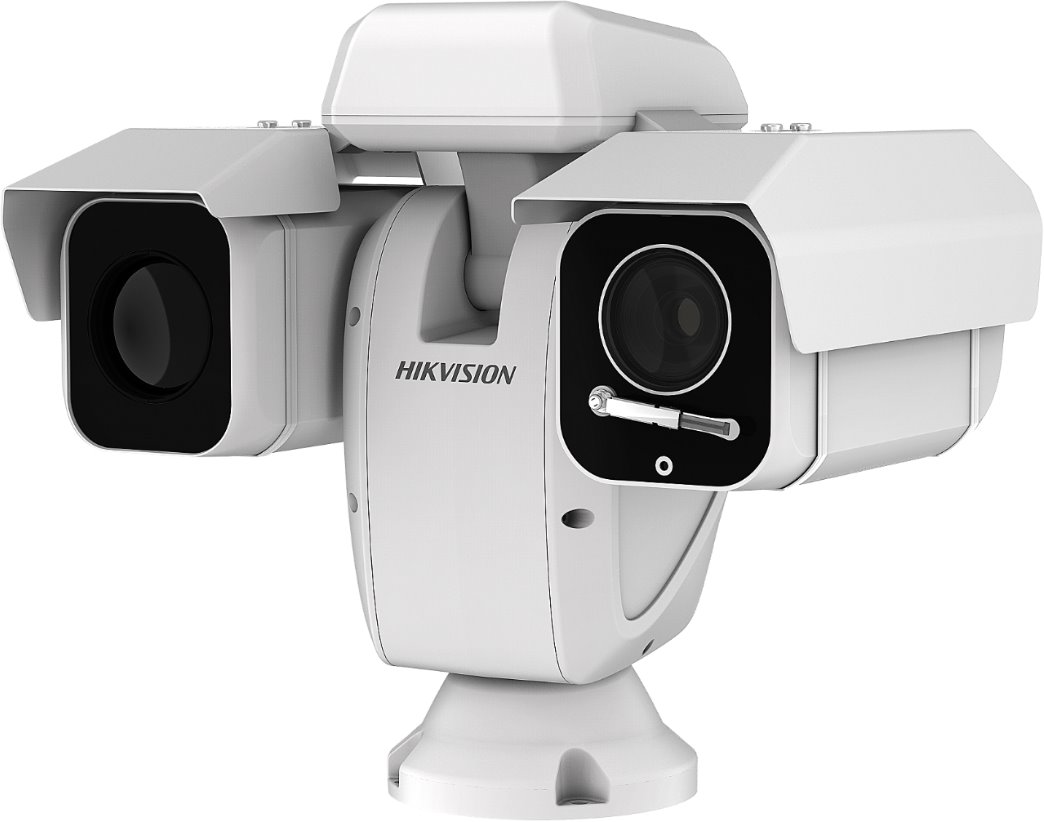

Hikvision DS-2TD6236T-50H2L

Artikul: HC-DS-2TD6236T-50H2L

Hikvision DS-2TD6236T-50H2L — Thermographic Thermal & Optical Bi-spectrum Network Positioning System

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Optical Module
Max. Resolution1920 × 1080
Image Sensor1/1.9’’ Progressive Scan CMOS
Min. IlluminationColor: 0.002 lux @ (F1.5 , AGC On ),B/W : 0.0002 lux @ (F1.5 , AGC On )
Field of View58.7° – 2.0° (Wide-Tele)
Aperture RangeF1.5-F4.5
Focus ModeAuto / Semiautomatic / Manual
WDR120dB
Shutter SpeedPAL: 1-1/30,000s / NTSC: 1-1/30,000s
Day & NightIR Cut Filter
Focal Length5.7-205.2mm, 36x

Smart Function
VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
Temperature Range-20° C to 550° C (-4°F to 1,022°F)
Temperature AccuracyMax (± 2 °C, ± 2%)
Fire DetectionDynamic fire point detection, up to 10 fire points detectable.

PTZ
Movement RangePan: 360° Continuous Rotate; Tilt: From -90° to + 40° (auto flip)
Pan SpeedConfigurable, From 0.1°/s to 110°/s
Tilt SpeedConfigurable, From 0.1°/s to 50°/s
Proportional ZoomYes
Presets300
Patrol Scan8; Up to 32 Presets Per Patrol
Pattern Scan4; More Than 10 Minutes Per Pattern
ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT StatusTurn On/Turn Off
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

Network
Main StreamOptical:50Hz:25fps(1920×1080), 25fps(1280×960), 25fps(1280×720),Optical:60Hz:30fps(1920×1080), 30fps(1280×960), 30fps(1280×720),Thermal: 50fps(640 × 512)
Sub streamOptical:50Hz:25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144),Optical:60Hz:30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120),Thermal: 50fps(640 × 512)
Video compressionH.264 (Baseline/Main/High Profile) /MJPEG/MPEG4
Audio compressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP, PPPoE, Bonjour
Simultaneous live viewUp to 20-ch
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
Security measuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Integration
Alarm InputUp to 7-ch Relay Input (0-5V DC)
Alarm OutputUp to 2-ch; Support Alarm Linkage
Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
Audio OutputLinear Level; Impedance: 600Ω
EthernetBuilt-in RJ45; 10M/100M Ethernet Interface
SD Memory CardBuilt-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording
Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
RS485Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive
Application ProgrammingOpen-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
ClientiVMS-4200
Web BrowserIE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages

General
Menu LanguageEnglish
Power24V AC
Power Consumption120W
Work Temperature/HumidityFrom -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions486 mm × 330 mm × 486 mm (19.13″ × 12.99″ × 486″)
Approx. 19kg (41.89lb)
