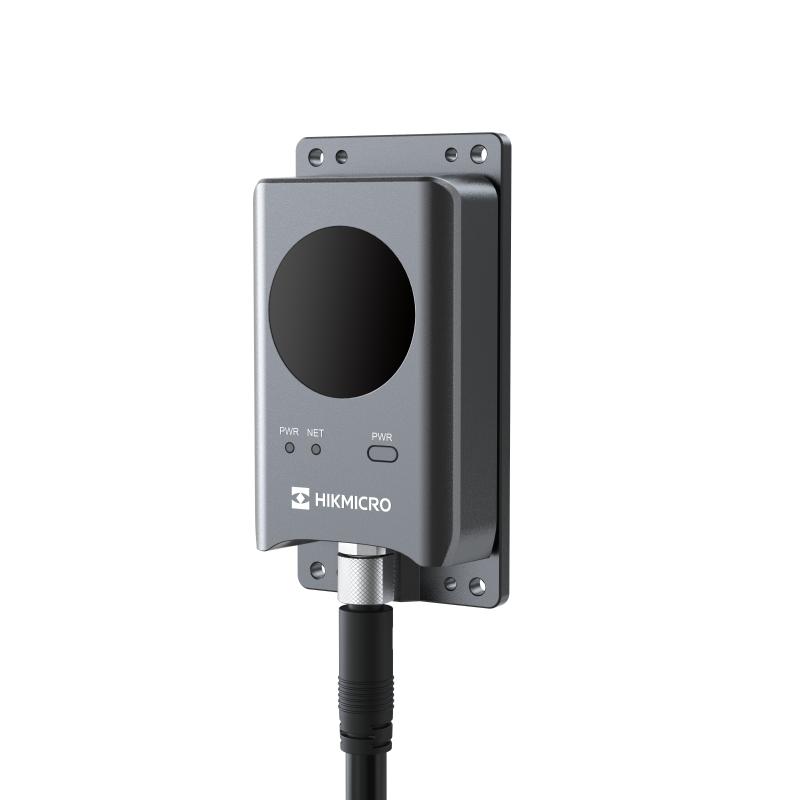

Qiymət sorğusu- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution160 × 120 (the resolution of output image is 320 × 240)
- Pixel Interval12 μm
- Response Waveband8 μm to 14 μm
- NETDLess than 40 mK (@ 25 °C,F#=1.1)
- Focal Length1.3 mm
- IFOV8.95 mrad
- Field of View90° × 66.5° (H × V)
- Min. Focusing Distance0.1 m
- ApertureF1.0
- Digital Zoom×2, ×4
- Image Effect
- Target ColorationYes. Supported in white hot and black hot mode.
- Smart Function
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
- Video and Audio
- Main StreamThermal:
25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) - Sub StreamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240)
- Video CompressionMain stream: H.265/ H.264
Sub-stream: H.265/H.264/MJPEG
- System Function
- Temperature Measurement Display Max. and Min. temperature in live view;
3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line). - Temperature Range-20 °C to 150 °C (-4 °F to 302 °F), 0 °C to 550 °C (32 °F to 1022 °F)
- Temperature Accuracy Max (± 2 °C, ± 2%)
- Video and Image
- Color Palettes15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2,
Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, DHCP, Email, ISUP, PPPOE, NAS
- APIISAPI SDK
- Simultaneous Live ViewUp to 20 channels
- SecurityUser authentication (ID and PW), HTTPS encryption, access control, IP address filtering
- ClientHIKMICRO Studio
- Web BrowserLive view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0+, Firefox 52.0 +
- Interface
- Communication Interface1, RJ45 10 M/100 M self-adaptive Ethernet interface
1, RS-485 interface (ModBus available)
- General
- Menu LanguageEnglish
- Working Temperature/Humidity-10 °C to 60 °C (14 °F to 140 °F)
95% or less - Power Supply12 VDC ± 25%, Max. 2 W
- Protection LevelIP67 Standard
TVS 6000 V lightning protection, surge protection, voltage transient protection - Dimension102 mm × 51.2 mm × 27.5 mm (4.0″ × 2.0″ × 1.1″)
- Approx. 180 g (0.39 lb)
