Qiymət sorğusu- Processing Performance
- Brightness Control1 to 100 tunable (level-by-level white balance)
- Input Frame Rate25 Hz to 120 Hz
- Grey Level1024
- Display Color1 Gigapixel
- Processing Depth8 bit/10 bit
- Image ScalingSupported
- Product Model

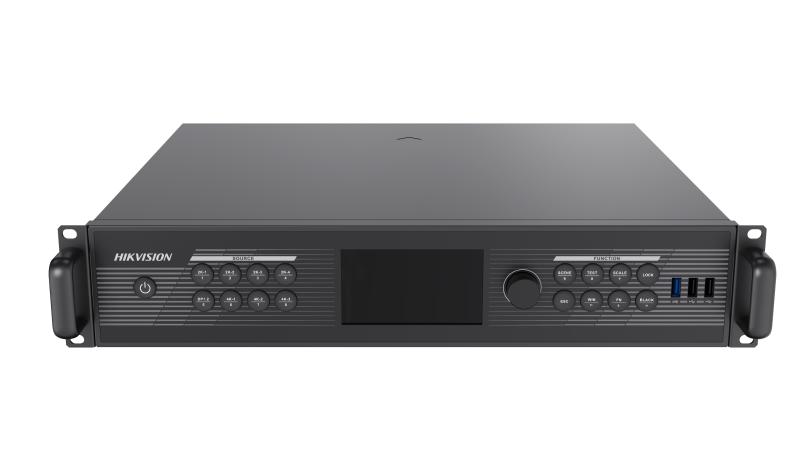

- Product ModelDS-DT90P-09HDPSI40NO/U
- Chassis
- Chassis Height2 U
- Chassis Width442 mm(17.4 inch)
- LED Controller Power
- Average Consumption110 W
- Interface
- Optical Interface
4 × 10G optical ports; The functionality of the optical interfaces varies depending on the optical port mode.
In optical port transmit mode, OPT 1 to OPT 4 transmit data from Ethernet ports 1 to 10, 11 to 20, 21 to 30, and 31 to 40, respectively.
In optical port receive mode, OPT 1 to OPT 4 serve as optical inputs and Ethernet ports serve as outputs.
Supports both single-mode and multi-mode transceiver modules:
Transmission distance of single-mode duplex transceiver module ≤ 10 km; Transmission distance of multi-mode duplex transceiver module ≤ 300 m
- 3D Interface1 × 3D port; To achieve 3D effect, use this port together with a 3D transmitter and compatible 3D glasses. After enabling 3D effect, when the video source format is side-by-side, top-and-bottom, or front/back frame, the output load capacity of the device is halved.
- USB Interface2 × USB 2.0 + 1 × USB 3.0
- Genlock Interface
Genlock interface supports Bi-Level, Tri-Level, and Blackburst.
IN: Sync signal input.
LOOP: Sync signal loop output.
The Genlock input supports frame rates from 23.98 Hz to 60 Hz. Standard Genlock signal generators support cascading of up to 20 devices.
- Serial Interface
1 × debugging port (4-pin connector)+ 2× RS-485 port (green Phoenix contact)
Baud rate: 115200
Data bit: 8
- Power
- Power Interface1, 100 VAC to 240 VAC, 50/60 Hz
- Network
- Control Network Port2 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Used for connecting to external networks, supporting multi-device network cascade management.
- Video Wall
- Open Windows
Supports up to 7 video signal windows with source duplication (one-to-many).
Maximum of 3 × 4K@60Hz + 4 × 2K@60Hz windows and duplication.
- Layers per DeviceMaximum support for 11 layers: 3 × 4K window + 4 × 2K window + 2 × split-screen window + 1 × subtitle window + 1 × background image window.
- Scenes10
- Background ImageSupported (quantity: 1, max. resolution: 1920 × 1200, min. resolution: 640 × 480, format: JPG/JPEG)
- Subtitles1
- Subtitle Width32760
- Subtitle FontSupports Xiaomi font and custom font
- General
- ScreenScreen type: LCD, dimension: 4.5 inch, resolution: 854 × 480
- Working Temperature0℃ to 50℃(32℉ to 122℉)
- Storage Temperature-10℃ to 50℃(14℉ to 122℉)
- Storage Humidity10% RH to 90% RH, no condensation
- Working Humidity10% RH to 90% RH, no condensation
- Dimensions (W × H × D)442 mm × 88 mm × 417 mm (17.40 inch × 3.46 inch × 16.42 inch) (excluding mounting ears)
- Packaging Size (W × H × D)642 mm × 180 mm × 587 mm (25.28 inch × 7.09 inch × 23.11inch)
- Net Weight6.26 kg (13.80 lb)
- Gross Weight8.53 kg (18.80 lb)
- Packing List1 × AC power cord, 2 × terminal block, 1 × regulatory compliance and safety information manual, 3 × rod-shaped antenna, 1 × RF remote control
- Product Type
- Product TypeLED controller
- Audio Input
- Audio Input InterfaceTotal 11: 3 × HDMI2.0+ 1× DP+4 × HDMI1.3+1 × line-in+1 × built-in Android+1 × 12G-SDI
- Video Input
- Video Input Interface Type2-out-of-4 selection (2 × HDMI2.0, 1 × DP1.2, 1 × built-in Android) +1 × HDMI2.0+4 × HDMI1.3+1 × 12G-SDI
- Video Input Interfaces9
- Max. Video Input Resolution
HDMI2.0/DP1.2/built-in Android/12G-SDI: 4K
HDMI1.3: 1080P
- Video Input Resolution
HDMI2.0/DP1.2 port:
Max. resolution: 4096 × 2160@60 Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz
Max. width: 144 to 8192, alignment: 2 alignment
Max. height: 144 to 8192, alignment: 1 alignment
Supports HDCP 2.2. Interlacing signal input is not supported.,Built-in Android port:
Max. resolution: 4096 × 2160@60Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz
Max. width: 144 to 4096, alignment: 2 alignment
Max. height: 144 to 4096, alignment: 1 alignment
Supports HDCP 1.4. Interlacing signal input is not supported.,12G-SDI port: Supports input from ST-424 (3G), ST-292 (HD), and ST-259 (SD) standard video sources; Compliant with SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 425M-A, and SMPTE 425M-B protocols; Max. input resolution: 4096 × 2160@60Hz; Supports LOOP output and 10-bit video input; Input resolution and bit depth settings are not supported.,HDMI 1.3 port:
Max. resolution: 1920 × 1080@60 Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 2.07 MP@60Hz
Max. width: 144 to 2048, alignment: 2 alignment
Max. height: 144 to 2048, alignment: 1 alignment
Supports HDCP 1.4. Interlacing signal input is not supported.
- Video Input Processing Feature
DP1.2/HDMI2.0/12G-SDI processing depth: 8 bit/10 bit
Sampling format: RGB: 444, YUV: 444, YUV: 422,Built-in Android processing depth: 8 bit
Sampling format: RGB: 444, YUV: 444, YUV: 422,Built-in HDMI1.3 processing depth: 8 bit
Sampling format: RGB: 444, YUV: 444, YUV: 422
- Video Output
- Max. Video Output Resolution26000000
- Loading Capacity for Video Output to LED
Single port load 650000,
Width 144 – 16384,
Height 64 – 16384,
Width must be a multiple of 2 and height must be a multiple of 1
- LED Loading Interfaces40
- LED Loading Interface TypeRJ-45
- Video Loop Output Interface3-channel HDMI2.0+1-channel 12G-SDI loop output(Two HDMI ports correspond to quad selection for two signal loop outputs)
- Video Loop Output Resolution
HDMI2.0/12G-SDI port:
Max. resolution: 4096 × 2160@60 Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution, total resolution not exceeding 8.84 MP@60 Hz.
Max. width: 144 to 8192, width must be a multiple of 2.
Max. height: 144 to 8192, height must be a multiple of 1.
Supports HDCP2.2
- Video Live View Output Interfaces1
- Type of Video Live View Output InterfaceHDMI 1.3
- Video Live View Output Resolution1080p@60 Hz
- Loading ModeSingle port load 0.65 MP
- Audio Output
- Audio Output Interface1 × 3.5 mm audio
- System
- SystemAndroid 12
- Memory Capacity4 GB
- Storage Capacity64 GB
- CPU4-core 64-bit ARM cortex-A55 2.0 GHz
- Wireless
- Wi-FiSupported, STA: 2.4 GHzAP: 2.4 GHz/5 GHz
- BluetoothSupported (Bluetooth 4.0)
- Antenna3 × rod-shaped antenna
- Remote ControlSupported(RF remote control)
- Device Parameters
- Button
8 buttons for 4K/2K video input signals; 8 function buttons:
SCALE button: Full-screen scaling
ESC button: Backspace
LOCK button: Lock
TEST button: Test image
SCENE button: Scene switch for V series LED controller, program switch for P series LED controller
Win button: Window button
FN: Toggle button
BLACK: Black screen button
Up/Down/Left/Right: Multipurpose
0-9 number keys: Multipurpose
- Broadcast Control Feature
- Program Material TypeVideo, image, audio, document, text, stream media, clock
- Program Playback
Supports play, stop, fast forward, and rewind in the material window.
Supports play and stop in program playback.
- Playback Attribute
Supports configuration of window size, position, and playback time.
Supports configuration of programs and schedule.
Supports real-time playback control and asynchronous signal transmission configuration.
- Video Playback PerformanceSupports 1 channel of 4K@60, 4 channels of 1080p@60, or 6 channels of 720p@60 multimedia video playback.
- WonderCast ClientSupported
- Front Panel
- IndicatorUses the button indicator lights and switch indicator lights.
- Power Switch
Button switch
Steady On: Device is powered on and running.
Off: Device is not powered on or not started.
- knobUses the knob to select the menu, adjust the parameters and confirm the operation.
