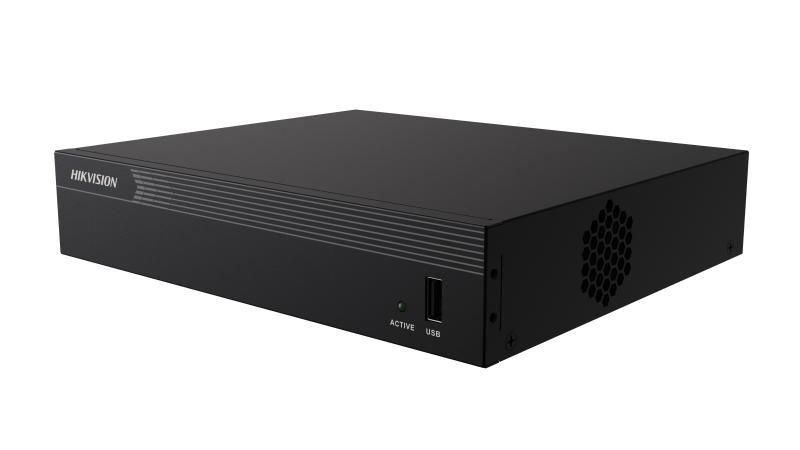

Hikvision DS-DT20C-01HI04NO

Brightness Control

1 to 100 tunable (level-by-level white balance)

Frame Frequency

25 Hz to 60 Hz

Grey Level

256

Display Color

16 MP

Processing Depth

8 bit

Image Scaling

Supported

Product Model

DS-DT20C-01HI04NO

Chassis Height

1 U

Chassis Width

Half-width

Product Type

LED controller (The LED controller supports controlling only the receiving cards that use the hub ports.)

Average Consumption

≤ 13 W

Power Interface Quantity

1

Power Interface

100 to 240 VAC, 50/60 Hz

BackgroundImages

2

Background Resolution

Min.: 640 × 480, Max.: 1920 × 1200

Background Format

JGP/JPEG

Working Temperature

-10°C to 50°C

Storage Humidity

10% to 90%

Working Humidity

10% to 90%

Storage Temperature

-10°C to 50°C

Packaging Size (W × H × D)

353 mm × 89 mm × 237 mm (13.90 inch × 3.50 inch × 9.33 inch)

Net Weight

0.86 kg (1.89 lb.)

Gross Weight

1.38 kg (3.04 lb.)

Dimensions (W × H × D)

210 mm × 42 mm × 177.4 mm (8.27 inch × 1.65 inch × 6.98 inch)

Packing List

1 × AC power cord, 1 × connecting bracket, 1 × mounting bracket, 1 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 × RF remote control

Audio Input Interfaces

1

Audio Input Interface Type

1 channel of embedded HDMI input

Audio Output Interfaces

1

Audio Output Interface Type

3.5 mm audio output

Video Input Interfaces

1

Video Input Interface Type

HDMI 1.4

Max. Video Input Resolution

1080P

Video Input Resolution

HDMI 1.4 port;Max. resolution: 1920 × 1200@60 Hz;Min. resolution: 320 × 180@60 Hz;Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz;Max. width: 320 to 3840, alignment: 2 alignment;Max. height: 180 to 3840, alignment: 1 alignment;Supports HDCP 1.4;Interlacing signal input is not supported.

Video Input Processing Feature

Processing depth: 8 bit;Sampling format:;RGB: 444;YUV: 444;YUV: 422

Max. Video Output Resolution

2.6 Million

Loading Capacity for Video Output to LED

Single mesh port with load: 650000,;Width 320-5120; ;Height 64-5120;

LED Loading Interfaces

4

LED Loading Interface Type

RJ-45

Remote Control

Supports IR remote control

USB Port

1 channel of USB 2.0

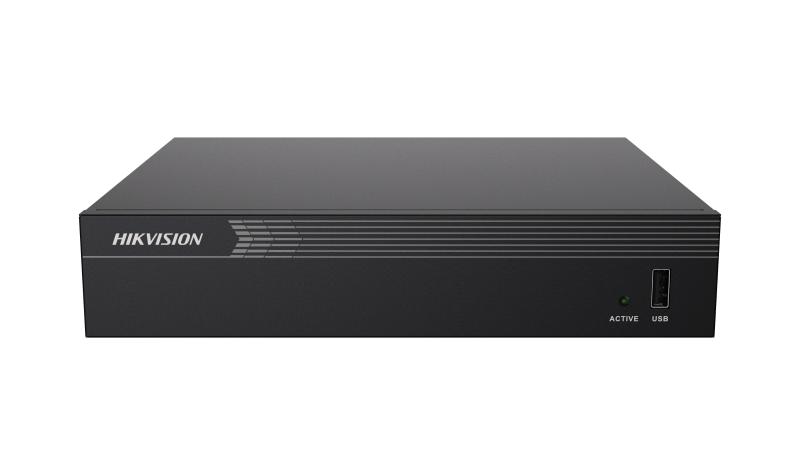

Indicator

Active: The device is running

Power Switch

On: The device is started and running.;Off: The device is not powered on or is not started.

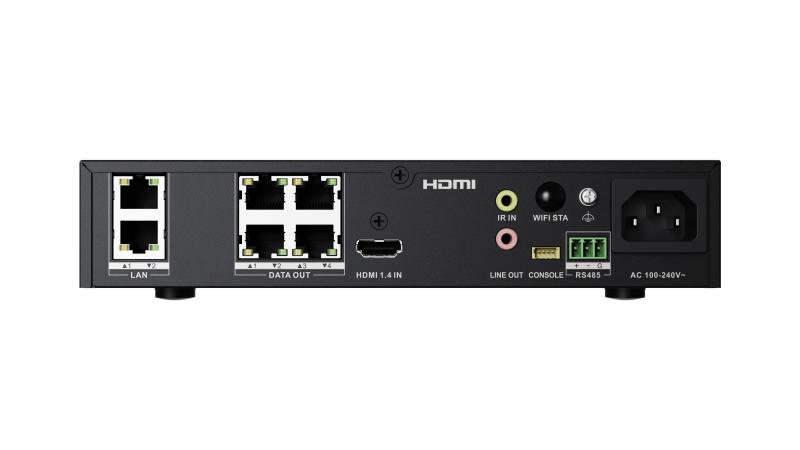

Control Network Port

2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45);Connects to the external network and supports multi-device network cascade management.

IR Input

1 × 3.5 mm connector;Supports the access of IR remote control.

Serial Interface

1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact);Baud rate: 115200, data bit: 8
