Qiymət sorğusu- Processing Performance
- Brightness Control1 to 100 tunable (level-by-level white balance)
- Input Frame Rate25 Hz to 120 Hz
- Grey Level256
- Display Color16 MP
- Processing Depth8 bit
- Image ScalingSupported
- Product Model
- Product ModelDS-DT60P-02HDI20NO/U
- Chassis
- Chassis Height1 U
- Chassis Width440 mm (17.32 inch)
- LED Controller Interface
- Light Sensor PortSupported
- LED Controller Power
- Average Consumption≤45 W
- Power Interface Quantity1
- Power Interface100 to 240 VAC, 50/60 Hz
- Interface
- USB Interface1 channel of USB 2.0 + 1 channel of USB 3.0
- Network
- Control Network Port2 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Connects to the external network.
- Video Wall
- Open Windows3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window
- Layers per Device7
- Scenes10
- BackgroundImages1
- Background ResolutionMin.: 640 × 480, Max.: 1920 × 1200
- Background FormatJPG/JPEG
- Subtitles1
- Subtitle Width32760
- Subtitle FontSupports Xiaomi font and custom font
- General
- Screen128 × 64, OLED screen
- Working Temperature-10°C to 50°C
- Storage Humidity10% to 90%
- Working Humidity10% to 90%
- Storage Temperature-10°C to 50°C
- Packaging Size (W × H × D)589 mm × 103 mm × 410 mm (23.19 inch × 4.06 inch × 16.14 inch)
- Net Weight3.3 kg (7.28 lb)
- Gross Weight4.47 kg (9.85 lb)
- Dimensions (W × H × D)440 mm × 44.5 mm × 320.8 mm (17.32 inch × 1.75 inch × 12.63 inch)
- Packing List1 × AC power cord, 1 × mounting bracket, 2 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 3 × bar antenna, 1 × RF remote control
- Product Type
- Product TypeLED controller
- Audio Input
- Audio Input Interfaces2
- Audio Input Interface Type1 HDMI 2.0+ 1 embedded Android
- Video Input
- Video Input Interfaces3
- Video Input Interface Type1 HDMI2.0 + 1 DVI + 1 channel of embedded Android
- Max. Video Input ResolutionHDMI 2.0: 4K; DVI: 1080P
- Video Input Resolution
Embedded Android:
Max. resolution: 1920 × 1200@60 Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 2.6 MP @ 60 Hz
Max. width: 144 to 4096, alignment: 2 alignment
Max. height: 144 to 4096, alignment: 1 alignment
Supports HDCP 1.4. Interlacing signal input is not supported.,DVI port:
Max. resolution: 1920 × 1200@60 Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz
Max. width: 144 to 4096, alignment: 2 alignment
Max. height: 144 to 4096, alignment: 1 alignment
Supports HDCP 1.4. Interlacing signal input is not supported.,HDMI 2.0 port:
Max. resolution: 4096 × 2160@60Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz
Max. width: 144 to 8192, alignment: 2 alignment
Max. height: 144 to 8192, alignment: 1 alignment
Supports HDCP 2.2. Interlacing signal input is not supported.
- Video Input Processing Feature
Processing depth: 8 bit
Sampling format:
RGB: 444
YUV: 444
YUV: 422
YUV: 420
- Video Output
- Max. Video Output Resolution13000000
- Loading Capacity for Video Output to LED
Single port load 650000,
Width 144 – 8192,
Height 64 – 8192,
Width must be a multiple of 2 and height must be a multiple of 1
- LED Loading Interfaces20
- LED Loading Interface TypeRJ-45
- Video Loop Output Interface2
- Type of Video Loop Output Interface1 channel of HDMI 2.0 + 1 channel of DVI
- Video Loop Output Resolution
DVI port:
Max. resolution: 1920 × 1200@60 Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution, total resolution not exceeding 2.6 MP@60 Hz.
Max. width: 144 to 4096, width must be a multiple of 2.
Max. height: 144 to 4096, height must be a multiple of 1.
Supports HDCP 1.4.,HDMI 2.0 port:
Max. resolution: 4096 × 2160@60 Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 8.84 MP@60Hz
Max. width: 144 to 8192, alignment: 2 alignment
Max. height: 144 to 8192, alignment: 1 alignment
Supports HDCP 2.2.
- Video Live View Output Interfaces1
- Type of Video Live View Output InterfaceHDMI 1.4
- Video Live View Output Resolution720p@60 Hz
- Loading ModeSingle port load 0.65 MP
- Audio Output
- Audio Output Interfaces1
- Audio Output Interface3.5 mm audio output
- System
- SystemAndroid 12
- Memory Capacity4 GB
- Storage Capacity32 GB
- CPU4-core 64-bit ARM cortex-A55 2.0 GHz
- Wireless
- Wi-FiSTA 2.4 GHz, AP 2.4&5 GHz
- BluetoothBluetooth 4.0
- Antenna3 × bar antenna
- Remote ControlSupports IR remote control and RF remote control
- Device Parameters
- Button
+: increase brightness
-: decrease brightness
Source: change signal source
- Serial Interface
1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact)+ 1 × RS-485 serial port for light perception (green Phoenix contact)
Baud rate: 115200, data bit: 8
- Power SwitchButton switch
- Broadcast Control Feature
- File FormatVideo, image, webpage, document, clock, text, and background music
- Video Playback Performance1-channel 4096 × 2160@60 Hz, 4-channel 1920 × 1080@60 Hz, 6-channel 1280 × 720@60 Hz
- WonderCast ClientSupported

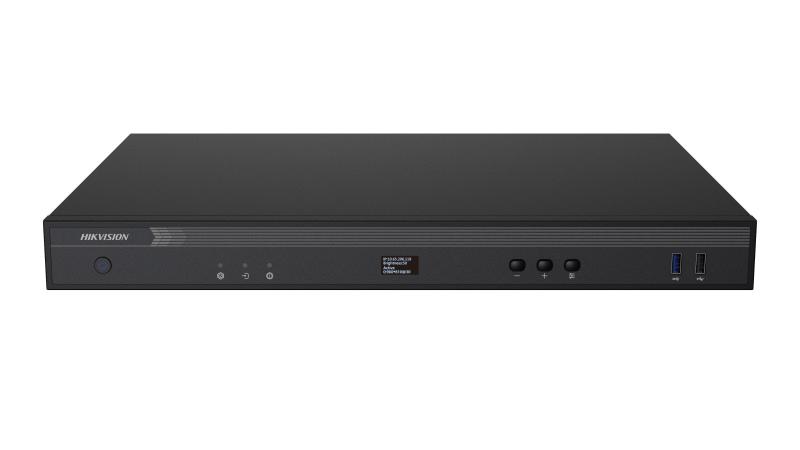

- Front Panel
- Indicator
Active: The device is running.
Source: The signal source is accessed.
Error: The device operation exception occurs.
- Power Switch
On: The device is started and running.
Off: The device is not powered on or is not started.
- Control Interface
- IR Input
1 × 3.5 mm connector
Supports the access of IR remote control.
