Qiymət sorğusu- Processing Performance
- Brightness Control1 to 100 tunable (level-by-level white balance)
- Input Frame Rate25 Hz to 120 Hz
- Grey Level1024
- Display Color1 Gigapixel
- Processing Depth8 bit/10 bit
- Image ScalingSupported
- Product Model
- Product ModelDS-DT90C-07HDPSI24NO/U
- Chassis
- Chassis Height2 U
- Chassis Width442 mm(17.4 inch)
- LED Controller Power
- Average Consumption110 W

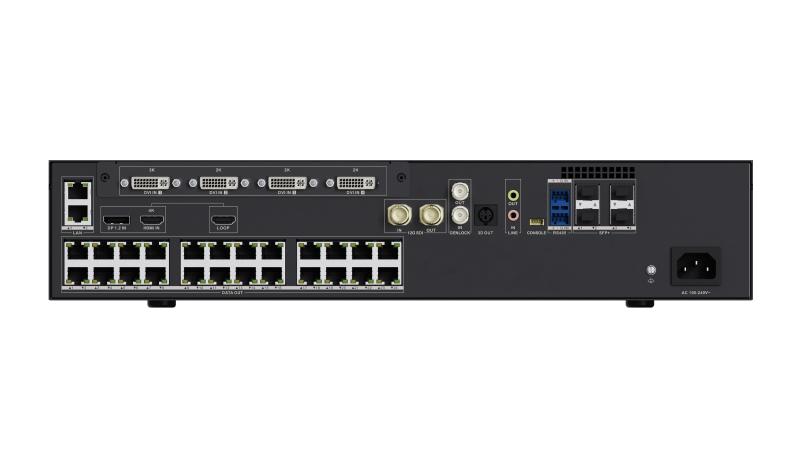

- Interface
- Optical Interface
4 × 10G optical ports; The functionality of the optical interfaces varies depending on the optical port mode.
In optical port transmit mode, OPT 1 to OPT 3 transmit data from Ethernet ports 1 to 8, 9 to 16, and 17 to 24, respectively, and OPT 4 is reserved.
In optical port receive mode, OPT 1 to OPT 4 serve as optical inputs and Ethernet ports serve as outputs.
Supports both single-mode and multi-mode transceiver modules:
Transmission distance of single-mode duplex transceiver module ≤ 10 km; Transmission distance of multi-mode duplex transceiver module ≤ 300 m
- 3D Interface1 × 3D port; To achieve 3D effect, use this port together with a 3D transmitter and compatible 3D glasses. After enabling 3D effect, when the video source format is side-by-side, top-and-bottom, or front/back frame, the output load capacity of the device is halved.
- USB Interface1 × USB 2.0
- Genlock Interface
Genlock interface supports Bi-Level, Tri-Level, and Blackburst.
IN: Sync signal input.
LOOP: Sync signal loop output.
The Genlock input supports frame rates from 23.98 Hz to 60 Hz. Standard Genlock signal generators support cascading of up to 20 devices.
- Serial Interface
1 × debugging port (4-pin connector)+ 2× RS-485 port (green Phoenix contact)
Baud rate: 115200
Data bit: 8
- Power
- Power Interface1, 100 VAC to 240 VAC, 50/60 Hz
- Network
- Control Network Port2 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Used for connecting to external networks, supporting multi-device network cascade management.
- Video Wall
- Background ImageSupported (quantity: 1, max. resolution: 1920 × 1200, min. resolution: 640 × 480, format: JPG/JPEG)
- General
- ScreenScreen type: LCD, dimension: 4.5 inch, resolution: 854 × 480
- Working Temperature0℃ to 50℃(32℉ to 122℉)
- Storage Temperature-10℃ to 50℃(14℉ to 122℉)
- Storage Humidity10% RH to 90% RH, no condensation
- Working Humidity10% RH to 90% RH, no condensation
- Dimensions (W × H × D)442 mm × 88 mm × 417 mm (17.40 inch × 3.46 inch × 16.42 inch) (excluding mounting ears)
- Packaging Size (W × H × D)642 mm × 180 mm × 587 mm (25.28 inch × 7.09 inch × 23.11inch)
- Net Weight5.9 kg (13.01 lb)
- Gross Weight8.42 kg (18.56 lb)
- Packing List1 × AC power cord, 2 × terminal block, 1 × regulatory compliance and safety information manual, 1 × RF remote control
- Product Type
- Product TypeLED controller
- Audio Input
- Audio Input InterfaceTotal 4: 1 × HDMI2.0+ 1× DP+1 × line-in+1 × 12G-SDI
- Video Input
- Video Input Interface Type1-out-of-2 selection (1 × HDMI2.0, 1 × DP1.2) +4 × DVI+1 × 12G-SDI
- Video Input Interfaces6
- Max. Video Input Resolution
HDMI2.0/DP1.2/12G-SDI: 4K
DVI: 1080P
- Video Input Resolution
HDMI2.0/DP1.2 port:
Max. resolution: 4096 × 2160@60 Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz
Max. width: 144 to 8192, alignment: 2 alignment
Max. height: 144 to 8192, alignment: 1 alignment
Supports HDCP 2.2. Interlacing signal input is not supported.,DVI port:
Max. resolution: 1920 × 1080@60Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 2.07 MP@60 Hz
Max. width: 144 to 2048, alignment: 2 alignment
Max. height: 144 to 2048, alignment: 1 alignment
Supports HDCP 1.4. Interlacing signal input is not supported.
- Video Input Processing Feature
DP1.2/HDMI/12G-SDI2.0/ processing depth: 8 bit/10 bit
Sampling format: RGB: 444, YUV: 444, YUV: 422,Built-in DVI processing depth: 8 bit
Sampling format: RGB: 444, YUV: 444, YUV: 422
- Video Output
- Max. Video Output Resolution15600000
- Loading Capacity for Video Output to LED
Single port load 650000,
Width 144 – 16384, Height 64 – 16384,
Width must be a multiple of 2 and height must be a multiple of 1
- LED Loading Interfaces24
- LED Loading Interface TypeRJ-45
- Video Loop Output Interface1-channel HDMI2.0+1-channel 12G-SDI loop output(DVI and HDMI ports correspond to 1-out-of-2 selection for signal loop outputs)
- Video Loop Output Resolution
HDMI2.0/12G-SDI port:
Max. resolution: 4096 × 2160@60 Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution, total resolution not exceeding 8.84 MP@60 Hz.
Max. width: 144 to 8192, width must be a multiple of 2.
Max. height: 144 to 8192, height must be a multiple of 1.
Supports HDCP2.2
- Loading ModeSingle port load 0.65 MP
- Audio Output
- Audio Output Interface1 × 3.5 mm audio
- Wireless
- Remote ControlSupported(RF remote control)

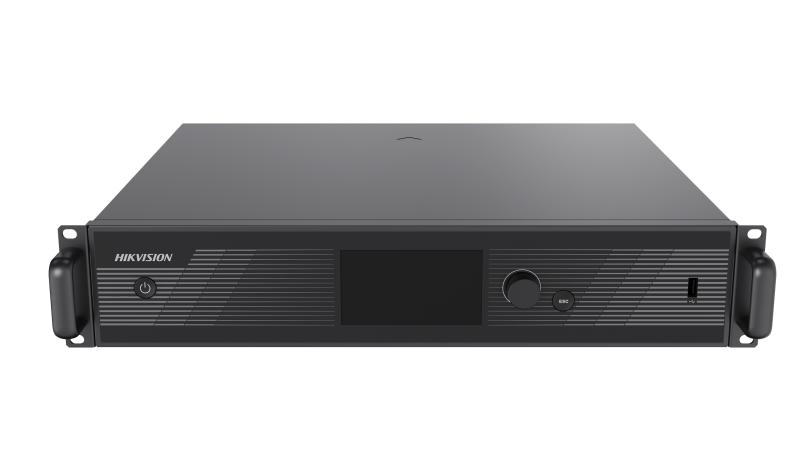

- Front Panel
- IndicatorUses the button indicator lights and switch indicator lights.
- Power Switch
Button switch
Steady On: Device is powered on and running.
Off: Device is not powered on or not started.
- knobUses the knob to select the menu, adjust the parameters and confirm the operation.
