Qiymət sorğusu- Processing Performance
- Brightness Control1 to 100 tunable (level-by-level white balance)
- Input Frame Rate25 Hz to 60 Hz
- Grey Level256
- Display Color16 MP
- Processing Depth8 bit
- Image ScalingSupported
- Product Model
- Product ModelDS-DT60V-03HI06NO
- Chassis
- Chassis Height1 U
- Chassis WidthHalf width
- LED Controller Interface
- Light Sensor PortNot supported
- LED Controller Power
- Average Consumption16.5 W
- Power Interface Quantity1
- Power Interface100 to 240 VAC, 50/60 Hz
- Interface
- USB Interface1 channel of USB 2.0
- Network
- Control Network Port
2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45)
Connects to the external network and supports multi-device network cascade management.
- Video Wall
- Open Windows3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window
- Layers per Device7
- Scenes10
- BackgroundImages1
- Background ResolutionMin.: 640 × 480, Max.: 1920 × 1200
- Background FormatJPG/JPEG
- Subtitles1
- Subtitle Width32760
- Subtitle FontSupports Xiaomi font and custom font
- General
- Screen128 × 64, OLED screen
- Working Temperature-10°C to 50°C
- Storage Humidity10% to 90%
- Working Humidity10% to 90%
- Storage Temperature-10°C to 50°C
- Packaging Size (W × H × D)353 mm × 237 mm × 89 mm (13.9 inch × 9.33 inch × 3.50inch)
- Net Weight1.18 kg (2.60 lb)
- Gross Weight1.62 kg (3.57 lb)
- Dimensions (W × H × D)210 mm × 180 mm × 42 mm (8.27 inch × 7.09 inch × 1.65 inch)
- Packing List1 × AC power cord, 1 pair of connecting brackets, 1 pair of mounting brackets, 1 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 × RF remote control
- Product Type
- Product TypeLED controller
- Audio Input
- Audio Input Interfaces3
- Audio Input Interface Type3 channels of HDMI input with embedded audio
- Video Input
- Video Input Interfaces3
- Video Input Interface TypeHDMI 1.4
- Max. Video Input Resolution1080p
- Video Input Resolution
HDMI 1.4 port:
Max. resolution: 1920 × 1200@60Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz
Max. width: 144 to 4096, alignment: 2 alignment
Max. height: 144 to 4096, alignment: 1 alignment
Supports HDCP 1.4. Interlacing signal input is not supported.
- Video Input Processing Feature
Processing depth: 8 bit
Sampling format:
RGB: 444
YUV: 444
YUV: 422
- Video Output
- Max. Video Output Resolution3900000
- Loading Capacity for Video Output to LED
Single port load 650000,
Width 144 – 5120,
Height 64 – 5120,
Width must be a multiple of 2 and height must be a multiple of 1
- LED Loading Interfaces6
- LED Loading Interface TypeRJ-45
- Video Live View Output Interfaces1
- Type of Video Live View Output InterfaceHDMI 1.4
- Video Live View Output Resolution720p@60 Hz
- Loading ModeSingle load port 0.65 MP
- Audio Output
- Audio Output Interface1 × 3.5 mm audio
- Wireless
- Remote ControlSupports IR remote control and RF remote control
- Device Parameters
- Button
+: increase brightness
-: decrease brightness
Source: change signal source
- Serial Interface1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact)Baud rate: 115200, data bit: 8
- Power SwitchButton switch

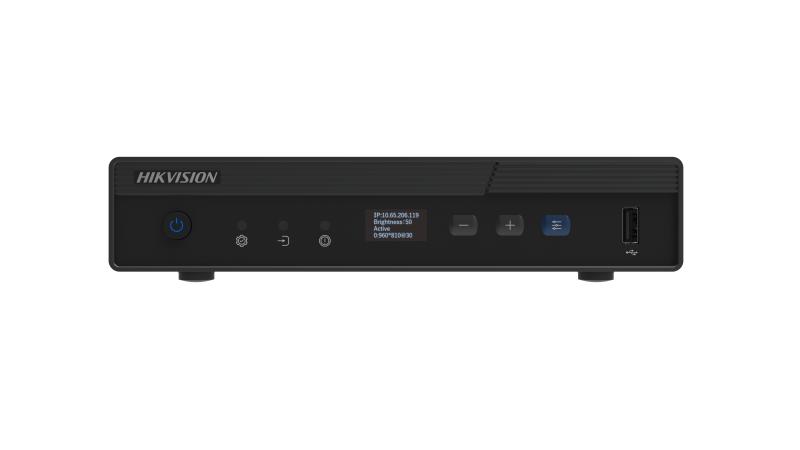

- Front Panel
- Indicator
Active: The device is running.
Source: The signal source is accessed.
Error: The device operation exception occurs.
- Power Switch
On: The device is started and running.
Off: The device is not powered on or is not started.
- Control Interface
- IR Input
1 × 3.5 mm connector
Supports the access of IR remote control.
