Qiymət sorğusuBrightness Control | 1-100 Levels |
Frame Frequency | 30HZ-60HZ |
Grey Level | 256 |
Display Color | 1 Billion |
Processing Depth | 8bit |
Image Scaling | Support |

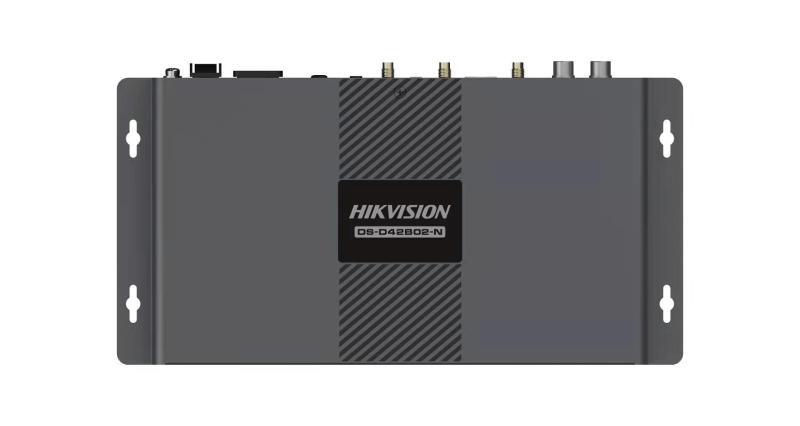

Product Model | DS-D42B02-N |
Chassis Height | 0.9U |
Chassis Width | 3.12U |
Product Type | LED Controller |
Average Consumption | ≤18W |
Number of power interfaces | 1 |
Power interface specifications | 100-240V~，50/60Hz，0.6A |
Working Temperature | -20℃～+60℃ |
Storage Humidity | 0%RH～80%RH |
Working Humidity | 0%RH～80%RH |
Storage Temperature | -40℃～+80℃ |
Packaging Size (W × H × D) | 385.0mm×280.0mm×75.0mm |
Net Weight | 1234g |
Gross Weight | 1653.6g |
Dimensions (W × H × D) | 274.3mm×139.0mm×40.0mm |
Packing List | “1x Wi-Fi omnidirectional antenna;1x AC power cord;1x Quick Start Guide;1x Packing list” |

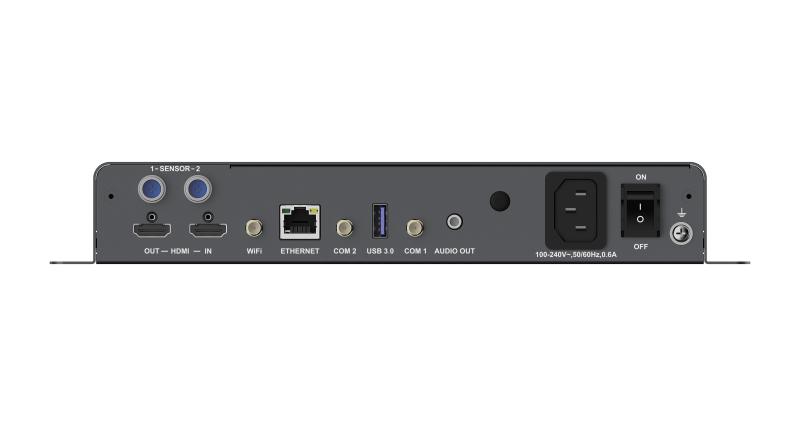

Audio Input Interface(s) | 1 |
Audio Input Interface Type | HDMI INLINE |
Video Input Interface(s) | 1 |
Video Input Interface Type | HDMI1.4 |
Max. Input Resolution | 1080p@60hz |
Video Input Resolution | 1080p@60hz |
Video Input Processing Characteristics | Processing depth 8 BIT ;Sampling format:;RGB:444;YUV:444;YUV:422″ |
Max. Output Resolution | 1.3 Million |
Loading Capacity for Video Output to LED | Single port with load 650000;Width 64~4096;Height 64~4096 |
LED Loading Interfaces | 2 |
LED Loading Interface Type | RJ45 |
Number of video ring pass output interfaces | 1 |
Video looping output interface type | HDMI1.4 |
Video looping output resolution | 1080p@60hz |
Audio Output Interface(s) | 1 |
Audio Output Interface Type | 1 LINE OUT 3.5mm audio out |
Screen | NA |
Key | SWITCH |
pilot lamp | PWR:RED,;Staying on-The power supply is working properly;SYS:GREEN,;Flashing once every 2s-The operating system is functioning normally;Staying on/off-The operating system is malfunctioning;CLOUD:GREEN;Staying on-The DS-D42B02-N is connected to the Internet and the connection is available;Flashing once every 2s-The DS-D42B02-N is connected to VNNOX and the connection is available;Flashing once every second-The DS-D42B02-N is upgrading the operating system;Flashing once every 0.5s-The DS-D42B02-N is copying the upgrade package.;RUN:GREEN;Flashing once every second-The FPGA has no video source;Flashing once every 0.5s-The FPGA is functioning normally;Staying on/off-The FPGA loading is abnormal” |
Control network port | 2 RJ45, 10M/100M/1000M adaptive Ethernet ports;Used to connect to external networks, can support multi-device network cascade management |
3D interface | NA |
IR input | NA |
Serial Interface | 1XGigabit Ethernet port |
Light perception | 2XSENSOR |
USB | 1XUSB 3.0 |
On-off | Switch |
