Hikvision DS-2DE2C400MW-DE(S7)

Artikul: HC-DS-2DE2C400MW-DE(S7)

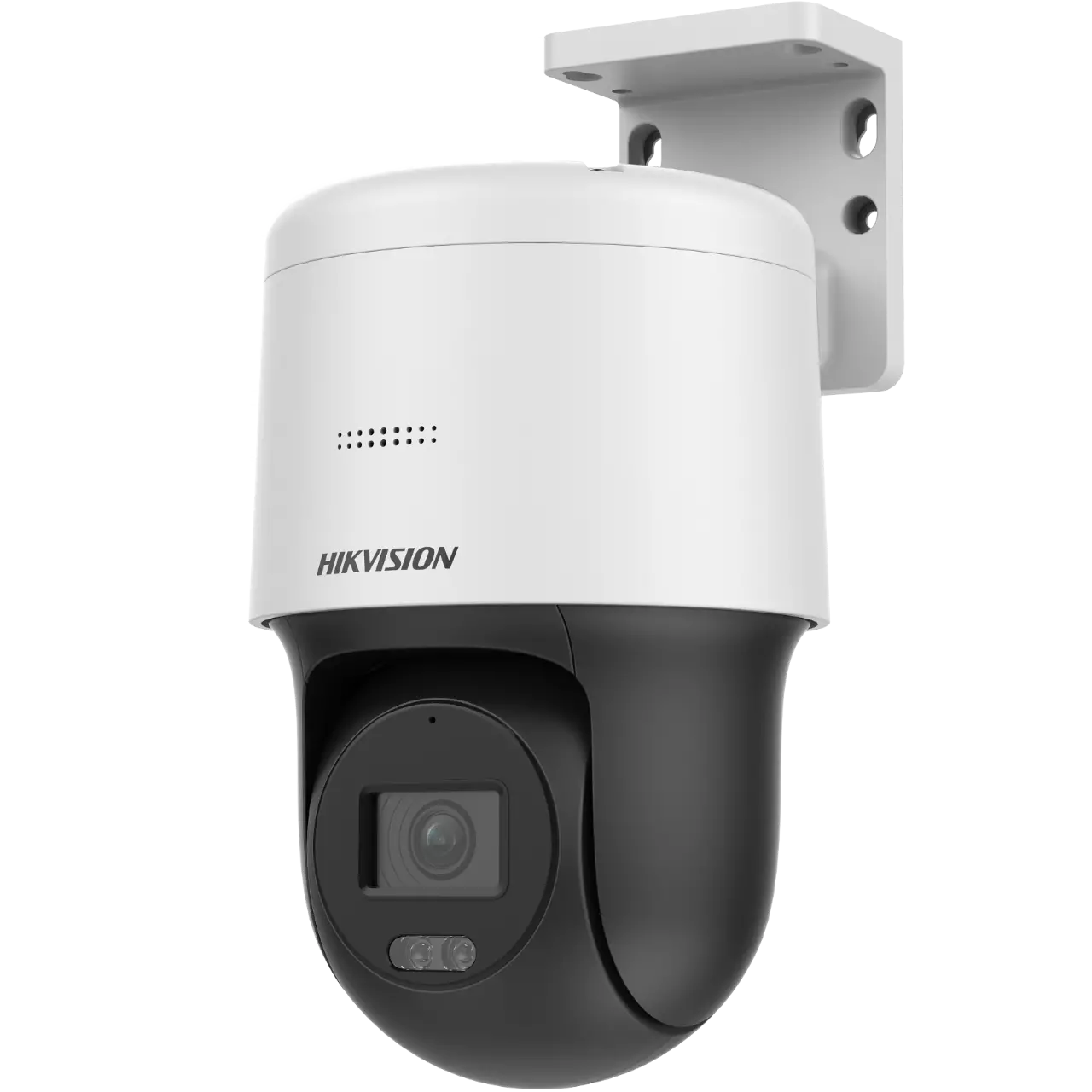

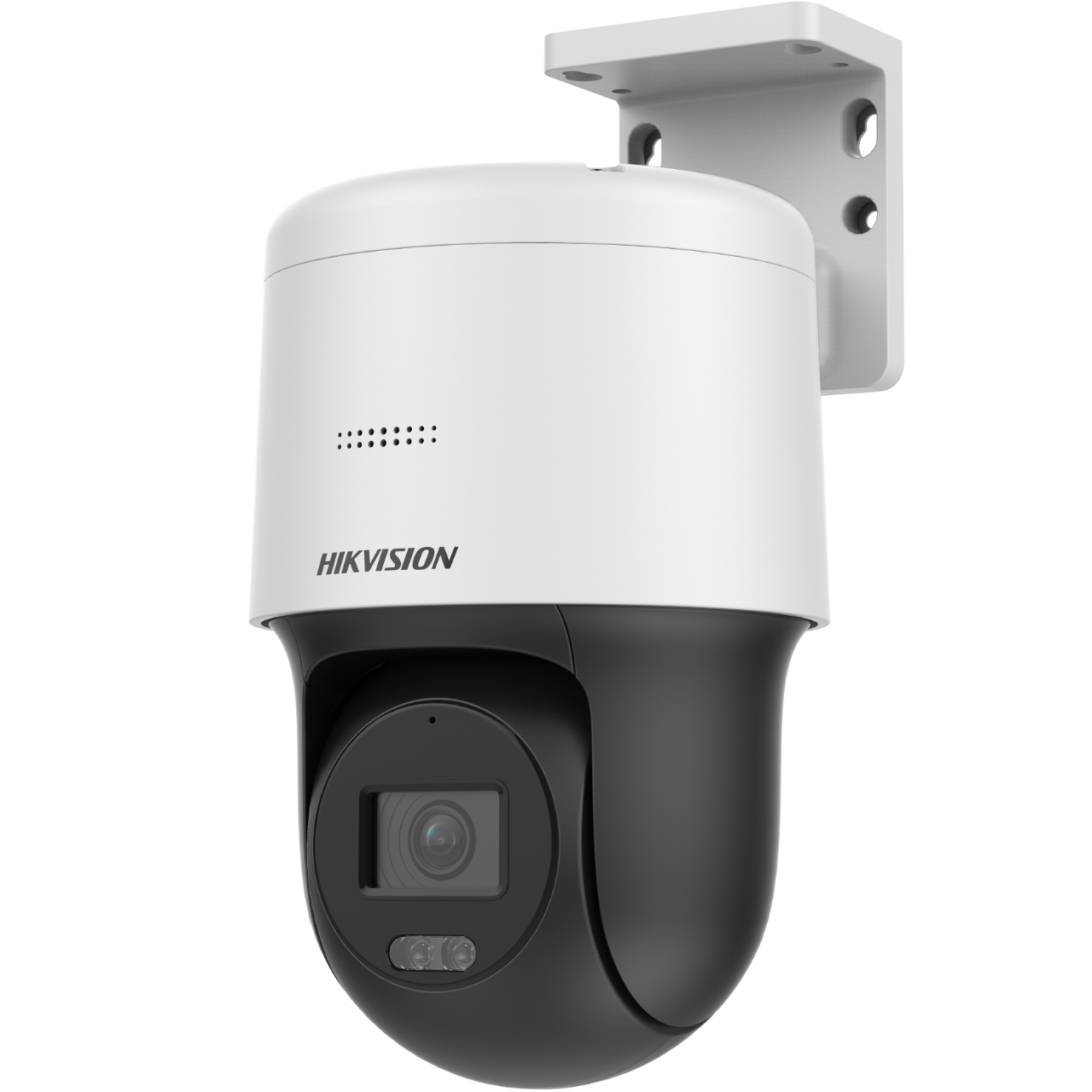

Hikvision DS-2DE2C400MW-DE(S7) — 4 MP sabit çöl Dual Light PT IP kamera

Image Sensor: 1/3″ Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.005 Lux @(F1.2，AGC ON), B/W: 0 Lux with IR
Focal Length: 2.8 mm/4 mm
FOV: 2.8 mm, horizontal FOV 97°, vertical FOV 52.3°, diagonal FOV 114.3° 4 mm, horizontal FOV 79°, vertical FOV 42.4°, diagonal FOV 93.3°
Aperture: F1.6
Supplement Light Type: IR & White Light
Supplement Light Range: White Light Distance: up to 30 m IR Distance: up to 30 m

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Lens
Focal Length2.8 mm/4 mm
FOV2.8 mm, horizontal FOV 97°, vertical FOV 52.3°, diagonal FOV 114.3°
4 mm, horizontal FOV 79°, vertical FOV 42.4°, diagonal FOV 93.3°
ApertureF1.6

Audio
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)/16-64Kbps(AAC)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
APIOpen Network Video Interface, ISAPI, SDK

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in MicrophoneYes
Built-in SpeakerYes
ResetYes

Event
Basic EventMotion detection
LinkageUpload to FTP, notify surveillance center, send email, upload to memory card

General
Power12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, max. 10.8 W
DimensionCamera dimension: 162 mm × 120 mm × 234.2 mm (6.4″ × 4.7″ × 9.2″)
Package dimension: 205 mm × 167 mm × 289 mm (8.1″ × 6.6″ × 11.4″)
Camera weight: 700 g (1.5 lb.)
With package weight: 1250 g (2.8 lb.)
Operating ConditionWith supplement light on: -30 ℃ to 40 ℃. Humidity 95% or less (non-condensing)
With supplement light off: -30 ℃ to 50 ℃. Humidity 95% or less (non-condensing)
General FunctionMirror, password protection, watermark

Approval
EMCFCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
IC (ICES-003: Issue 6, 2016)
ProtectionIP65
