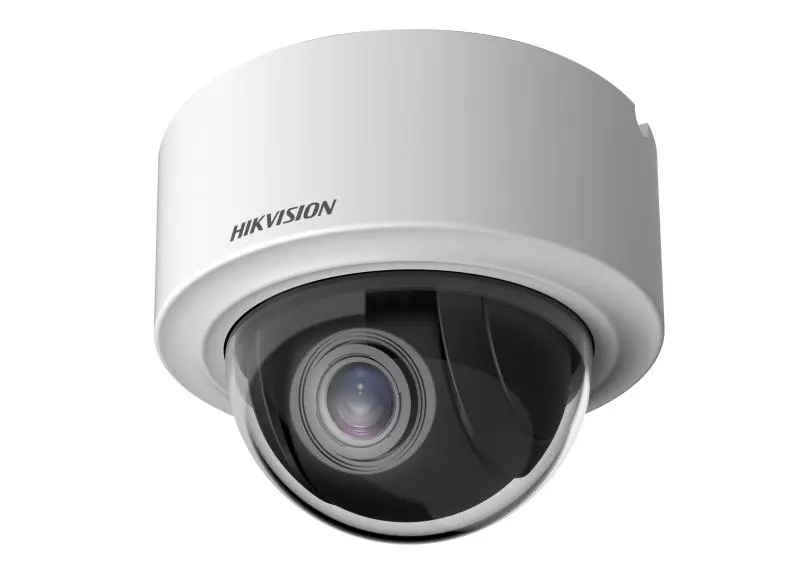

4x Zoom və IR ilə 4MP Mini PT Dome Şəbəkə Kamerası
4x Zoom və IR ilə 4MP Mini PT Dome Şəbəkə Kamerası
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/2.8″ progressive scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON)
- Shutter Speed1/1 to 1/30,000 s
- Day & NightIR cut filter
- Zoom4 × optical, 16 × digital
- Slow ShutterYes
- Lens
- Focal Length2.8 mm/ 4 mm
- FOVHorizontal field of view: 103.4° to 33° (wide-tele)
Vertical field of view: 53.8° to 18.9° (wide-tele)
Diagonal field of view: 122.6° to 37.8° (wide-tele) - FocusAuto, semi-auto, manual
- ApertureMax. F1.5
- Zoom SpeedApprox. 2.0 s
- PTZ
- Movement Range (Pan)350°
- Movement Range (Tilt)0° to 90°
- Pan SpeedPan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
- Proportional PanYes
- Presets300
- Preset FreezingYes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Park ActionPreset, patrol scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Scheduled TaskPreset, patrol scan, dome reboot, dome adjust, aux output
- Power-off MemoryYes
- Video
- Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) - Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) - Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) - Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 - Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2,PCM
- Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
- Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Simultaneous Live ViewUp to 20 channels
- APIISUP, ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface
- User/HostUp to 32 users; 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter
- Network StorageNAS (NFS, SMB/CIFS)
- ClientiVMS-4200, Hik-Connect, HikCentral
- Web BrowserFirefox 52+, Safari 11+, Chrome 57+, IE11
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night SwitchDay, night, auto, scheduled-switch
- Wide Dynamic Range (WDR)120 dB WDR
- SNR≥ 52 dB
- DefogDigital defog
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
- Regional FocusYes
- Regional ExposureYes
- Interface
- Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω - Alarm1 input, 1 output
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- ResetYes
- Event
- Basic EventMotion detection, video tampering alarm, alarm input and output, exception
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan)
- General
- Power12 VDC, PoE (802.3af)
Max. 10 W - DimensionØ140.7 mm × 107.2 mm (Ø5.54″ × 4.22″)
- Approx. 950 g (2.09 lb.)
- MaterialADC12, PC
- Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- General FunctionPrivacy mask, mirror, password protection, watermark, IP address filter
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 62368-1)
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
LOA (IEC/EN 60950-1) - EnvironmentCE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006) - ProtectionIP66 (IEC 60529-2013), TVS 4000V lightning protection, surge protection and voltage transient protection
