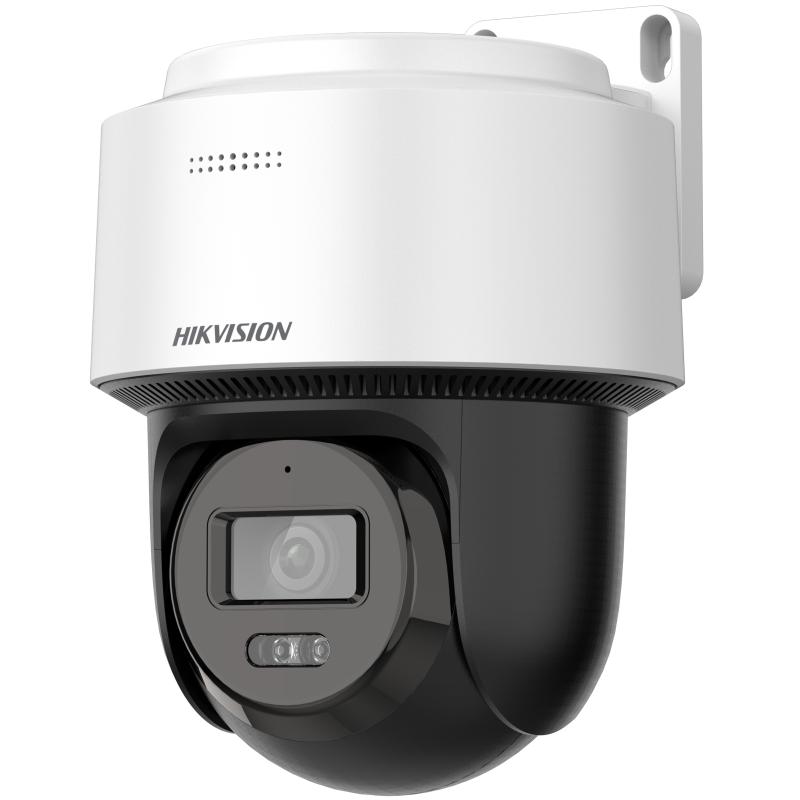

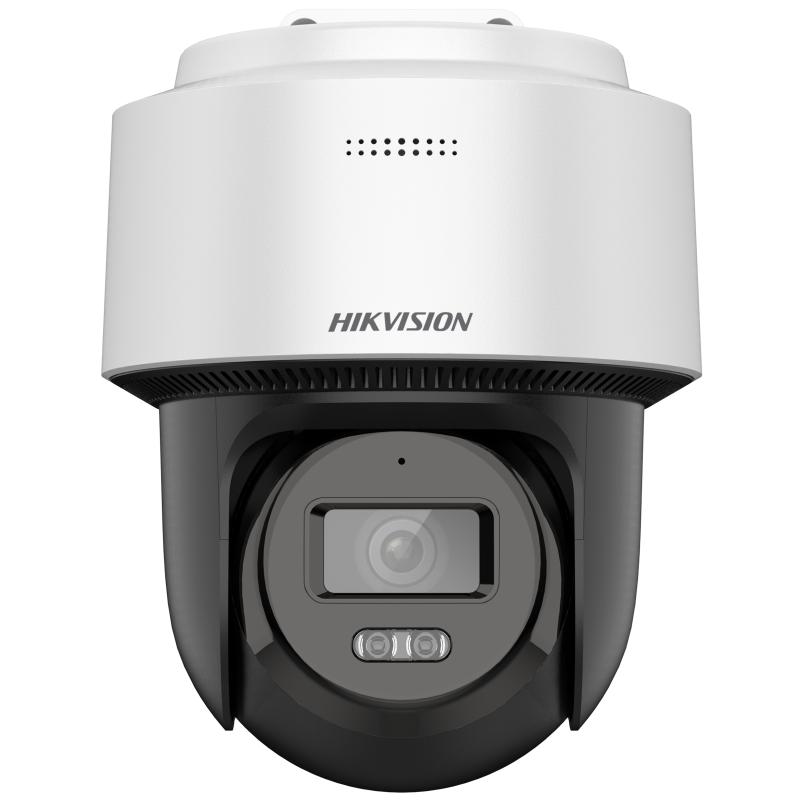

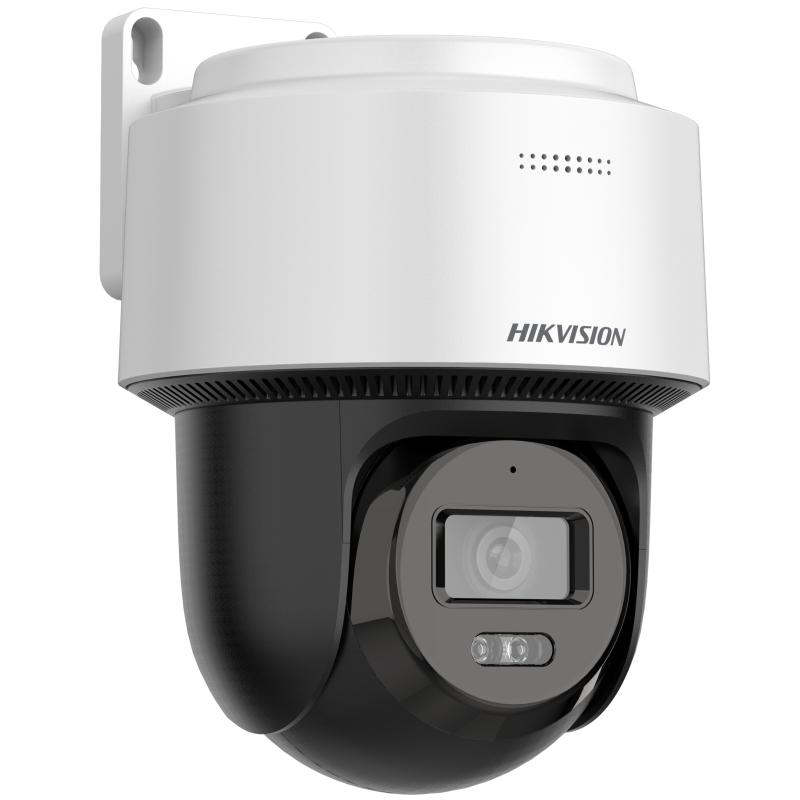

4x Zoom və IR ilə 4MP Mini PT Dome Şəbəkə Kamerası
4x Zoom və IR ilə 4MP Mini PT Dome Şəbəkə Kamerası
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/2.4″ Progressive Scan CMOS
- Max. Resolution3200 × 1800
- Min. IlluminationColor: 0.001 Lux @ (F1.6, AGC ON),B/W: 0.0005 Lux @ (F1.6, AGC ON),0 Lux with light
- Lens
- Focal Length2.8 mm, 4 mm
- FOV
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 97°
- ApertureF1.6
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- PTZ
- Movement Range (Pan)0° to 345°
- Movement Range (Tilt)0° to 80°
- Pan SpeedUp to 25°/s
- Tilt SpeedUp to 20°/s
- Video
- Main Stream
50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (3200 × 1800, 2688×1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265/H.264/Smart265/Smart264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeMain profile,Baseline profile,High profile
- H.265 TypeMain profile
- Audio
- Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, RTCP, TCP/IP, UDP, DHCP, Bonjour
- API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
- ClientiVMS-4200, Hik-Connect, HikCentral Professional, Hik-Partner Pro
- Image
- Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask4 rectangular privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Built-in Microphone1 built-in microphone
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Speaker1 built-in speaker
- ResetYes
- Event
- Basic EventMotion detection (support alarm triggering by specified target type (human)), exception
- General
- Power
12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 10.5 W
- Dimension
Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45″ × 7.31″ × 5.19″),
With package dimension: 224 mm × 164 mm × 230 mm (8.82 × 6.46″ × 9.06″)”
-
Camera weight: 620 g (1.37 lb.),
With package weight: 1000 g (2.20 lb.)
- MaterialPlastic
- Operating Condition-10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
- General FunctionMirror, password protection, watermark
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
- SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
- EnvironmentCE-RoHS (2011/65/EU),Reach (Regulation (EC) No 1907/2006)
- ProtectionIP66 (IEC 60529-2013)
