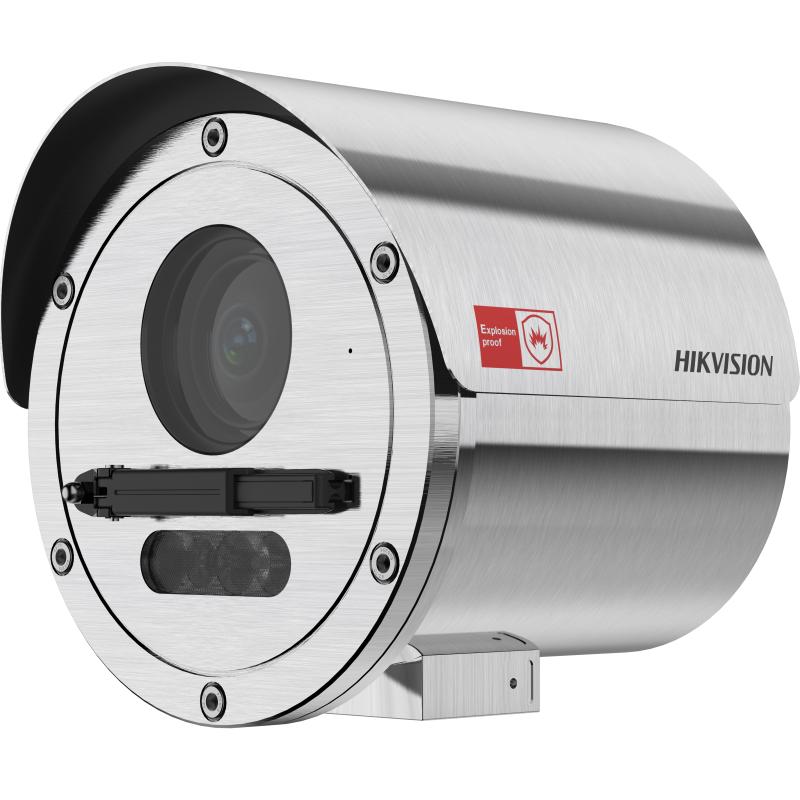

Hikvision DS-2XE6A46G0-D(A)LIZHRS(316L)

1/1.8″ Progressive Scan CMOS

2560 × 1440

Color: 0.001 Lux @ (F1.6, AGC ON),B/W: 0.0002 Lux @ (F1.6, AGC ON)

1/3 s to 1/100,000 s

IR cut filter

4.8 to 153.6 mm: horizontal FOV 60.1° to 2.3°, vertical FOV 35.1° to 1.3°, diagonal FOV 67.5°to 2.7°

Wide: D: 92.4 m, O: 36.7m, R: 18.5 m, I: 9.2 m
Tele: D: 1855.2 m, O: 736.2 m, R: 371.0 m, I: 185.5 m

IR,White Light

IR: up to 150 m
White Light: up to 50 m

850 nm

Supports 4 model packages, and each model package supports detecting 16 target types and classfing 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
Built-in PPE_Detection

50 Hz：50 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
60 Hz：60 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

50 Hz：25 fps（704 × 576，640 × 480，352 × 288）
60 Hz：30 fps（704 × 480，640 × 480，352 × 240）

Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG

32 Kbps to 16 Mbps

Baseline Profile,Main Profile,High Profile

Main Profile

CBR,VBR

H.264 and H.265 encoding

8 fixed regions for each stream

No

Mono sound

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC_LC/MP3

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

8 kHz/16 kHz/32 kHz/48 kHz

Yes

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, RTCP

Up to 20 channels

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Up to 32 users. 3 user levels: administrator, operator and user

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS1.2, TPM 2.0(FIPS 140-2 level 2)

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

iVMS-4200, Hik-Connect, Hik-Central

Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Yes

saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser

Day,Night,Auto,Schedule

120 dB

≥ 52 dB

BLC,HLC,3D DNR

EIS (Built-in gyroscope to improve EIS performance)

1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

Yes, 2 built-in microphones

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

1 input, 1 output (max. 24 VDC, 1 A)

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

FC interface, built-in fiber module (155M, TX1310/RX1550nm wavelength, single module fiber, up to 20 km transmission distance)

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart)

Unattended baggage detection, object removal detection,audio exception detection,Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)

Detects up to 40 faces simultaneously,
Supports swing left and right from -70° to +70°, tilt up and down from -50° to +50°,
Uploads face with background and closed-up face pictures

Yes

Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,
Two report types are available, space heat map and time heat map line chart.

Blocklist and allowlist: up to 10,000 records
Captures vehicle that has no license plate
Support license plate recognition of motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection
Supports parameter settings: alarm times per exception, alarm interval, first alarm delay
Supports searching real-time number of people
People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading
Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)
Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: absence detection, on/off duty detection Supports parameter settings: person on duty, absence duration

-A: 100 V to 240 V, 0.4 A to 0.2 A, max. 22 W; PoE (IEEE 802.3at class 4), max. 22 W
-D: 9 V to 36 V, 2.2 A to 0.6 A, max. 22 W; PoE (IEEE 802.3at class 4), max. 22 W

Electro-polished SUS316L

330.4 mm × 208.3 mm × 201.7 mm (13″ × 8.2″ × 7.9″)

522 mm × 312 mm × 302 mm (20.55″ × 12.28″ × 11.89″)

Approx. 8 kg (17.63 lb.)

Approx. 9.4 kg (20.72 lb.)

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Yes

Armored Cable:1.3 or 5 or 10 m (4.26 ft. or 16.40 or 32.81 ft.)

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1

IK10: IEC 62262:2002,IP66: IEC 60529-2013,IP68: IEC 60529-2013,IP69: IEC 60529-2013

ATEX: Ex II 2 G D Ex db ib IIC T6 Gb/Ex ib tb IIIC T80 °C Db IP68
IECEx: Ex db ib IIC T6 Gb/Ex ib tb IIIC T80 °C Db IP68
For explosive gas atmospheres, the maximum surface temperature is 85 °C;
For flammable dust atmospheres, the maximum surface temperature is 80 °C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
