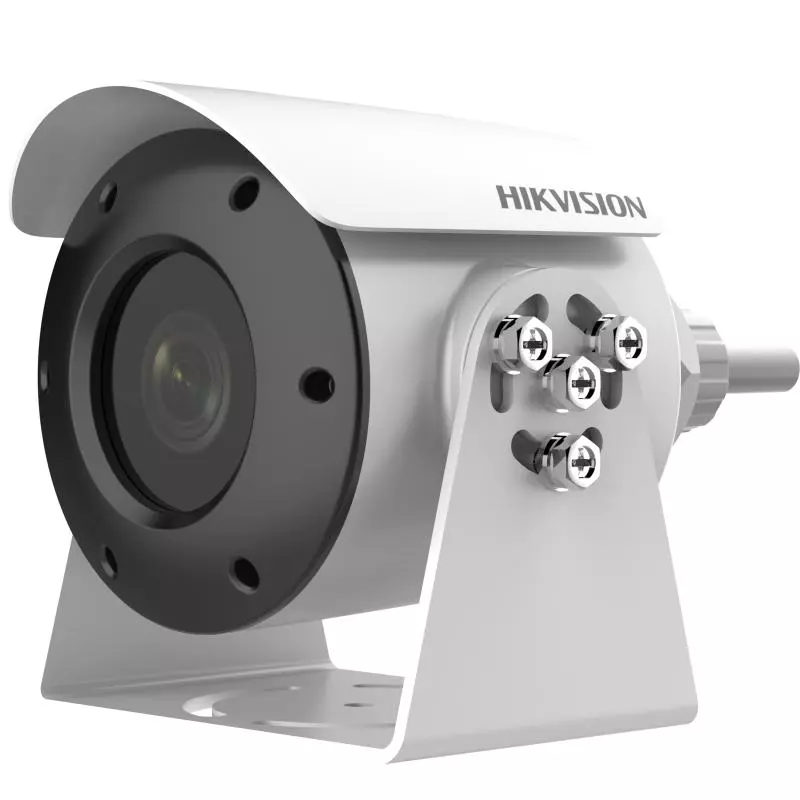

Hikvision DS-2XE6025G0-I(B)

Artikul: a00f98e6b5b4

Alüminium ərintidən 2MP partlayışa davamlı sabit Bullet kamera

Partlayışa davamlı konstruksiya; kamera beynəlxalq ATEX&IECEx sertifikatlarından keçib və qazlı və tozlu təhlükəli mühitlərdə istifadə oluna bilər
IP68 suya davamlı qoruma, açıq məkanlarda istifadə zamanı suyun daxil olması ilə bağlı narahatlığa ehtiyac yoxdur
Daxili IR işıqlandırma, 30 metr IR məsafəsi zəif işıqlı və ya tam qaranlıq mühitdə yaxşı görünürlük təmin edir

Bakıya – bu gün
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

ədəd stokda

2 saata çatdırılma

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON),B/W: 0.005 Lux @ (F1.2, AGC ON),0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: -45° to 45°,tilt: -30° to 30°

Lens
Lens TypeFixed focal lens, 4 and 6 mm optional
Focal Length & FOV
4 mm, horizontal FOV 87.6°, vertical FOV 44.4°, diagonal FOV 104.9°

6 mm, horizontal FOV 53.9°, vertical FOV 28.8°, diagonal FOV 62.8°
Lens MountM12
ApertureF1.6

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface,ISAPI,SDK,ISUP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage
Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+,

Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters SwitchYes
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC,HLC
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,

*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

Event
Basic Event Motion detection,exception
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
LinkageUpload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture

General
Power
24 VDC, 0.3 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7.5 W
MaterialAluminum alloy
Dimension173.5 mm × 137.8 mm × 137.8 mm (6.8″ × 5.4″ × 5.4″)
Package Dimension313 mm × 213 mm × 208 mm (12.3″ × 8.4″ × 8.2″)
Approx. 2.04 kg (4.5 lb.)
With Package WeightApprox. 2.84 kg (6.3 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,password protection,anti-banding
Cable Length1.3 m (4.27 ft.)

Approval
EMC
FCC: 47 CFR Part 15, Subpart B

CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014

RCM: AS/NZS CISPR 32: 2015

IC: ICES-003: Issue 7
Safety
CB: IEC 62368-1: 2014+A11

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU

Reach: Regulation (EC) No 1907/2006
ProtectionIP68: IEC 60529-2013, IK08: IEC 62262:2002
Explosion-Proof Protection
ATEX: II 2 G D Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68

IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68

For explosive gas atmospheres, the maximum surface temperature is 85°C;

For flammable dust atmospheres, the maximum surface temperature is 80°C;

IIC: for explosive gas atmospheres other than mines susceptible to firedamp;

For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
