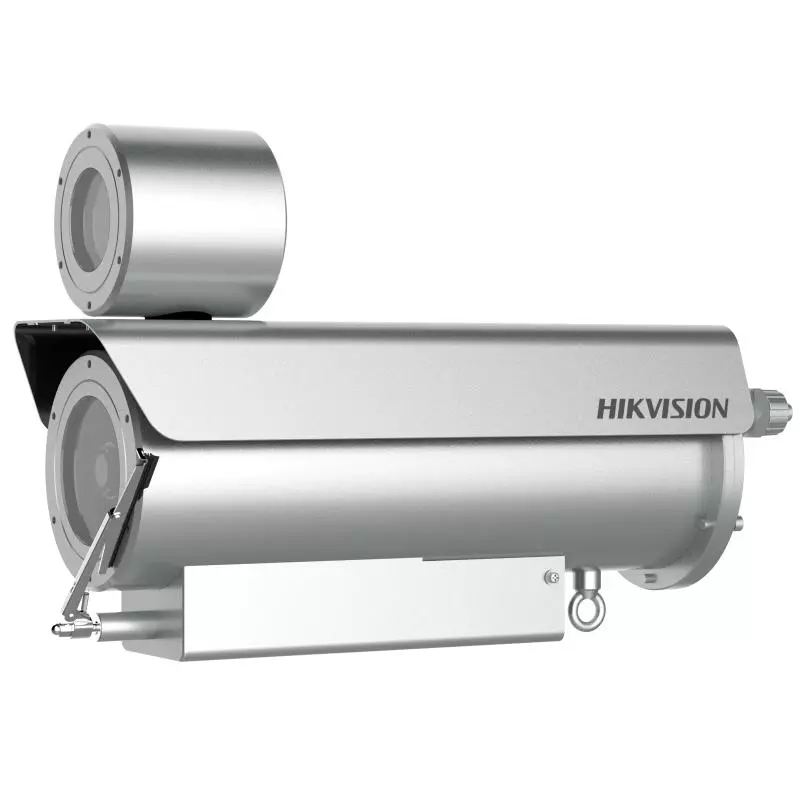

Hikvision DS-2DB4236I-CWX(T5/316L)
316L 2 MP 36x partlayışa davamlı varifokal Bullet kamera
316L 2 MP 36x partlayışa davamlı varifokal Bullet kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Lens
- FocusAuto,Semi-auto,Manual
- Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 94° to 38°, vertical FOV 49.9° to 21.3°, diagonal FOV 112.3° to 43.7°
8 to 32 mm, horizontal FOV 42.2° to 15.1°, vertical FOV 23.4° to 8.6°, diagonal FOV 49.6° to 17.3° - Iris TypeAuto-iris
- Aperture2.8 to 12 mm: F1.4
8 to 32 mm: F1.7
- Pixel Density
- DORI2.8 to 12 mm:
D: 44.1 to 151.7 m, O: 17.5 to 60.2 m, R: 8.8 to 30.3 m, I: 4.4 to 15.2 m
8 to 32 mm:
D: 150.3 to 400 m, O: 59.7 to 158.7 m, R: 30.1 to 80 m, I: 15 to 40 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range2.8 to 12 mm: up to 80 m
8 to 32 mm: up to 150 m - Smart Supplement LightYes
- IR WavelengthUp to 850 nm
- Video
- Main Stream50 Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) - Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) - Third Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) - Video Compression Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 - Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseLine Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Target CroppingYes
- Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
- Audio TypeMono sound
- Network
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI, SDK, ISUP
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported. - ClientiVMS-4200, Hik-Connect, Hik-Central
- Web BrowserPlug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Not recommended: Safari 11+, Edge
- Image
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
- Wide Dynamic Range (WDR)120 dB
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR,Defog
- Image Parameters SwitchYes
- SNR≥ 50 dB
- Privacy Mask8 programmable polygon privacy masks
- Interface
- Video Output1 Vp-p Composite Output (75 Ω/BNC)
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing. - Audio1 input (line in), 1 output (line out)
- Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A or 110 VAC, 500 mA)
- Event
- Basic Event Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle))
Scene change detection, audio exception detection - LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
- General
- Power100 VAC to 240 VAC, 0.38 A to 0.18 A, max. 22.6 W, three-core terminal block
PoE: IEEE 802.3at, 42.5 V to 57 V, 0.56 A to 0.42 A, max. 23.6 W - Material316L + Anti-corrosion coating
- Dimension513.2 mm × 169 mm × 308 mm (20.2″ × 6.65″ × 12.13″)
- Package Dimension753 mm × 313 mm × 424 mm (29.65″ × 12.32″ × 16.69″)
- Approx. 17.42 kg (38.40 lb.)
- With Package WeightApprox. 19.80 kg (43.65 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- HeaterYes
- WiperYes
- Cable Length1.1 m (3.61 ft.)
- General FunctionAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
- Approval
- EMCFCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)
CE: CE-EMC (EN 50130-4: 2011+A1: 2014, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013)
IC: IC-VoC (ICES-003 Issue 7: 2020)
KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28) - SafetyCB: IEC 60950-1
CE: CE-LVD (EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013)
LOA: SANS IEC60950-1 - EnvironmentCE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
- ProtectionIP68: IEC 60529-2013
- Explosion-Proof ProtectionATEX: II 2 G Ex db op is IIC T6 Gb/ II 2D Ex tb op is IIIC T80°C Db
IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db
For explosive gas atmospheres, the maximum surface temperature is 85°C;
For flammable dust atmospheres, the maximum surface temperature is 80°C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22. - Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
