Hikvision DS-2XE6746G0-LIZHS(304)

Artikul: HC-DS-2XE6746G0-LIZHS(304)

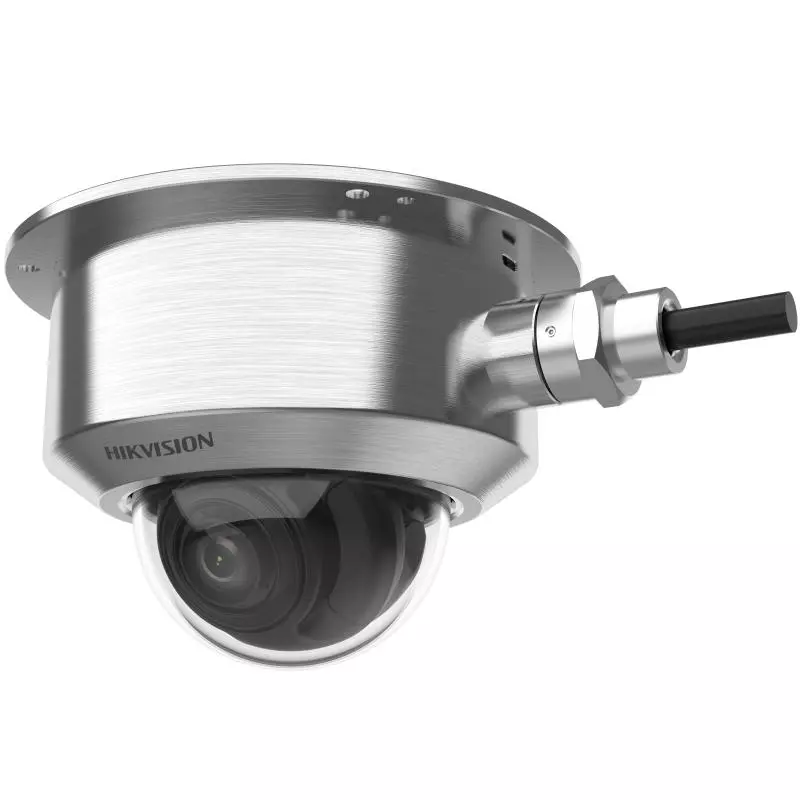

Hikvision DS-2XE6746G0-LIZHS(304) — 304 4MP Explosion-proof Vari-focal Dome

Image Sensor: 1/1.8″ Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON)
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Remote adjustment (Max. 1000 cycles) Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°
Focal Length & FOV: 2.8 to 12 mm: horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1°to 45.7° 8 to 32 mm: horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°
Aperture: 2.8 to 12 mm: F1.47 to F2.5 8 to 32 mm: F1.71 to F1.74

Sürətli çatdırılma

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

Rəsmi zəmanət

36 aya qədər
istehsalçıdan

100% orijinal

Hikvision-un rəsmi distribyutoru

Texniki dəstək

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Hissə-hissə alın

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Müqayisə et

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON)
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentRemote adjustment (Max. 1000 cycles)
Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°

Lens
Focal Length & FOV2.8 to 12 mm: horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1°to 45.7°
8 to 32 mm: horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°
Aperture2.8 to 12 mm: F1.47 to F2.5
8 to 32 mm: F1.71 to F1.74

O2DCPVS
DORI2.8 to 12 mm:
Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m
Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.2 m
8 to 32 mm:
Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m
Tele: D: 400.0 m, O: 158.7 m, R: 80.0 m, I: 40.0 m

Illuminator
Supplement Light TypeIR,White Light
Supplement Light RangeUp to 40 m
IR Wavelength850 nm

AI Open Platform
Model SpecificationSupports 4 model packages, and each model package supports detecting 16 target types and classfing 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.

Video
Main Stream50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 10 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)5 fixed regions for main stream
Target CroppingYes

Audio
Audio TypeMono sound
Audio Compression MP3/MP2L2/G.722.1/AAC-LC/PCM/G.726/G.711
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, RTCP
Simultaneous Live ViewUp to 20 channels
APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/HostUp to 32 users
3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS1.2, TPM 2.0(FIPS 140-2 level 2)
Network StorageNAS (NFS, SMB/CIFS)
ClientiVMS-4200,Hik-Connect
Web BrowserPlug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters SwitchYes
Image Settingssaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
Image StabilizationEIS

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 2 input, 1 output (max. 24 VDC, 1 A)
Power Output12 VDC, max. 100 mA
Fiber OpticalFC interface, built-in fiber module (155M, TX1310/RX1550nm wavelength, single module fiber, up to 20 km transmission distance)

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart),video quality diagnosis,alarm input and output
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection,Unattended baggage detection, object removal detection,scene change detection, loitering detection, people gathering detection, fast moving detection, parking detection,audio exception detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning

Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Face CaptureDetects up to 40 faces simultaneously,
Supports swing left and right from -70° to +70°, tilt up and down from -50° to 50°,
Uploads face with background and closed-up face pictures
People Countingyes
Queue ManagementSupports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
Road Traffic and Vehicle DetectionBlocklist and allowlist: up to 10,000 records
Captures vehicle that has no license plate
Support license plate recognition of motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)
Regional People CountingSupports up to 8 detection regions, and independent arming schedule and linkage method
Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection
Supports parameter settings: alarm times per exception, alarm interval, first alarm delay
Supports searching real-time number of people
People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading
Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)
Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
On/Off Duty DetectionSupports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: absence detection, on/off duty detection Supports parameter settings: person on duty, absence duration

General
Power9 to 36 VDC, 2.06 A to 0.52 A, max. 18.5 W,3-core terminal block,
PoE: IEEE 802.3at, Class 4, max. 18.5 W
MaterialSUS304
DimensionØ196.0 mm × 134.44 mm (Ø7.72″ × 5.29″)
Package Dimension367 mm × 282 mm × 267 mm (14.4″ × 11.1″ × 10.5″)
Approx. 4.9 kg (10.8 lb.)
With Package WeightApprox. 5.7 kg (12.6 lb.)
Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Cable Lengthunarmored cable:1.15 m (3.77 ft.)

Approval
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015
SafetyCB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
ProtectionIP66: IEC 60529-2013,IP68: IEC 60529-2013,IK10: IEC 62262:2002
Explosion-Proof ProtectionATEX:
II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC T80°C Db
IECEx:
Ex db IIC T6 Gb
Ex tb IIIC T80°C Db
For explosive gas atmospheres, the maximum surface temperature is 85 °C;
For flammable dust atmospheres, the maximum surface temperature is 80 °C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, and Zone 22.
