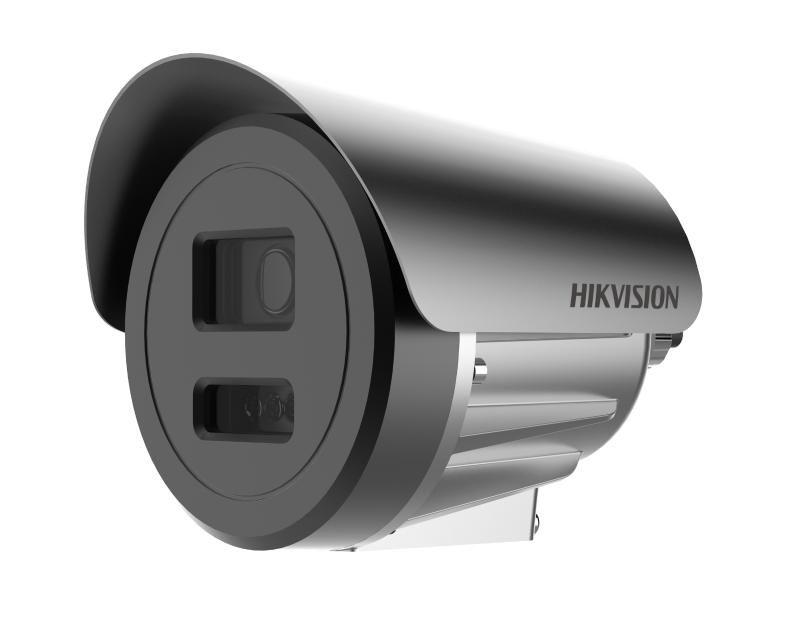

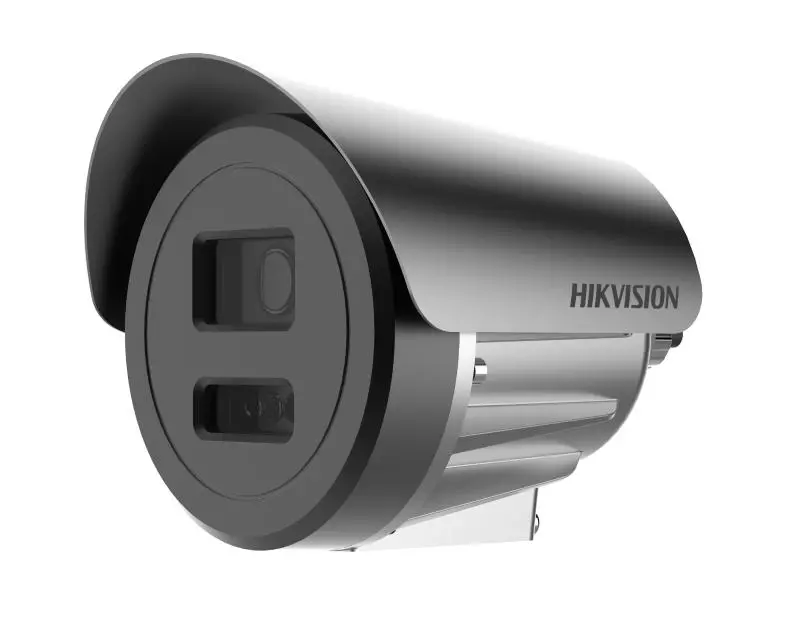

Hikvision DS-2XE6686G0-LIZS(ADC)

Yenilik

Artikul: 4153833efc47

Alüminium ərintili 8MP partlayışa davamlı varifokal Bullet kamera

Partlayışa davamlı konstruksiya: kamera beynəlxalq ATEX & IECEx sertifikatlarından keçib və qazlı və tozlu təhlükəli mühitlərdə istifadə oluna bilər
IP68 suya davamlılıq, açıq məkanda istifadə zamanı suyun daxil olmasının qarşısını alır
H.265+/H.265/H.264+/H.264 kodlaşdırma: səmərəli sıxılma texnologiyası yaddaş sahəsinə qənaət edir və bant genişliyi tələblərini azaldır
Vandalizmə davamlı (IK10)

Bakıya – bu gün
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

ədəd stokda

2 saata çatdırılma

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.005 Lux @ (F1.9, AGC ON),0 Lux with light,B/W: 0.001 Lux @ (F1.9, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter

Lens
Focal Length & FOV2.8 to 12 mm, horizontal FOV 98.0° to 41.8°, vertical FOV 54.4° to 24.0°, diagonal FOV 115.2° to 48.1°

HEOP
Open Resources
Memory: 60 MB,

Smart RAM: 371 MB,

eMMC: 2 GB
Computing Power1.5 TOPS
Open CapabilityHEOP 2.0 OpendevSDK, Basic service, basic media capability, deep learning reasoning acceleration capability
Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
Programming LanguageC,C++,Go

Video
Main Stream
50 Hz：20 fps（3840 × 2160，3072 × 1728，2560 × 1440，1920 × 1080，1280 × 720）

60 Hz：24 fps（3840 × 2160，3072 × 1728，2560 × 1440，1920 × 1080，1280 × 720）
Sub-Stream
50 Hz：20 fps（704 × 576，640 × 480）

60 Hz：24 fps（704 × 480，640 × 480）
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)5 fixed regions for main stream
Target CroppingYes

Audio
Audio TypeMono sound
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC_LC/MP3
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets,RTCP
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS1.2
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters SwitchYes
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger,Video Trigger
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC,HLC,3D DNR,Distortion Correction

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,

*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC, 1 A)
Power Output12 VDC, max. 30 mA

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventUnattended baggage detection, object removal detection,scene change detection,audio exception detection,defocus detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

General
Power
12 VDC ± 20%, 1.1 A, max. 13.2 W,3-core terminal block,

PoE: 802.3at, Class 3, max. 15 W W
MaterialAnodized ADC12
Dimension245.0 mm × 195.4 mm × 184.3 mm (9.65″ × 7.69″ × 7.26″)
Package Dimension430 mm × 250 mm × 275 mm (16.93″ × 9.84″ × 10.83″)
Approx. 3300 g (7.28 lb.)
With Package WeightApprox. 4400 g (9.70 lb.)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Cable Length1.3 m or 5 m (4.26 ft. or 16.40 ft.)

Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015,FCC: 47 CFR Part 15, Subpart B
SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
ProtectionIP68: IEC 60529-2013,IK10: IEC 62262:2002
Explosion-Proof Protection
ATEX: Ex II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68

IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68

For explosive gas atmospheres, the maximum surface temperature is 85 °C;

For flammable dust atmospheres, the maximum surface temperature is 80 °C;

IIC: for explosive gas atmospheres other than mines susceptible to firedamp;

For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
