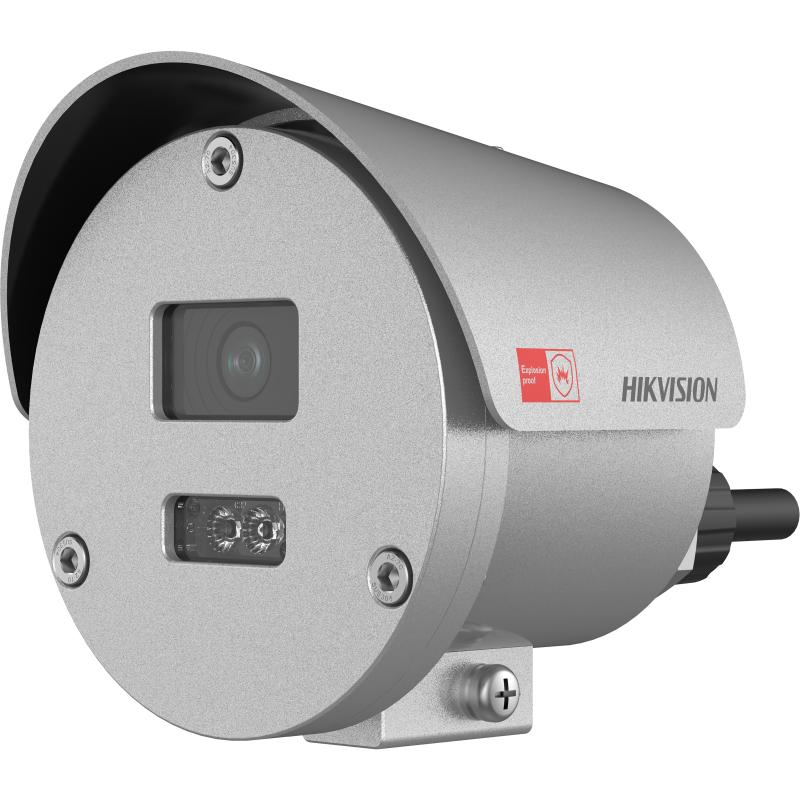

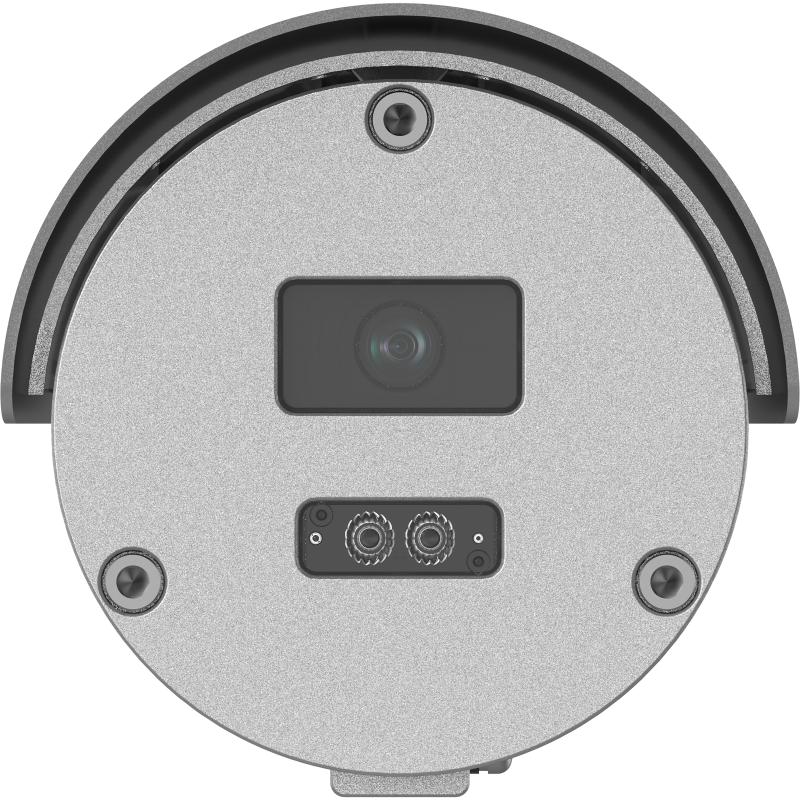

Hikvision DS-2DB4236I-CWX(T5/316L)
316L 2 MP 36x partlayışa davamlı varifokal Bullet kamera
316L 2 MP 36x partlayışa davamlı varifokal Bullet kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/2.7″ Progressive Scan CMOS
- Max. Resolution2560 × 1920
- Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON)
- Shutter Time1/3 s to 1/100,000 s
- Lens
- Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 87°, diagonal FOV 120°
4 mm, horizontal FOV 80°, vertical FOV 64°, diagonal FOV 93°
- Min. Focus Distance
2.8mm: 0.2m
4mm:0.9m
- ApertureF2.0
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 0.25 m
- Video
- Main Stream
50 Hz: 25 fps (2560 × 1920，2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1920，2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Trird-stream：H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)5 fixed region for main stream
- Audio
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, RTCP
- Simultaneous Live ViewUp to 20 channels
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), WSSE and digest authentication for ONVIF,basic and digest authentication for HTTP/HTTPSF, RTP/RTSP over HTTPS, security audit log, control timeout settings
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC, HLC, 3D DNR ，Distortion Correction
- Privacy Mask8 programmable polygon privacy masks
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
- Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input, 1 output (max. 5 VDC, 0.1 A)
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output
- Smart EventUnattended baggage detection, object removal detection,scene change detection,audio exception detection,defocus detection
- Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,white light flashing
- Deep Learning Function
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- Face Capture
Detects up to 10 faces simultaneously,
Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,
Uploads face with background and closed-up face pictures
- General
- Power
PoE: IEEE 802.3af, Class 3, max. 7.5 W,12 VDC ± 20%, 0.5 A, max. 6 W,3-core terminal block
- MaterialSUS316L with anti-corrosion coating
- Dimension157.8 mm × 137.4 mm × 136.5 mm (6.21″ × 5.41″ × 5.37″)
- Package Dimension396 mm × 236 mm × 222 mm (15.59″ × 9.29″ × 9.22″)
- Approx. 2700 g (5.95 lb.)
- With Package WeightApprox. 3400 g (7.50 lb.)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat, mirror, flash log, password reset via e-mail, pixel counter, anti-banding
- Cable Length1.3 m (4.26 ft.)
- Approval
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
- ProtectionIP66: IEC 60529-2013,IP68: IEC 60529-2013,IK10: IEC 62262:2002
- Explosion-Proof Protection
ATEX: Ex II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68
IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68
For explosive gas atmospheres, the maximum surface temperature is 85 °C;
For flammable dust atmospheres, the maximum surface temperature is 80 °C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
