Hikvision DS-2DY8845IXG0-ACXLWF(316L)

Artikul: HC-DS-2DY8845IXG0-ACXLWF(316L)

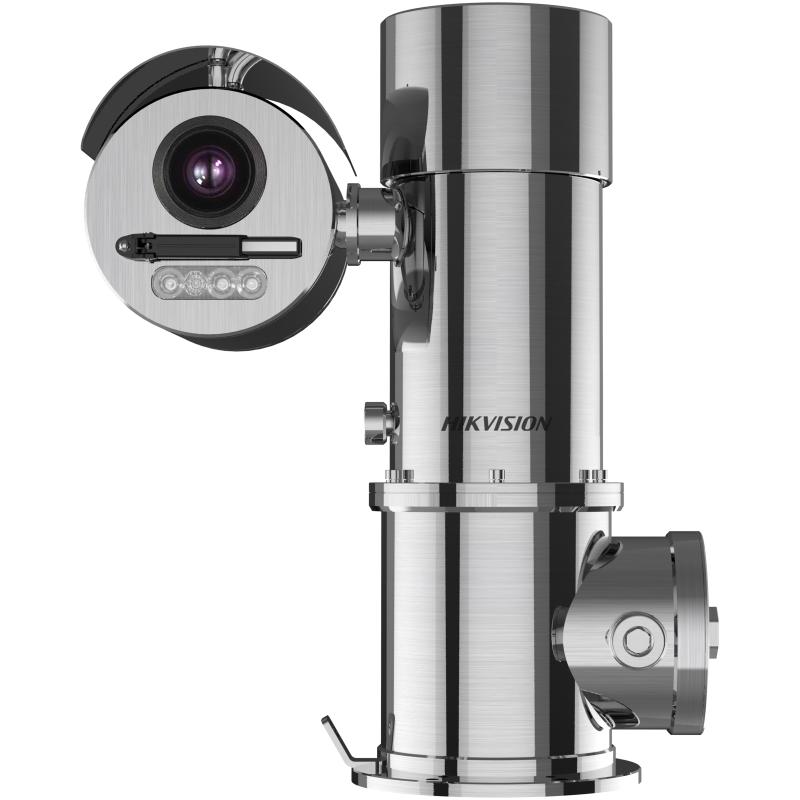

Hikvision DS-2DY8845IXG0-ACXLWF(316L) — 316L 8MP 45x Explosion-proof Network Positioning System with Built-in Junction

Image Sensor: 1/1.8″ Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.005 Lux @ (F1.36, AGC ON),B/W: 0.001 Lux @ (F1.36, AGC ON),0 Lux with IR
Shutter Speed: 1/1 s to 1/30000 s
Day & Night: IR cut filter
Zoom: 45 × optical,16 × digital
Slow Shutter: Yes
Focal Length: 6.9 to 310.5 mm

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.005 Lux @ (F1.36, AGC ON),B/W: 0.001 Lux @ (F1.36, AGC ON),0 Lux with IR
Shutter Speed1/1 s to 1/30000 s
Day & NightIR cut filter
Zoom45 × optical,16 × digital
Slow ShutterYes

Lens
Focal Length6.9 to 310.5 mm
FOVHorizontal field of view: 61° to 2°, vertical field of view: 35.2° to 1.2°, diagonal field of view: 69.2° to 2.3°
FocusAuto,semi-auto,manual
ApertureF1.36
Zoom SpeedApprox. 5.6 s

PTZ
Movement Range (Pan)360° endless
Movement Range (Tilt)-90° to 90°
Pan SpeedPan speed: configurable from 0.1° to 50°/s, preset speed: 50°/s
Tilt SpeedTilt speed: configurable from 0.1° to 40°/s, preset speed 40°/s
Proportional PanYes
Presets300
Preset FreezingYes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D PositioningYes
PTZ Status DisplayYes
Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Power-off MemoryYes

Video
Main Stream50Hz：25fps（3840 × 2160，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
60Hz：30fps（3840 × 2160，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile,Main profile,High profile
H.265 TypeMain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC
Audio Bit Rate64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),8 to 320 Kbps (MP3),16 to 64Kbps (AAC-LC)
Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise FilteringYes

Network
ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE
Simultaneous Live ViewUp to 20 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Smooth StreamingYes
User/HostUp to 32 users. 3 user levels: administrator, operator, and user
SecurityPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.2/1.3,host authentication (MAC address)
Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
ClientiVMS-4200,HikCentral Pro,Hik-Connect
Web BrowserIE11, Chrome 57+, Firefox 52+, Safari 11+

AI Open Platform
Model SpecificationSupports 4 model packages, and each model package supports detecting 16 target types and classfing 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.

Image Parameters SwitchYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switchauto
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
DefogDigital defog
Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
Image EnhancementHLC,BLC,3D DNR
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable

Interface
Ethernet Interface1 RJ45 10/100M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
Alarm7 input(s), 2 output(s)
Power Output12 VDC, max. 1000 mA
Fiber OpticalFC interface, built-in fiber module (100 M, TX1310/RX1550nm wavelength, single module fiber, up to 20 km transmission distance

Event
Basic EventMotion detection,video tampering alarm,exception,alarm input and output
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,smart tracking,audible warning,white light flashing
Smart TrackingManual tracking,auto-tracking

Deep Learning Function
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle)
Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle
Face CaptureDetects up to 10 faces simultaneously,
Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
Road Traffic and Vehicle DetectionBlocklist and allowlist: up to 10,000 records
Captures vehicle that has no license plate
Support license plate recognition of motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

General
Power100 VAC to 240 VAC Max.110 W (Max. 15 W for IR)
Dimension421.6 mm × 374.29 mm × 217.72 mm (16.60″ × 14.74″ × 8.57″)
Approx. 25.5 kg (56.23 lb.)
MaterialElectro-polished 316L Stainless Steel
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
General FunctionAnti-flicker,heartbeat,mirror,flash log,password reset via e-mail,pixel counter,password protection,one-key reset,three streams
WiperYes

Approval
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014),RCM (AS/NZS CISPR 32: 2015)
SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
EnvironmentCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
ProtectionIP68 (IEC 60529-2013),IK10 (IEC 62262:2002)
Explosion-Proof ProtectionATEX: II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68,
IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68,For explosive gas atmospheres, the maximum surface temperature is 85°C;
For flammable dust atmospheres, the maximum surface temperature is 80°C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
