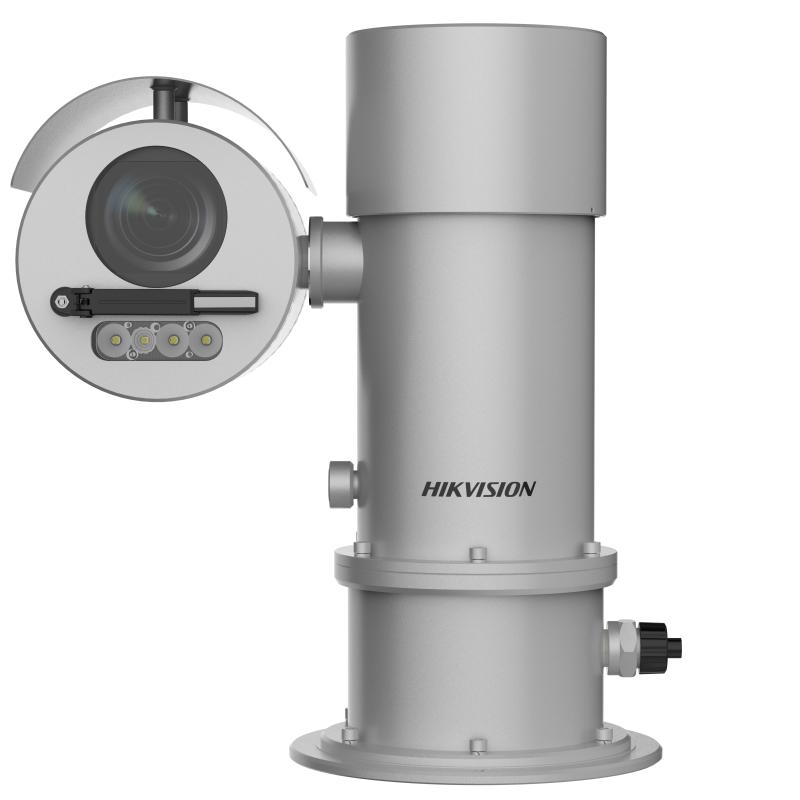

Hikvision DS-2DB4236I-CWX(T5/316L)
316L 2 MP 36x partlayışa davamlı varifokal Bullet kamera
316L 2 MP 36x partlayışa davamlı varifokal Bullet kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),0 Lux with IR
- Shutter Speed1/1 s to 1/30000 s
- Day & NightIR cut filter
- Zoom36 × optical,16 × digital
- Slow ShutterYes
- Lens
- Focal Length6.9 to 248.4 mm
- FOVHorizontal field of view: 60.2° to 2.5°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.7°
- FocusAuto,semi-auto,manual
- ApertureF1.2
- Zoom SpeedApprox. 5.4 s
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeIR distance: up to 200 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)-90° to 90°
- Pan SpeedPan speed: configurable from 0.1° to 50°/s, preset speed: 50°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 40°/s, preset speed 40°/s
- Proportional PanYes
- Presets300
- Preset FreezingYes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
- Power-off MemoryYes
- Video
- Main Stream
50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),
60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline profile,Main profile,High profile
- H.265 TypeMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM
- Audio Bit Rate64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2)
- Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour
- Simultaneous Live ViewUp to 20 channels
- API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- Smooth StreamingYes
- User/HostUp to 32 users. 3 user levels: administrator, operator, and user
- SecurityPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.2/1.3,host authentication (MAC address)
- Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
- ClientiVMS-4200,HikCentral Pro,Hik-Connect
- Web BrowserIE11, Chrome 57+, Firefox 52+, Safari 11+
- AI Open Platform
- Model SpecificationSupported
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night Switchauto
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- DefogDigital defog
- Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
- Image EnhancementHLC,BLC,3D DNR
- Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
- Interface
- Ethernet Interface1 RJ45 10/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
- Alarm7 input(s), 2 output(s)
- Fiber OpticalFC interface, built-in fiber module (100 M, TX1310/RX1550nm wavelength, single module fiber, up to 20 km transmission distance
- Event
- Basic EventMotion detection,video tampering alarm,exception,alarm input and output
- Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,audio exception detection,support alarm triggering by specified target types (human and vehicle)
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,smart tracking,audible warning
- Smart TrackingManual tracking,auto-tracking
- Deep Learning Function
- Face Capture
Detects up to 10 faces simultaneously,
Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
- Road Traffic and Vehicle Detection
Blocklist and allowlist: up to 10,000 records
Captures vehicle that has no license plate
Support license plate recognition of motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)
- General
- Power100 VAC to 240 VAC Max.110 W (Max. 15 W for IR)
- Dimension421.6 mm × 374.29 mm × 217.72 mm (16.60″ × 14.74″ × 8.57″)
- WeightApprox. 25 kg (55.13 lb.)
- MaterialSUS316L stainless steel with anti-corrosion surface spray treatment
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Cable Length1.25 m (4.10 ft.)
- General FunctionAnti-flicker,heartbeat,mirror,flash log,password reset via e-mail,pixel counter,password protection,one-key reset,three streams
- WiperYes
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015)
- SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1)
- EnvironmentCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
- ProtectionIP68 (IEC 60529-2013),IK10 (IEC 62262:2002)
- Explosion-Proof Protection
ATEX: II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68,
IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68,For explosive gas atmospheres, the maximum surface temperature is 85°C;
For flammable dust atmospheres, the maximum surface temperature is 80°C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
