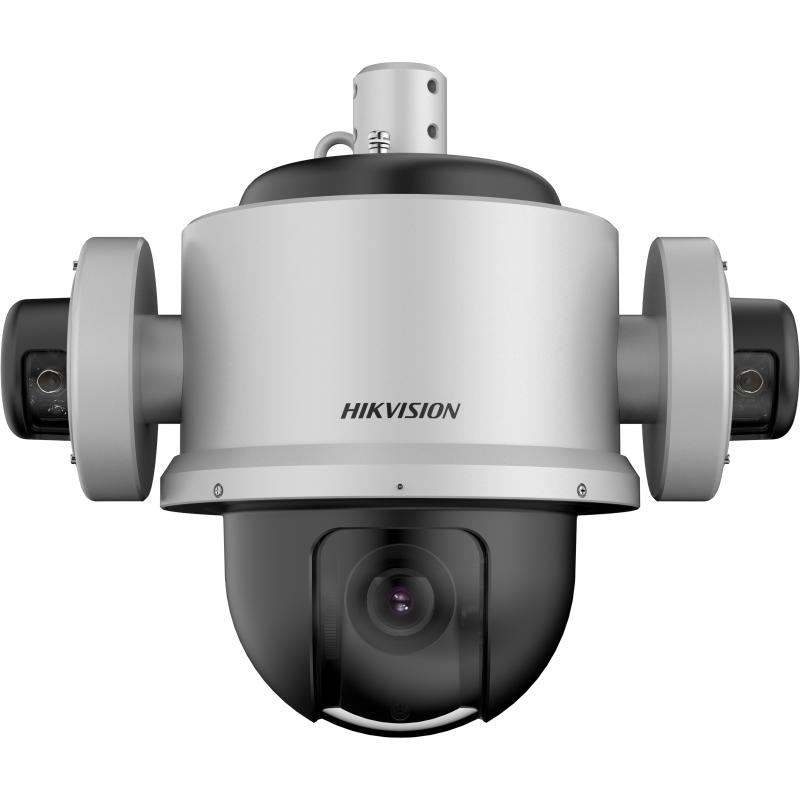

Hikvision DS-2DB4236I-CWX(T5/316L)
316L 2 MP 36x partlayışa davamlı varifokal Bullet kamera
316L 2 MP 36x partlayışa davamlı varifokal Bullet kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/2.8″ progressive scan CMOS
- Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON)
B/W: 0.001 Lux @ (F1.6, AGC ON)
- Shutter Speed1/1 s to 1/30,000 s
- Slow Shutteryes
- Day & NightIR Cut Filter
- Zoom16 × digital,32 × optical
- Max. Resolution2560 × 1440
- Lens
- Focussemi-auto,manual,auto
- Focal Length4.8 mm to 153.6 mm, 32 × optical zoom
- Zoom SpeedApprox. 7 s (Optical Lens, Wide-Tele)
- FOV
Horizontal field of view: 53.3° to 2.6° (wide-tele)
Vertical field of view: 30.6° to 1.5° (wide-tele)
Diagonal field of view: 60.5° to 3° (wide-tele)
- ApertureF1.6
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeIR distance: up to 100 m
- PTZ
- Movement Range (Pan) 360° endless
- Movement Range (Tilt)From 0° to 90° (Auto Flip)
- Pan SpeedConfigurable, from 0.1°/s to 70°/s, preset speed: 70°/s
- Tilt SpeedConfigurable, from 0.1°/s to 50°/s, Preset Speed: 50°/s
- Proportional Panyes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off Memoryyes
- Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- 3D Positioningyes
- PTZ Status Displayyes
- Preset Freezingyes
- Scheduled Taskdome reboot,preset,random scan,patrol scan,dome adjust,pattern scan,tilt scan,panorama scan,frame scan,aux output,auto scan
- Video
- Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Bit Rate32 kbps to 16384 kbps
- H.264 Typemain profile,baseline profile,high profile
- H.265 Typemain profile
- Scalable Video Coding (SVC)yes
- Region of Interest (ROI)yes
- Target Croppingno
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,MP3
- Audio Bit Rate16 Kbps (G.722.1),64 Kbps (G.711),32 to 192 Kbps (MP2L2),16 Kbps (G.726),8 to 48 Kbps (PCM),8 to 320 Kbps (MP3)
- Audio Sampling Rate8 kHz,16 kHz,32 kHz,44.1 kHz,48 kHz
- Environment Noise Filteringyes
- Network
- Web BrowserIE10 to 11, Chrome 57+, Firefox 52+, Safari 12+
- Network StorageNAS (NFS, SMB/ CIFS),ANR
- ProtocolsIPv4/IPv6,PPPoE,UPnP,DHCP,RTP,RTSP,IGMP,ICMP,TCP/IP,FTP,Bonjour,SSL/TLS,HTTP,DDNS,NTP,HTTPS,DNS,WebSocket,WebSockets,UDP,SNMP,QoS,802.1X
- API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 levels: Administrator, Operator and User
- SecurityUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Image
- Day/Night Switchauto
- Image EnhancementBLC,HLC,3D DNR
- Wide Dynamic Range (WDR)120 dB
- Defogyes
- Image StabilizationEIS
- Regional Exposureyes
- Regional Focusyes
- Image Settingssharpness,saturation,brightness,contrast
- Image Parameters Switchyes
- Privacy Maskup to 24 masks
- SNR＞52dB
- Interface
- On-board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB
- RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Fiber OpticalFC interface, built-in fiber module (100 M, TX1310/RX1550nm wavelength, single module fiber, up to 20 km transmission distance)
- Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- Alarm2 input(s), 1 output(s)
- Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
- Event
- Basic Eventalarm input,video tampering alarm,exception,motion detection,alarm output
- Smart Eventintrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
- Smart Trackingmanual tracking,event tracking
- Deep Learning Function
- Face CaptureSupports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
- General
- Dimension427.5 mm × 261 mm × 367.1 mm (16.83″ × 10.28″ × 14.45″)
- MaterialSUS316L stainless steel with anti-corrosion surface spray treatment
- Cable Length1.8 m (5.9 ft.)
- General Functionmirror,password protection,watermark,IP address filter
- Power100 VAC to 240 VAC, Max.: 60 W
- Operating ConditionTemperature: -40°C to 60°C (-40°F to 140°F)，Humidity: ≤ 95%
- Wiperno
- Approx. 16.5 kg (36.38 lb.)
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015)
- SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
- Explosion-Proof Protection
ATEX: II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68,
IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68,For explosive gas atmospheres, the maximum surface temperature is 85°C;
For flammable dust atmospheres, the maximum surface temperature is 80°C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
- ProtectionIP68(2m/2h) (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002)
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
