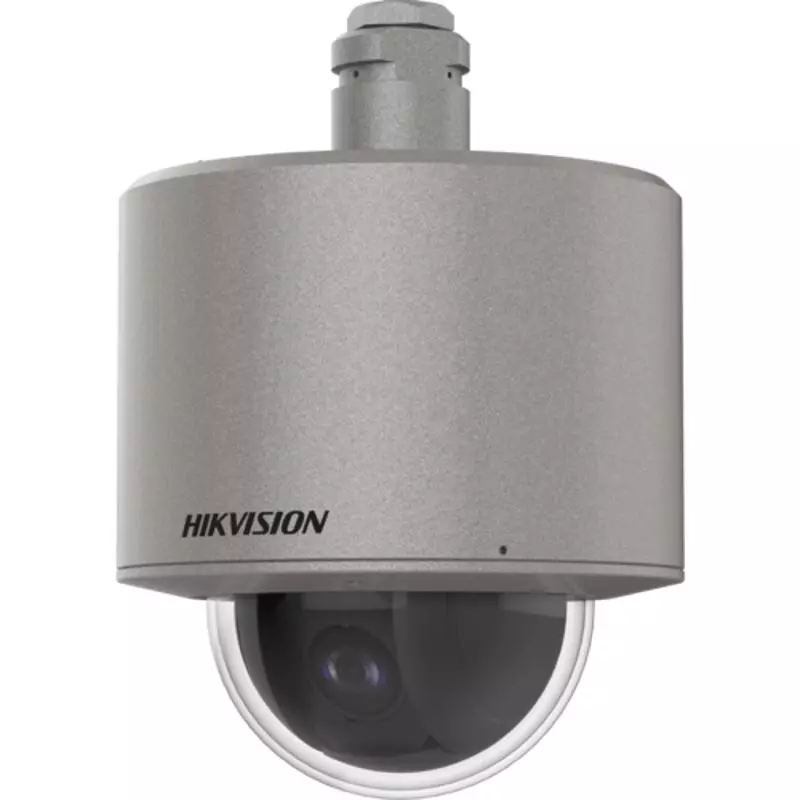

Hikvision DS-2DF4220-DX(S6/316L)

Name: Hikvision DS-2DF4220-DX(S6/316L)
Brand: Hikvision
SKU: HC-DS-2DF4220-DX(S6/316L)
Availability: InStock

Artikul: HC-DS-2DF4220-DX(S6/316L)

ATEX/IECEx sertifikatlı, 316L paslanmayan poladdan korpus, 20x optik zum, 120 dB WDR və H.265 dəstəyi ilə 2 meqapikselli partlayışdan qorunan Speed Dome kamera.

Ex işarəsi: ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db; IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db
316L paslanmayan polad
H.265 video sıxılmasını dəstəkləyir
Sertifikat №: ATEX: SEV 20 ATEX 0415 X; IECEx: IECEx NEP 20.0018X
20× optik zum, fokus məsafəsi 4.8 mm – 96 mm
2 MP 1/2.8″ progressive scan CMOS
120 dB WDR, 3D DNR
Yüksək performanslı sensor ilə yüksək keyfiyyətli görüntü

Texniki pasport

Sürətli çatdırılma

Bakıya – bu gün
Azərbaycan daxilində 1-2 gün

Rəsmi zəmanət

36 aya qədər
istehsalçıdan

100% orijinal

Hikvision-un rəsmi distribyutoru

Texniki dəstək

Avadanlıqların seçilməsi və qurulmasında köməklik

Anbarda var

2 saata çatdırılma

6 056,00 ₼

Hissə-hissə alın

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Müqayisə et

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor1/2.8″ progressive scan CMOS
Max. Resolution1920 × 1080
Min. Illuminationcolor: 0.005Lux @ (F1.6，AGC ON) B/W: 0.001Lux @ (F1.6, AGC ON)
Shutter Speed1/1 s to 1/30000 s
Day & NightICR
Zoom20 × optical, 16 × digital
Slow Shutteryes

Lens
Focal Length4.8 to 96 mm
FOVHorizontal field of view: 57.6° to 3.4°, vertical field of view: 34.4° to 2°, diagonal field of view: 64.5° to 3.9°
FocusAuto,semi-auto,manual
ApertureF1.6
Zoom SpeedApprox. 2.9 s

PTZ
Movement Range (Pan)360° endless
Movement Range (Tilt)0° to 90°,auto flip
Pan SpeedPan speed: configurable from 0.1° to 160°/s, preset speed: 160°/s
Tilt SpeedTilt speed: configurable from 0.1° to 120°/s, preset speed 120°/s
Proportional PanYes
Presets300
Preset FreezingYes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D PositioningYes
PTZ Status DisplayYes
Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Power-off MemoryYes

Video
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile,Main profile,High profile
H.265 TypeMain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream

Network
ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,WebSocket,WebSockets
Simultaneous Live ViewUp to 20 channels
APIOpen-ended API, ISAPI,Hikvision SDK,Third-party management platform,ONVIF
User/HostUp to 32 users. 3 user levels: administrator, operator, and user
SecurityHTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),IP address filter,host authentication (MAC address),Password protection
Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
ClientiVMS-4200,Hik-Connect,iVMS-4500
Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Interface
Ethernet Interface1 RJ45 10/100M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Alarm1 input(s), 1 output(s)

Event
Basic EventMotion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan)
Smart TrackingManual tracking,panorama tracking

General
PowerDC9 V to 12 V, Max. 7 W; PoE
DimensionØ184 mm × 264.2 mm (Ø7.2″ × 10.4″)
Approx. 8 kg (17.64 lb.)
MaterialSUS316L stainless steel with anti-corrosion surface spray treatment
Operating Condition-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
DemistYes

Approval
EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 62368-1),CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
ProtectionIP68 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
Explosion-Proof ProtectionATEX: Ex II 2 G Ex db IIC T6 Gb/Ex II 2 D Ex tb IIIC T80°C Db,IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db,For explosive gas atmospheres, the maximum surface temperature is 85°C;
For flammable dust atmospheres, the maximum surface temperature is 80°C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
