Hikvision iDS-8104AHQXLI-E4

Artikul: HC-iDS-8104AHQXLI-E4

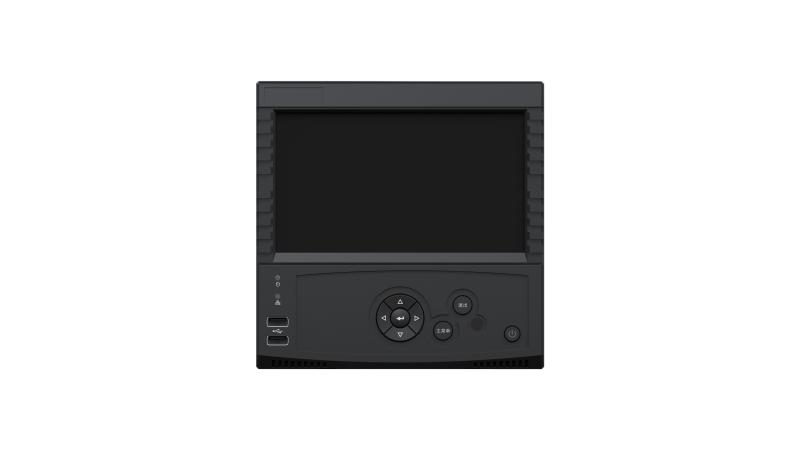

Hikvision iDS-8104AHQXLI-E4 — 4-ch 1080p H.264 ATM DVR

Supported channel: Up to 4-ch panel mode, environment mode, human face mode, and safety cabin,mode together; up to 2-ch human face mode, or up to 2-ch safety cabin mode, or,up to 1-ch human face mode and 1-ch safety cabin mode together. Panel mode,and environment mode can be enabled for all the cameras respectively.
Panel mode: Human entrance, operation timeout, sticking scrip, and installing scanner
Environment mode: Line crossing, region entrance, region exiting, intrusion, loitering, objects removal,or unattended baggage, violent motion, tailing, falling down, and sudden change,of sound intensity
Human face mode: Normal human face, abnormal human face, multiple human faces, wearing,sunglasses, and using mobile phone
Safety cabin mode: Intrusion, object removal or unattended baggage, violent motion, tailing, falling,down, and sudden change of sound intensity
Video compression: H.264+/H.264
Encoding resolution: Main stream:,3 MP@15fps;,1080p/720p/WD1/VGA/4CIF/2CIF/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF/2CIF/CIF/QCIF/QVGA
Frame rate: 25 fps (P) / 30 fps (N),

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Smart ATM
Supported
channelUp to 4-ch panel mode, environment mode, human face mode, and safety cabin,mode together; up to 2-ch human face mode, or up to 2-ch safety cabin mode, or,up to 1-ch human face mode and 1-ch safety cabin mode together. Panel mode,and environment mode can be enabled for all the cameras respectively.
Panel modeHuman entrance, operation timeout, sticking scrip, and installing scanner
Environment
modeLine crossing, region entrance, region exiting, intrusion, loitering, objects removal,or unattended baggage, violent motion, tailing, falling down, and sudden change,of sound intensity
Human face
modeNormal human face, abnormal human face, multiple human faces, wearing,sunglasses, and using mobile phone
Safety cabin
modeIntrusion, object removal or unattended baggage, violent motion, tailing, falling,down, and sudden change of sound intensity

Recording
Video compressionH.264+/H.264
Encoding resolutionMain stream:,3 MP@15fps;,1080p/720p/WD1/VGA/4CIF/2CIF/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF/2CIF/CIF/QCIF/QVGA
Frame rate25 fps (P) / 30 fps (N),
Video bit rate32 Kbps to 10 Mbps
Dual streamSupport
Stream typeVideo, Video & Audio
Audio compressionG.711u
Audio bit rate64 Kbps

Video and Audio
IP video input4-ch (up to 8-ch),
Analog video input4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI/VGA outputHDMI: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz 1920 ×,1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz,VGA: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 ×,768/60 Hz
Audio input4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output2-ch, BNC (Linear, 600 Ω)
Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
Synchronous playback4-ch
HDTVI input3 MP, 1080p30, 1080p25, 720p25, 720p30, 720p50, 720p60,
