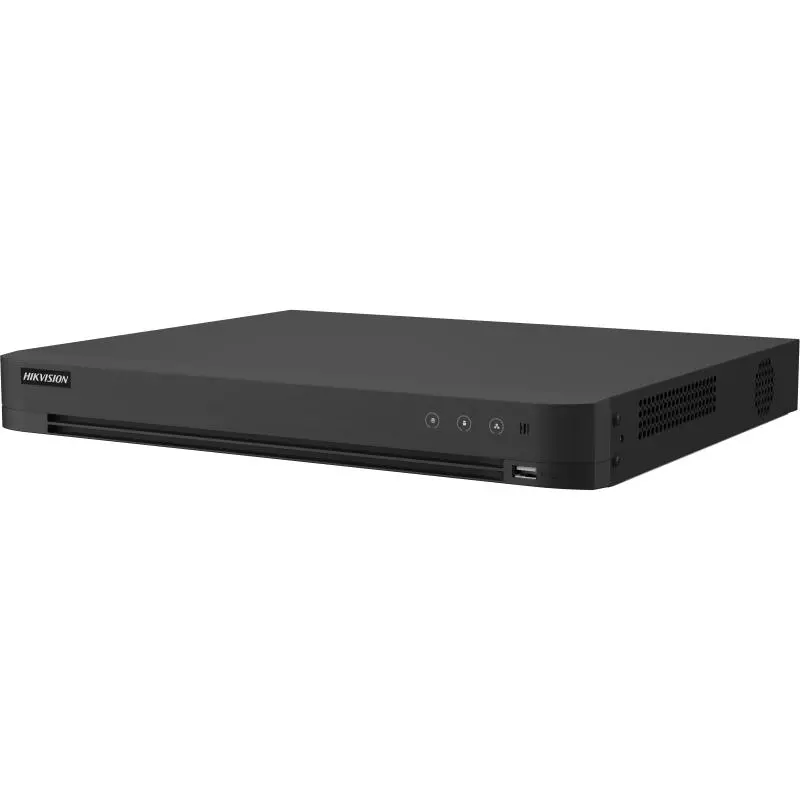

AcuSense POC 4-Kanal 1U 5MP H.265 Video Recorder
AcuSense POC 4-Kanal 1U 5MP H.265 Video Recorder
Sorğu əsasında
Qiymət sorğusu- Intelligent Analytics
- Intelligent Analytics by RecorderMD2.0/Perimeter Protection/Facial detection&Recognition/AcuSearch/SmartSearch
- Multi-Capability Intelligence ModeMD2.0/Perimeter Protection/Facial detection&Recognition/AcuSearch/SmartSearch can be enabled at the same time
- AcuSearch
- AcuSearch by RecorderUp to 32-ch analog cameras
- SmartSearch
- SmartSearch by RecorderUp to 16-ch analog cameras
- Perimeter Protection
- Human/Vehicle AnalysisUp to 16-ch analog cameras
Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable. - Human/Vehicle Analysis by RecorderUp to 16-ch analog cameras
- Facial Detection
- Facial Detection by RecorderUp to 4-ch analog cameras
- Target Recognition
- Facial Recognition by RecorderUp to 4-ch analog cameras
- Face Picture LibraryUp to 16 face picture libraries with 5000 pictures in total
(each picture ≤ 2M, total capacity ≤ 30M)
- Video and Audio
- HDTVI Input3K(3328 x 1504)@20 fps,
3K(2960 x 1664)@25/20 fps,
5 MP(2560 × 1944)@20 fps,
4 MP(2560 × 1440)@25/30 fps,
2K(2304 x 1296)@20 fps,
1080P@25/30 fps,
720P@25/30 fps - AHD Input5 MP(2560 × 1944)@20 fps,
4 MP(2560 × 1440)@25/30 fps,
1080P@25/30 fps,
720P@25/30 fps - HDCVI Input3K(2880 × 1620)@20/25 fps,
5MP(2592 × 1944)@20 fps,
4MP(2560 × 1440)@25/30 fps,
1080P@25/30 fps,
720P@25/30 fps - CVBS InputPAL/NTSC
- Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ) ;
16-ch coaxial audio via BNC - Audio Output1-ch RCA
- Two-Way Audio32-ch two-way audio via BNC ,
Support two-way audio from DVR local, web and Hik-Connect to analog camera;
Use the first RCA audio input if the two-way audio from DVR local to analog camera - Synchronous PlaybackUp to 16-ch
- Video Output1-ch HDMI, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz;
1-ch VGA, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
(HDMI/VGA simultaneous output);
1-ch CVBS (BNC, 1.0 Vp-p, 75 Ω), PAL: 704 × 576, NTSC: 704 × 480 - Analog Camera Input32-ch BNC ports(1.0 Vp-p, 75 Ω), supporting HDTVI/CVI/AHD/CVBS auto-detect
- IP Camera InputUp to 40-ch of IP camera input，each up to 6MP
8-ch by Enhanced-IP + 32-ch (analog channels are converted to IP channels)
- Recording
- Video CompressionAI Encoding/H.265/H.264
- Video Bitrate32 Kbps to 6 Mbps
- Dual-StreamSupport main stream or sub stream
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Encoding CapacityMain stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12 fps; 4 MP lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps
For 5 MP stream access: 5 MP lite@12 fps; 4 MP lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps
For 2K stream access: 2K@10 fps; 1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps
For 4 MP stream access: 4 MP lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12 fps; 2K@10 fps; 4 MP lite@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
- Network
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
- APIONVIF (profile S/G), SDK, ISAPI，ISUP
- Compatible BrowserIE, Chrome, Firefox, Safari, Edge
- Ports
- SATA2 SATA interface, up to 12 TB capacity for each disk
- Serial Interface1 RS-485 (half-duplex)
- Alarm In/OutN/A (optional to support)
- HDMI1-ch
- VGA1-ch
- Audio In1-ch (up to 16-ch is optional) RCA (2.0 Vp-p, 1 KΩ)；
16-ch via coaxial cable - Audio Out1-ch, RCA (Linear, 1 KΩ)
- Network Port1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
- USB InterfaceFront panel: 1 × USB 2.0;
Rear panel: 1 × USB 3.0
- General
- Power Supply12 VDC, 5 A
- Consumption≤ 60 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- InstallationDesktop
- Net Weight< 3.0 kg
- Gross Weight< 4.5 kg
- Product Dimensions384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
- Packaging Dimensions435 × 387 × 129 mm (17.1 × 15.2 × 5.0 inch)
- Packaging Method A pack of four
- Packing ListDVR *1
Quick Start Guide *1
Adapter and Power cable*1
Mouse *1
SATA Power cable *1
SATA Data cable *2
Power cable*1
Several Screws
- Certification
- CECE-LVD,
CE-EMC - Obtained CertificationCB,
IC,
RCM,
LOA
