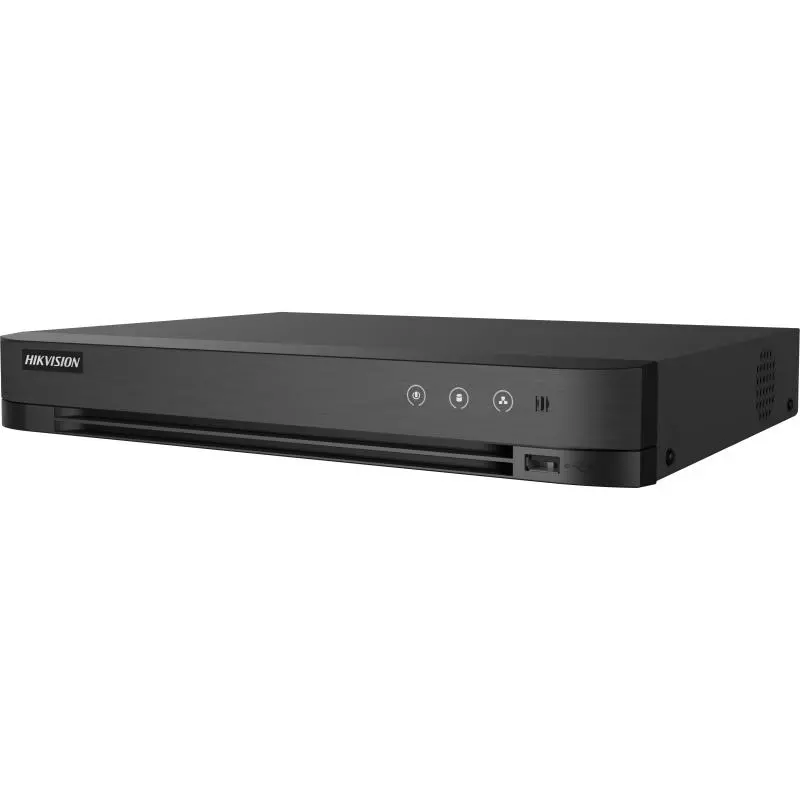

Hikvision iDS-7204HUHI-M1/FA

Face Picture Library

Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)

Face Picture Comparison

Face picture comparison, face picture search;;1-ch face picture comparison alarm (HD analog camera)

Human/Vehicle Analysis

Up to 4-ch

IP Video Input

2-ch (up to 6-ch);Up to 8 MP resolution;IP enhanced mode on: ;4-ch (up to 8-ch), each up to 4 Mbps;Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output

1-ch, 2K (2560 × 1440)/60Hz,;1920 × 1080/60Hz, ;1280 × 1024/60Hz, ;1280 × 720/60Hz;HDMI/VGA simultaneous output

VGA Output

1-ch, 1920 × 1080/60Hz, ;1280 × 1024/60Hz, ;1280 × 720/60Hz;HDMI/VGA simultaneous output

CVBS Input

PAL/NTSC

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),;resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous Playback

4-ch

HDTVI Input

8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input

5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input

8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

Main stream: ;8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps;1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N);*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.;Sub-stream: ;WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate

32 Kbps to 10 Mbps

Dual-stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Total Bandwidth

96 Mbps

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Remote Connection

32

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

SATA

1 SATA interface

Capacity

up to 10 TB capacity for each disk

Serial Interface

RS-485 (half-duplex)

USB Interface

Front panel: 1 × USB 2.0;;Rear panel: 1 × USB 2.0

Alarm In/Out

N/A

Power Supply

12 VDC, 1.5 A

Consumption

≤ 10 W

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inch)

Weight

≤ 1.16 kg (2.6 lb)
