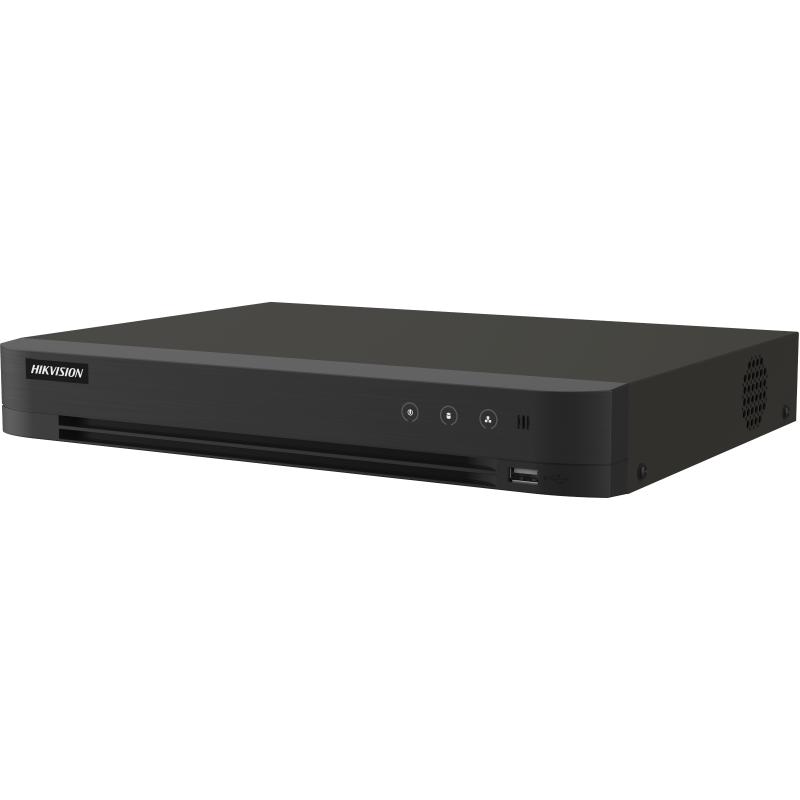

AcuSense POC 4-Kanal 1U 5MP H.265 Video Recorder
AcuSense POC 4-Kanal 1U 5MP H.265 Video Recorder
Sorğu əsasında
Qiymət sorğusu- Intelligent Analytics
- Intelligent Analytics by RecorderMD2.0/Perimeter Protection/Facial detection&Recognition/AcuSearch/SmartSearch
- Multi-Capability Intelligence ModeMD2.0/Perimeter Protection/Facial detection&Recognition/AcuSearch/SmartSearch can be enabled at the same time
- AcuSearch
- AcuSearch by RecorderUp to 4-ch analog cameras
- SmartSearch
- SmartSearch by RecorderUp to 2-ch analog cameras
- Perimeter Protection
- Human/Vehicle AnalysisUp to 2-ch analog cameras
Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable. - Human/Vehicle Analysis by RecorderUp to 2-ch analog cameras
- Facial Detection
- Facial Detection by RecorderUp to 1-ch analog cameras
- Target Recognition
- Face Picture LibraryUp to 16 face picture libraries with 5000 pictures in total
(each picture ≤ 2M, total capacity ≤ 30M) - Facial Recognition by RecorderUp to 1-ch analog cameras
- Motion Detection 2.0
- Human/Vehicle AnalysisUp to 4-ch analog cameras
- Video and Audio
- Analog Camera Input4-ch BNC ports(1.0 Vp-p, 75 Ω), supporting HDTVI/CVI/AHD/CVBS auto-detect
- HDTVI Input3K(3328 x 1504)@20 fps,
3K(2960 x 1664)@25/20 fps,
5 MP(2560 × 1944)@20 fps,
4 MP(2560 × 1440)@25/30 fps,
2K(2304 x 1296)@20 fps,
1080P@25/30 fps,
720P@25/30 fps - AHD Input5 MP(2560 × 1944)@20 fps,
4 MP(2560 × 1440)@25/30 fps,
1080P@25/30 fps,
720P@25/30 fps - HDCVI Input3K(2880 × 1620)@20/25 fps,
5MP(2592 × 1944)@20 fps,
4MP(2560 × 1440)@25/30 fps,
1080P@25/30 fps,
720P@25/30 fps - CVBS InputPAL/NTSC
- IP Camera InputUp to 6-ch of IP camera input，each up to 6MP
2-ch by default + 4-ch (analog channels are converted to IP channels) - Video Output1-ch HDMI, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz;
1-ch VGA, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
(HDMI/VGA simultaneous output);
1-ch CVBS (BNC, 1.0 Vp-p, 75 Ω), PAL: 704 × 576, NTSC: 704 × 480 - Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ);
4-ch coaxial audio via BNC - Audio Output1-ch RCA
- Two-Way Audio 4-ch two-way audio via BNC ,
Support two-way audio from DVR local, web and Hik-Connect to analog camera;
Use the first RCA audio input if the two-way audio from DVR local to analog camera - Synchronous PlaybackUp to 4-ch
- Recording
- Video CompressionAI Encoding/H.265/H.264
- Encoding CapacityMain stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12 fps; 4 MP lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps
For 5 MP stream access: 5 MP lite@12 fps; 4 MP lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps
For 2K stream access: 2K@10 fps; 1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps
For 4 MP stream access: 4 MP lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12 fps; 2K@10 fps; 4 MP lite@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) - Video Bitrate32 Kbps to 6 Mbps
- Dual-StreamSupport main stream or sub stream
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
- APIONVIF (profile S/G), SDK, ISAPI, ISUP
- Compatible BrowserIE, Chrome, Firefox, Safari, Edge
- Ports
- SATA1 SATA interface, up to 10 TB capacity for each disk
- Serial Interface1 RS-485 (half-duplex)
- USB InterfaceFront panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0 - Alarm In/OutN/A (optional to support)
- VGA1-ch
- Audio In1-ch (up to 4-ch is optional) RCA (2.0 Vp-p, 1 KΩ);
4-ch via coaxial cable - Audio Out1-ch, RCA (Linear, 1 KΩ)
- Network Port1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- HDMI1-ch
- General
- InstallationDesktop
- Net Weight≤ 1.5 kg
- Gross Weight≤ 2 kg
- Product Dimensions319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inch)
- Packaging Dimensions420 × 297 × 83 mm (16.5 × 11.7 × 3.3 inch)
- Packaging Method A pack of eight
- Packing ListDVR *1
Quick Start Guide *1
Adapter and Power cable*1
Mouse *1
SATA Power cable *1
SATA Data cable *2
Several Screws - Power Supply12 VDC, 1.5 A
- Consumption≤ 18 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Certification
- CECE-LVD,
CE-EMC - Obtained CertificationCB,
IC,
RCM,
LOA
