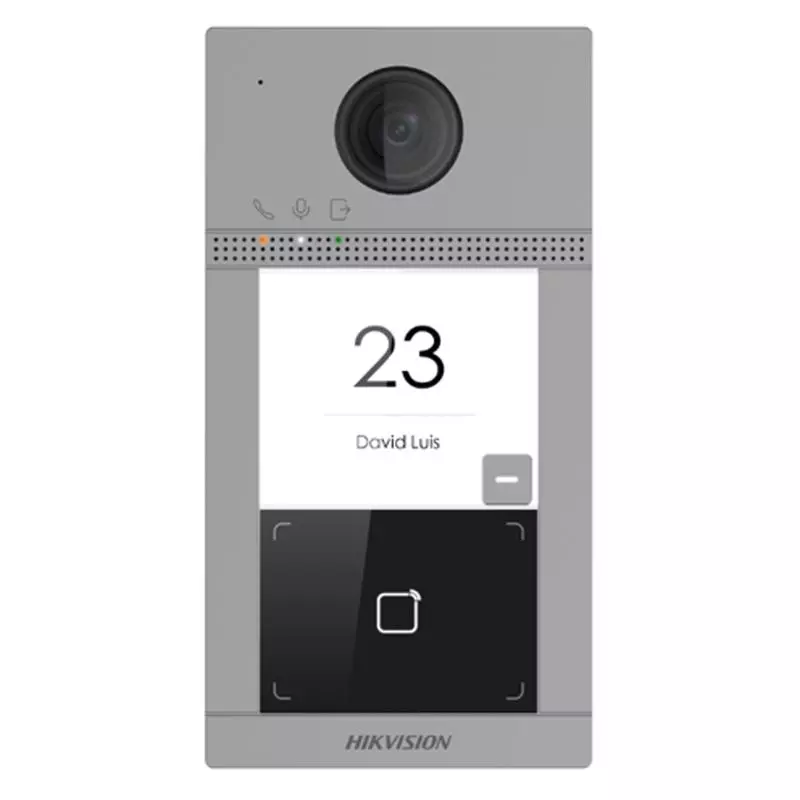

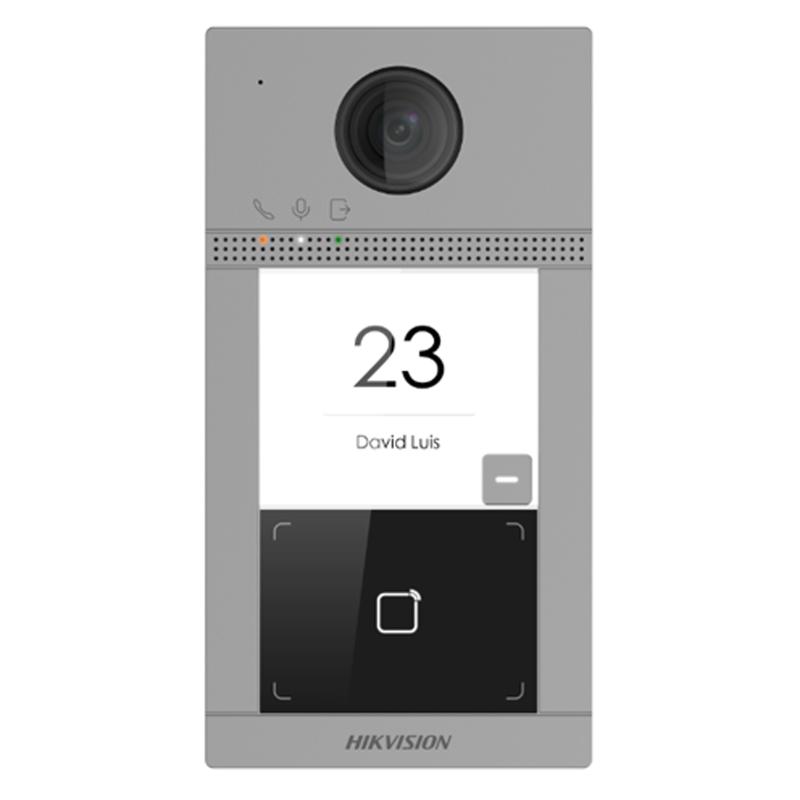

Hikvision DS-KV8113-WME1(C)/Flush

Operation system

Linux

ROM

32 MB

RAM

256 MB

Processor

Embeded high performance processor

Screen size

/

Operation method

/

Type

/

Resolution

/

Lens

1

Resolution

Main stream:1920 × 1080p and 1280 × 720p;Sub stream: 640 × 480p

FOV

Horizontal: 124° Vertical: 75°

Wide dynamic range (WDR)

Digital WDR/76.9 dB

Supplement light

IR light, up to 3 m

Video compression standard

H.264

Audio input

1 built-in omnidirectional microphone

Audio compression standard

G.711 U, G.711 A

Audio output

1 built-in loudspeaker

Audio compression bitrate

64 Kbps

Audio quality

Noise suppression and echo cancellation

Volume adjustment

Adjustable

User capacity

2000

Card capacity

10000

Linked indoor station capacity

1 (main indoor station)

Sub door station capacity

16

Network protocol

TCP/IP, RTSP

Wi-Fi

IEEE802.11b, IEEE802.11g, IEEE802.11n

Bluetooth

/

3G/4G

/

Received frequency

2.4 to 2.4835 GHz

Transmitted frequency

2.4 to 2.4835 GHz

Bandwidth

20/40 MHz

Frequency power

802.11b:15 dBm +/- 1.5 dBm;802.11g:15 dBm +/- 1.5 dBm;802.11n(ht20):14 dBm +/- 1.5 dBm;802.11n(ht40):12 dBm +/- 1.5 dBm

Card reading frequency

13.56 MHz

Alarm input

4

Network interface

1 RJ-45, 10/100 Mbps self-adaptive

TAMPER

1

Exit button

2

RS-485

1

USB

/

Wiegand

/

TF card

Reserved

Alarm output

/

Lock control

2 relays, Max. 30 VDC 2 A

Door contact input

2

Button

1 physical button

Installation

Flush mounting

Indicator

3

Weight

Net weight: 0.350kg;Gross weight:0.687 kg

Protective level

IP65, IK08

Working temperature

-40 °C to 53 °C(-40 °F to 127.4 °F)

Working humidity

10% to 95% (no-condensing)

Dimension (W × H × D)

174 mm × 91 mm × 29 mm (6.9″ × 3.6″ × 1.1″)

Battery

/

Application environment

Outdoor

Power consumption

＜ 10 W

Language

English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
